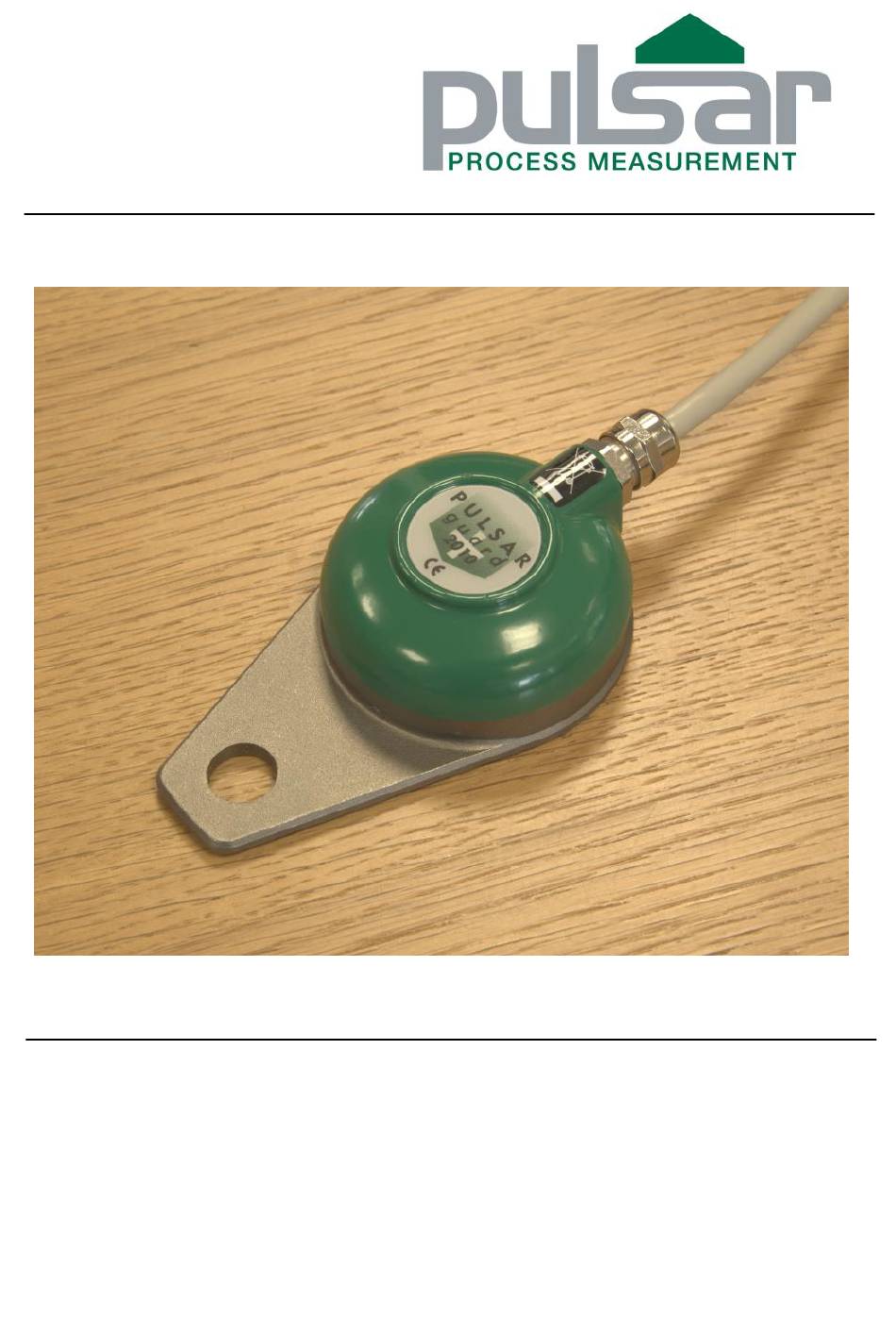

- Page 1 Pulsarguard 201x Series NSTRUCTION ANUAL...
- Page 2 ARRANTY AND IABILITY Pulsar Process Measurement Limited guarantee for a period of 2 years from the date of delivery that it will either exchange or repair any part of this product returned to Pulsar Process Measurement Limited if it is found to be defective in material or workmanship, subject to the defect not being due to unfair wear and tear, misuse, modification or alteration, accident, misapplication or negligence.
-
Page 4: Table Of Contents
Contents Chapter 1 Start Here… ............................ 1 About this Manual ............................1 About the Pulsarguard 201x series ......................... 2 General Description ..........................2 Product Range ............................3 Options ..............................3 Approvals ..............................4 Construction ............................. 5 Product Specification............................6 Physical ..............................6 Mounting .............................. -
Page 7: Chapter 1 Start Here
Chapter 1 Start Here… Congratulations on your purchase of a Pulsarguard 201x sensor. This quality product has been developed over many years and represents the latest in ultrasonic monitoring technology. It has been designed to give you years of trouble-free performance, and a few minutes spent reading this operating manual will ensure that your installation is as simple as possible. -
Page 8: About The Pulsarguard 201X Series

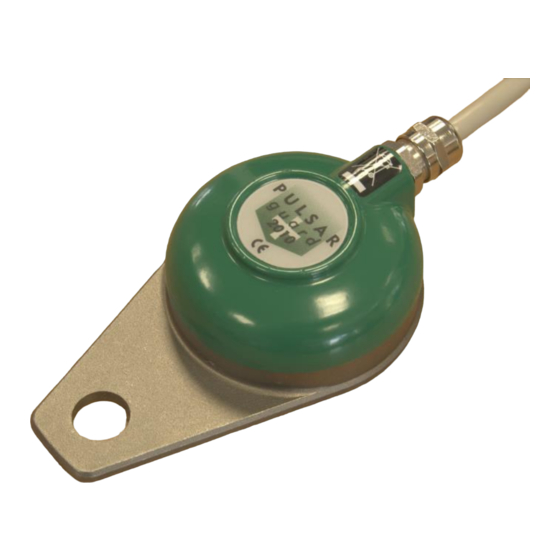

About the Pulsarguard 201x series General Description Pulsarguard 2010 (green) and 2011 (blue, hazardous area approved) The 201x series sensor uses state of the art soundwave technology to detect change in structure borne acoustic emissions from equipment and materials in motion. The sensor listens to the high frequency sound generated by impacts, cavitation and friction within a system. -
Page 9: Product Range
Product Range `Product Name Comment Standard version PULSARguard 2010 High temperature version -40 C to +125 C. Identified by PULSARguard 2010HT “HT” stamped on mounting tab. Suitable for use with Zener barriers only (Certificate No. PULSARguard 2011Z Sira 04ATEX2121X). This system requires connection to an intrinsically safe earth. -
Page 10: Approvals
Approvals CE approval on all versions PULSARguard 201x series sensors (Certificate of Conformity available on request). PULSARguard 201x series sensor housing rated to IP68 / NEMA 4. ATEX Intrinsically safe certificates held for PULSARguard 2011 sensors to: EEx ia IIC T6 T = -20 C to 40... -
Page 11: Construction
Construction Rugged two part housing in cast Type 316 stainless steel. Cap casting is polyester powder coated, in Green RAL 6029. (Cornflower Blue on both PULSARguard 2011 versions). Neoprene O-ring (Viton in PULSARguard 2010HT). Electronics on a double sided Surface Mount PCB encapsulated in an epoxy potting compound inside cap casting. -
Page 12: Product Specification
Product Specification Physical Dimensions overall 125 (long) x 31 (height) x 65 (wide) mm Weight Nominal 0.5 kg (excluding cable) Case material/description Type 316 Stainless Steel (investment casting) Mounting 14mm hole in tab, suitable for 12mm or ½” threaded fixing Environmental IP Rating (electronics housing) IP68... -
Page 13: Outputs
Outputs Analogue output 0-10 VDC. Supply Power supply 23 to 30VDC (Hazardous area versions 24 to 26V via suitable galvanic or Zener barriers) Current Consumption Typically 15mA Page 7... - Page 14 This page left blank intentionally Page 8...
-
Page 15: Chapter 2 Installation
Chapter 2 Installation Sensor Positioning Sensor Positioning It is important that the sensor is sited correctly for each application. The sensor must be installed near to where the acoustic energy is being generated. The stainless steel housing has a tab with a 14mm hole through it, this is for mounting the 201x, but it is also to hold the transducer in intimate contact with the process being monitored. -
Page 16: Power Supply Requirements
Power Supply Requirements The standard 2010 and HT version run on 24VDC and draw approx. 15mA. A suitable DC supply will be required. The 2011Z or G are a hazardous area product and certified to be used in Zone 0, therefore it must be supplied via a suitable 28V safety barrier, either zener or galvanic. -
Page 17: Instructions Specific To Hazardous Area Installations
Instructions specific to hazardous area installations Hazardous area version (blue) (Reference European ATEX Directive 2014/34/EU, Annex II, 1.0.6.) The following instructions apply to equipment covered by certificate number Sira 04ATEX2121X: The equipment may be used with flammable gases and vapours with apparatus groups IIC, IIB, and IIA with temperature classes;... -
Page 18: Identification
The certificate number has an ‘X’ suffix that indicates that the following special condition of certification applies; When the equipment circuits are earthed (screen connected version, Type ‘G’), it shall only be supplied from galvanic isolating barriers. Because non-conductive plastic materials are used on the surface of the equipment (i.e. - Page 19 Page 13...
- Page 20 This page left blank intentionally Page 14...
-
Page 21: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY Pulsar Process Measurement Ltd. Pulsar Process Measurement Ltd. Declares under our sole responsibility that the product(s) listed below conform with the relevant provisions of directive 2014/34/EU of 29th March 2014. Product(s): Pulsarguard 2011G and Pulsarguard 2011Z Sensor...
