Premier designs WindGarden 26822 Assembly Instructions

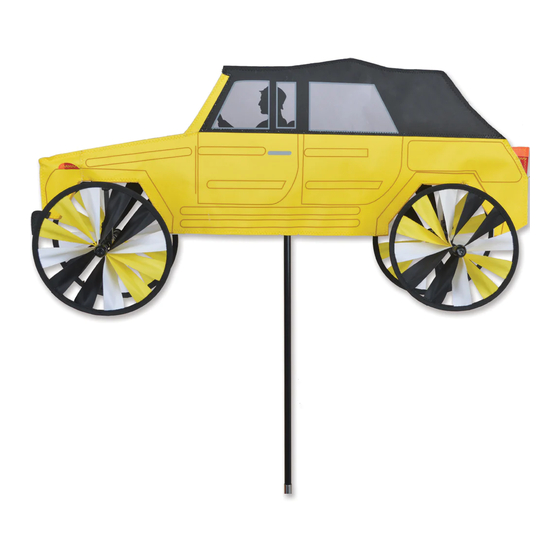

Yellow VW Thing Spinner
assembly
instructions
sku #26822
Completed Internal Strut Assembly.
Make sure all parts connect as shown.
Star Lock Hub
Rear Strut Assembly
Front Strut Assembly
(Internal Body
Star Lock Hub
will have to be
Struts)
connected to
Internal Body Struts
Body Sleeve
Body Sleeve
Push Star Lock Hub rmly
Velcro
onto Plastic Tip of Support Pole
Seam
NOTE: To make insertion process
Plastic Tip of Support Pole
easier, place bottom of Support Pole
on a hard, at surface and push
down on Star Lock Hub.
Support Pole
Step 1
Remove your Yellow VW Thing Spinner from the package. The Strut Assembly is shipped in three sections. Open the Velcro seam along the
bottom of the VW. Connect the Rod of the Front Strut Assembly to the Star Lock Hub of the Internal Rear Strut Assembly. (Diagram A)
Step 2
Slide the narrow, plastic tipped end of the Support Pole into Star Lock Hub. Push down on the hub until the Support Pole locks into place
and cannot be removed. Close Velcro Seam. (Diagram B)
