Lighthouse
assembly
instructions
sku #22362
Completed Internal Strut Assembly.
Make sure all parts connect as shown.
Internal Strut Assembly
Lighthouse body
Small opening
Ferrule
Support Pole
Step 1

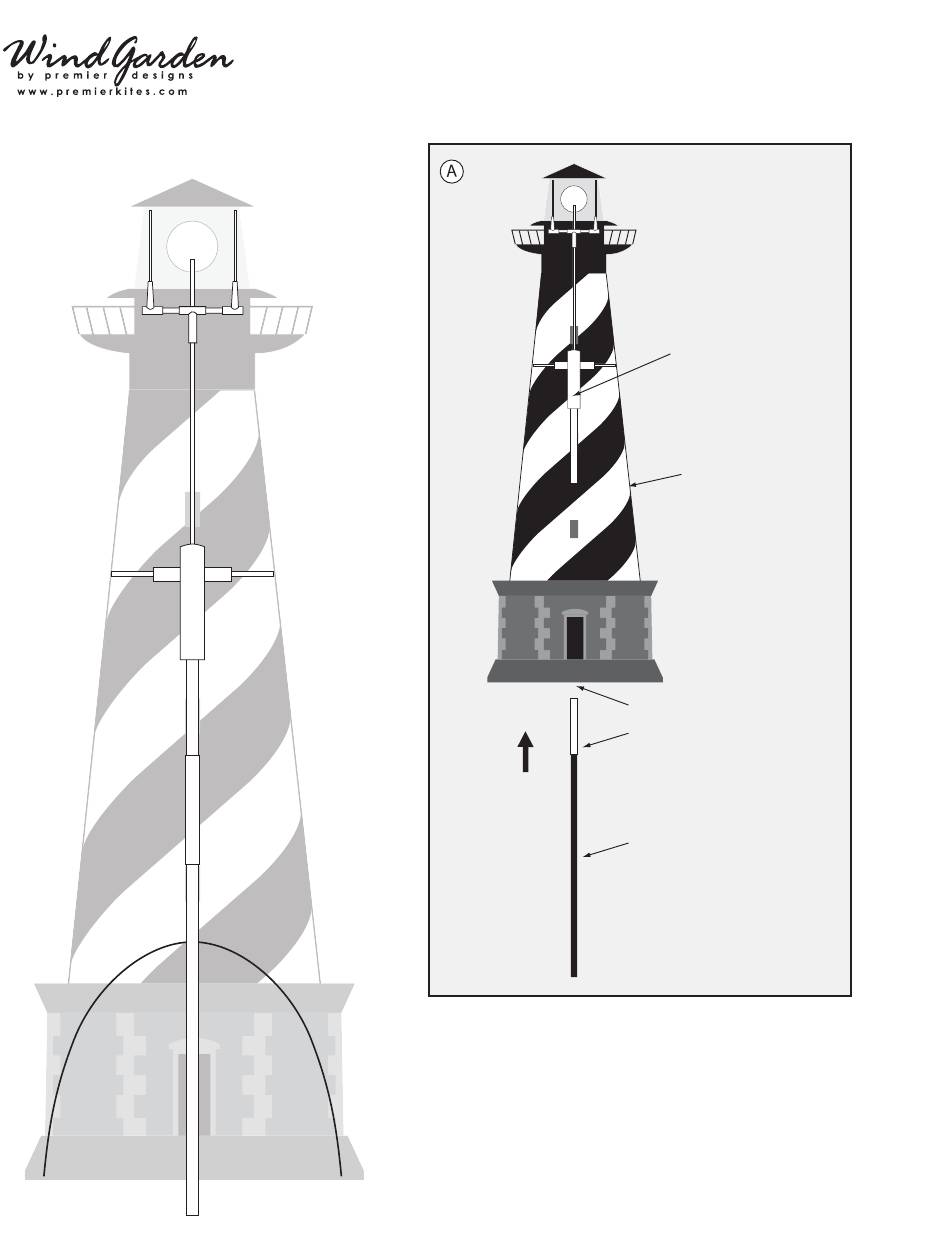

The Strut Assembly of your Lighthouse spinner is shipped in two sections. Connect
support pole (with ferrule end up) to internal strut assembly through small opening
in the bottom of the Lighthouse body as shown. (diagram A)
