WindGarden
b y
p r e m i e r
d e s i g n s

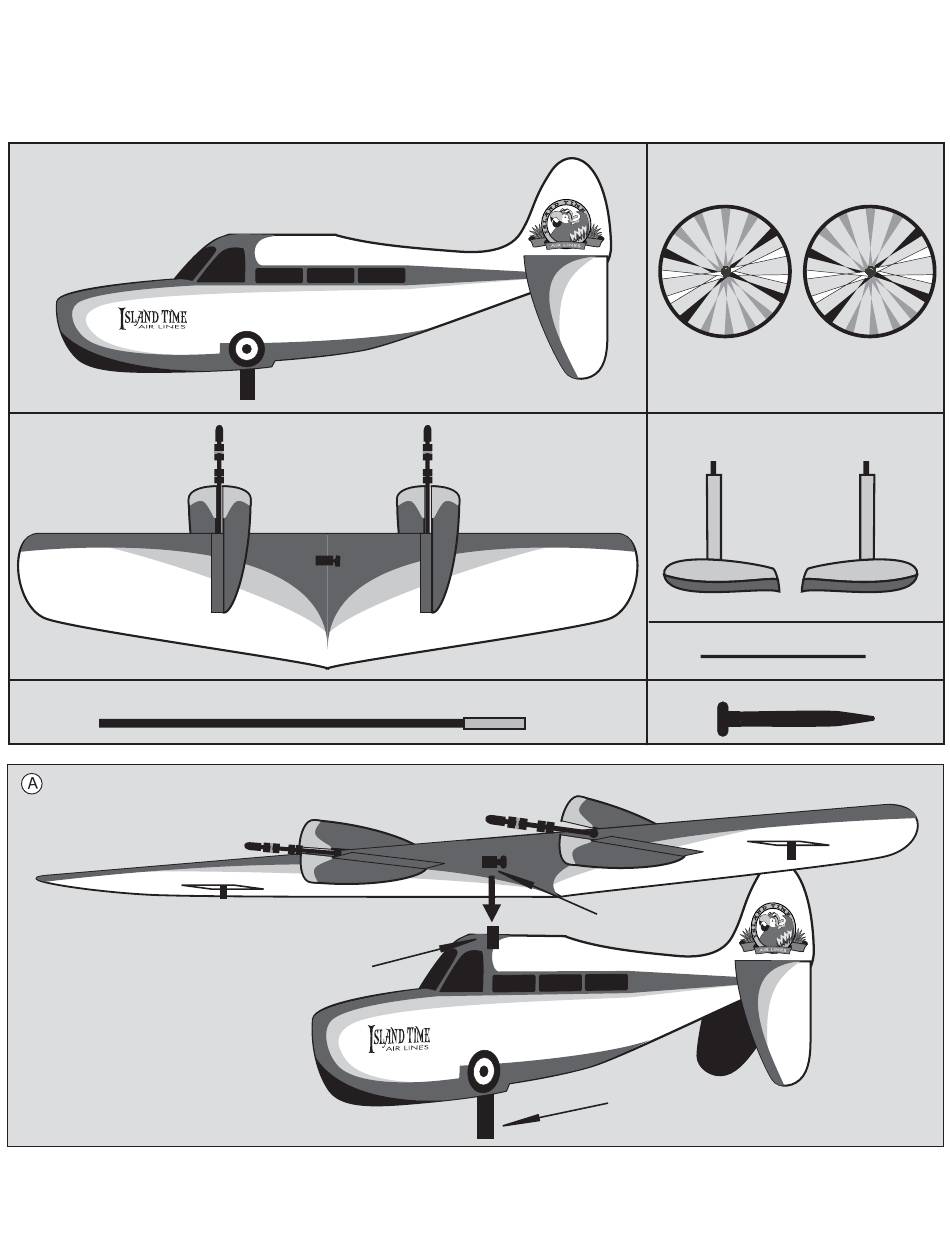

Plane Fuselage x 1
Wing with
(2) Engine Cowlings x 1
Support Pole x 1
Step 1
Slide the wing "T" Fitting Thumb Screw onto the Internal Vertical Support Rod. Be sure to tighten the Wing "T" Fitting Thumb Screw to secure the wing to the
fuselage. Make sure the wing is fully seated on the Vertical Support Rod. Make sure the engine cowlings are perpendicular to the wing. (diagram A)

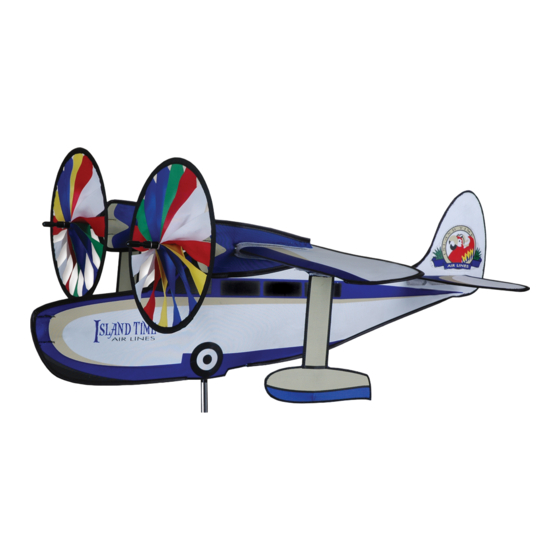

Island Hopper Airplane Spinner
Vertical Support Rod
Spinner Propeller x 2
Pontoons x 2
Stabilizer Cross Strut x 1
Ground Stake x 1
"T" Fitting Thumb
Screw
Main
Fuselage Hub
assembly
instructions
Advertisement
Table of Contents
Related Manuals for Premier designs Wind Garden 26308
Summary of Contents for Premier designs Wind Garden 26308
- Page 1 WindGarden p r e m i e r d e s i g n s Island Hopper Airplane Spinner assembly instructions Spinner Propeller x 2 Plane Fuselage x 1 Wing with Pontoons x 2 (2) Engine Cowlings x 1 Stabilizer Cross Strut x 1 Ground Stake x 1 Support Pole x 1 “T”...
- Page 2 Velcro Tab Pontoon for Pontoon Plastic Fitting Pontoon Pontoon Step 2 Insert the Pontoon struts into the two plastic fittings on wither side of the wing. Secure the Pontoons onto the under side of the wing with the Velcro tabs. (diagram B) Step 4 Remove the plastic end caps...
