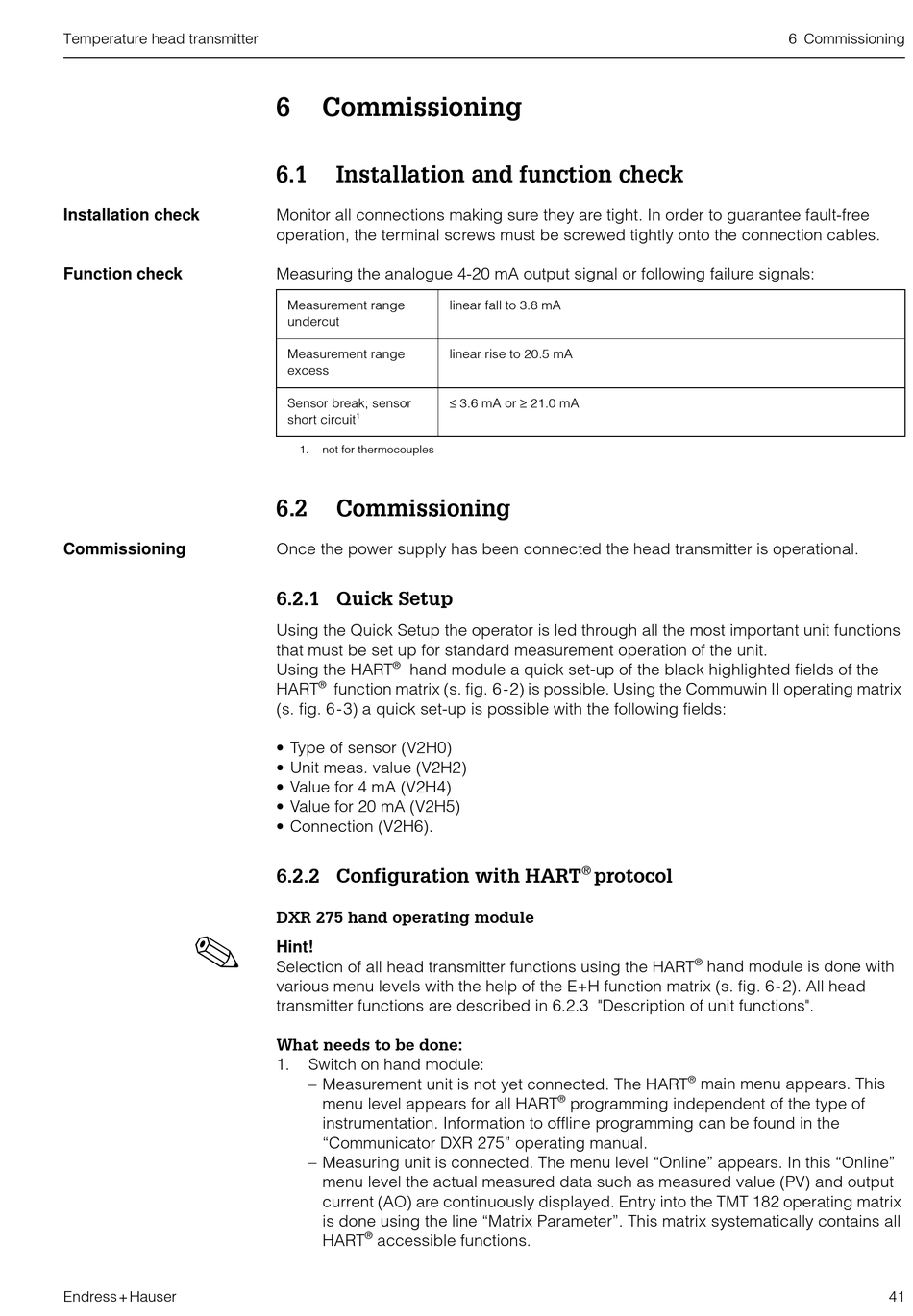

6 Commissioning
6.1

Installation and function check

Monitor all connections making sure they are tight. In order to guarantee fault-free
operation, the terminal screws must be screwed tightly onto the connection cables.
Measuring the analogue 4-20 mA output signal or following failure signals:
Measurement range
undercut
Measurement range
excess
Sensor break; sensor
1
short circuit
1. not for thermocouples
6.2 Commissioning
Once the power supply has been connected the head transmitter is operational.

6.2.1 Quick Setup

Using the Quick Setup the operator is led through all the most important unit functions
that must be set up for standard measurement operation of the unit.
®
Using the HART hand module a quick set-up of the black highlighted fields of the
®
HART function matrix (s. fig. 6-2) is possible. Using the Commuwin II operating matrix
(s. fig. 6-3) a quick set-up is possible with the following fields:
• Type of sensor (V2H0)
• Unit meas. value (V2H2)
• Value for 4 mA (V2H4)
• Value for 20 mA (V2H5)
• Connection (V2H6).
6.2.2 Configuration with HART
DXR 275 hand operating module
Hint!
Selection of all head transmitter functions using the HART
various menu levels with the help of the E+H function matrix (s. fig. 6-2). All head
transmitter functions are described in 6.2.3 "Description of unit functions".
What needs to be done:
1. Switch on hand module:
– Measurement unit is not yet connected. The HART
menu level appears for all HART
instrumentation. Information to offline programming can be found in the
"Communicator DXR 275" operating manual.
– Measuring unit is connected. The menu level "Online" appears. In this "Online"
menu level the actual measured data such as measured value (PV) and output
current (AO) are continuously displayed. Entry into the TMT 182 operating matrix
is done using the line "Matrix Parameter". This matrix systematically contains all
®
HART accessible functions.
linear fall to 3.8 mA
linear rise to 20.5 mA
≤ 3.6 mA or ≥ 21.0 mA
®
protocol
®
programming independent of the type of
