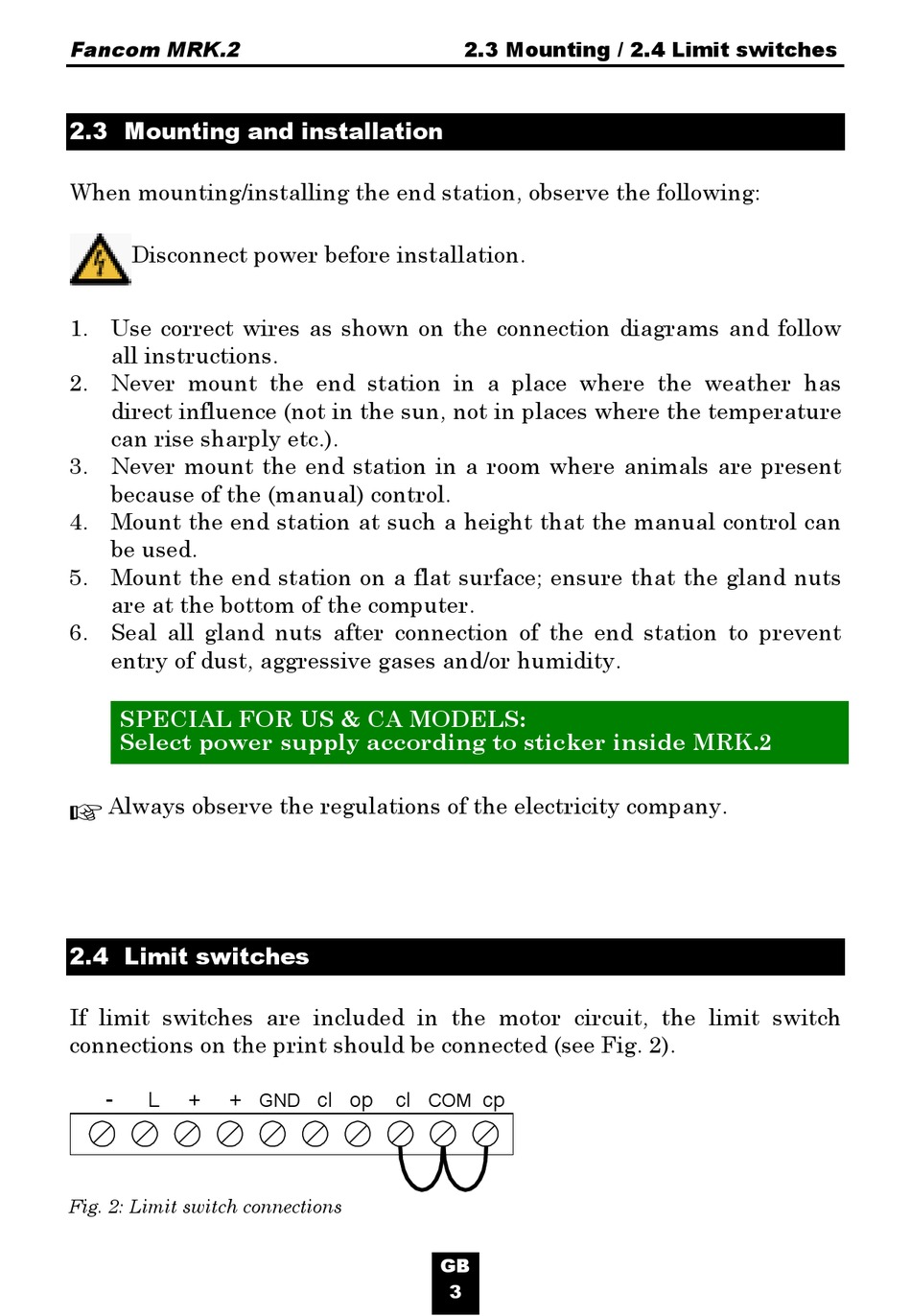

2.3 Mounting and installation

When mounting/installing the end station, observe the following:
Disconnect power before installation.
1. Use correct wires as shown on the connection diagrams and follow
all instructions.
2. Never mount the end station in a place where the weather has
direct influence (not in the sun, not in places where the temperature
can rise sharply etc.).
3. Never mount the end station in a room where animals are present
because of the (manual) control.
4. Mount the end station at such a height that the manual control can
be used.
5. Mount the end station on a flat surface; ensure that the gland nuts
are at the bottom of the computer.
6. Seal all gland nuts after connection of the end station to prevent
entry of dust, aggressive gases and/or humidity.
SPECIAL FOR US & CA MODELS:
Select power supply according to sticker inside MRK.2
Always observe the regulations of the electricity company.
!

2.4 Limit switches

If limit switches are included in the motor circuit, the limit switch
connections on the print should be connected (see Fig. 2).
-
L + +
Fig. 2: Limit switch connections
cl op cl
GND COM
