6.1.4 Rotating element

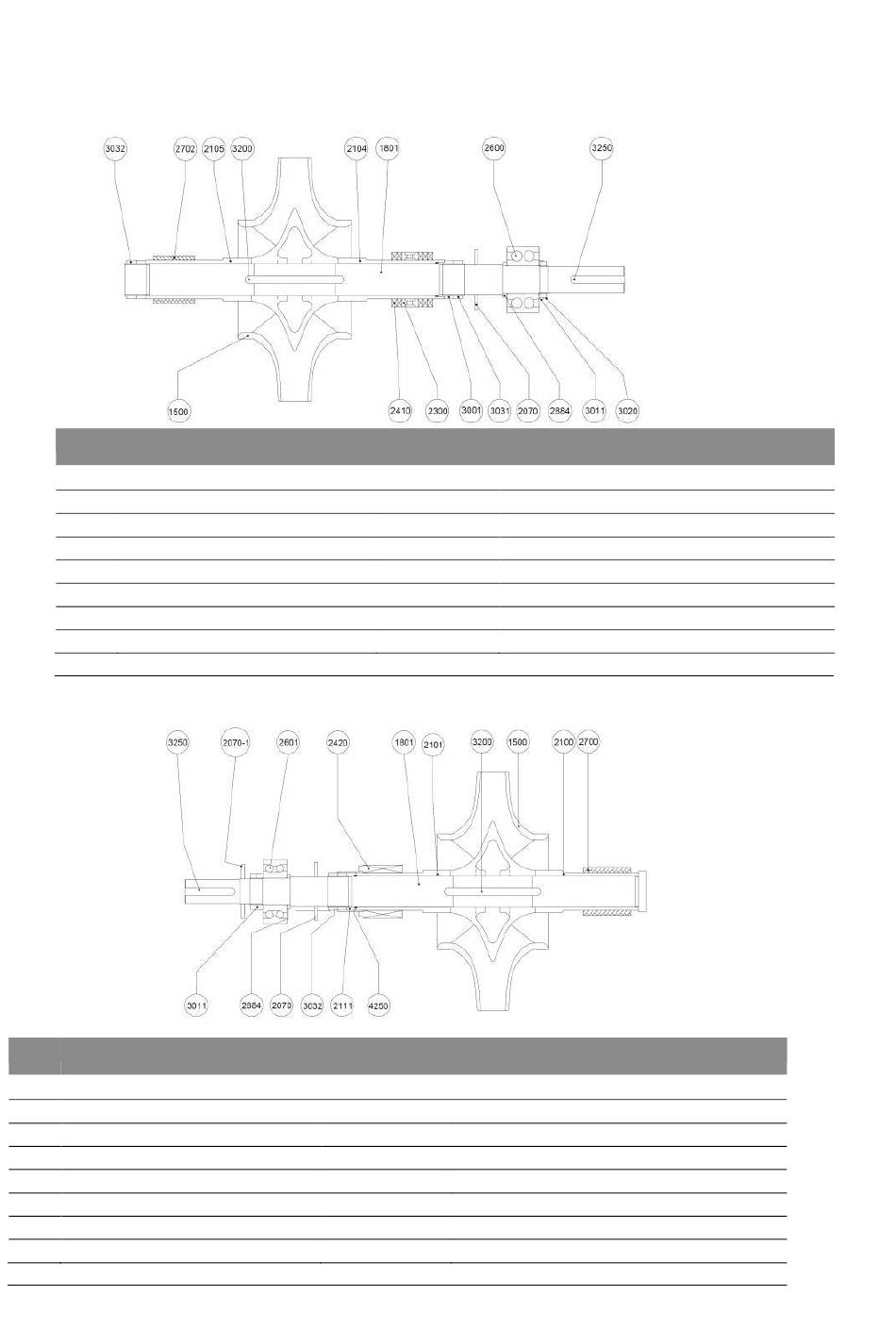

The rotating element of SCPV pump consist of
following parts
For Gland Pack
No. Part description
1500 Impeller
1801 Shaft
3200 Impeller key
2104 Drive end shaft sleeve
2105 Non drive end shaft sleeve
3001 Cowl Nut(L.H)
3031 Sleeve nut(L.H)
3032 Sleeve nut(R.H)
For Mechanical Seal
No. Part description
1500 Impeller
1801 Shaft
3200 Impeller key
2101 Drive end shaft sleeve
2100 Non drive end shaft sleeve
2111 Spacer Sleeve
3032 Sleeve nut(R.H)
4250 O-ring
Installation and operating instructions Wilo – SCPV pumps
No. Part description
2600 Bearing
2702 Bush Bearing
3011 Lock Nut
3020 Lock washer
2410 Gland packing
2300 Lantern ring
2070 Water Thrower
3250 Coupling key
No. Part description
2884 Thrust Collar
2601 Bearing
2700 Bush Bearing
3011 Lock Nut
2420 Mechanical Seal
2070 Water Thrower
2070-1 Water Thrower
3250 Coupling key
