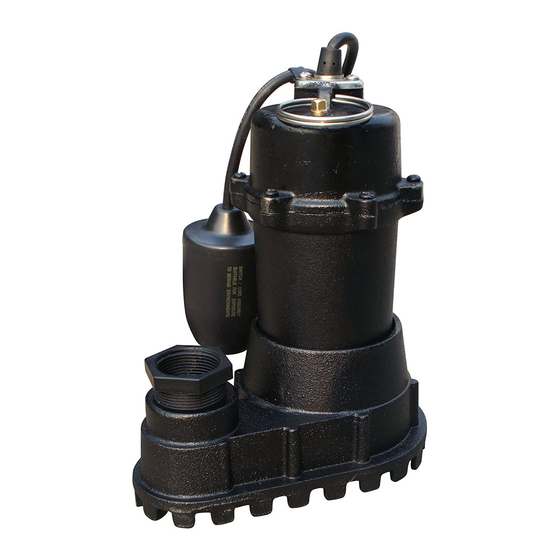

- Page 1 Wilo SP Series Submersible Sump Pumps ECC ECC22-15.33 ECC29-15.50 Installation and operating instructions...
-
Page 2: Specifications
Toll Free at: 866-945-6872, or e-mail: info@wilo-usa.com. Monday – Friday between 8 a.m. – 6 p.m., EST. Do not return the pump to the store. ATTEMPTING TO USE A DAMAGED PUMP can result in personal injury or death! 2. - Page 3 The following are the general safety requirements. Failure to follow them could cause serious personal injury and/or property damage. For your protection and safety, always follow these general rules with pumps: Always disconnect the pump from its power source before installing, inspecting, maintaining, or repairing.
-
Page 4: Installation
7. INSTALLATION Always use the handle to lift the pump. Never use the power cord to lift the pump. To avoid skin burns, unplug the pump and allow time for it to cool after periods of extended use. 1. Install the pump in sump pit with minimum diameter of 18" (46cm).Sump pit depth should be 30" (76cm). Construct sump pit of tile, concrete, steel, or plastic. - Page 5 Running the pump without sufficient water will damage the pump and void the pump’s warranty. Make certain the pump is submerged in water. Running the pump dry can damage the shaft seal. Plug the pump power cord plug into the piggyback switch plug outlet, and then plug the switch plug into a 115V GFCI power outlet.
-
Page 6: Troubleshooting
Description Qty. Shaft Impeller Gasket Diffuser Screw M5X12 Screw M5X16 Tether float switch Hose adaptor TROUBLESHOOTING Do not disassemble the motor housing. This pump has NO repairable internal parts, and disassembly may cause an oil leak or dangerous electrical wiring conditions. Table2 Troubleshooting Common Pump Problems Problem Possible Cause... - Page 7 WIL-IO-SP-ECC002-20...
- Page 8 WILO USA LLC Wilo Canada Inc. Wilo Mexico Tel: 262-204-6600 Tel: 403-276-9456 Tel: + 52 55 5586 3209 Fax: 229-558-9015 Fax: 403-277-9456 Fax: + 52 55 5586 3209 Email: info.us@wilo.com Email: info@wilo-canada.com Email: info@wilo.com.mx Web: www.wilo-usa.com Web: www.wilo-canada.com Web: www.wilo-mexico.com...
