VACON® NXP Advanced Safety Options
Installation Guide
3 Advanced Safety Option Variants
3.1 Option Board OPTBL
X3
Dout1 Dout2
1
3
5
2
4
6

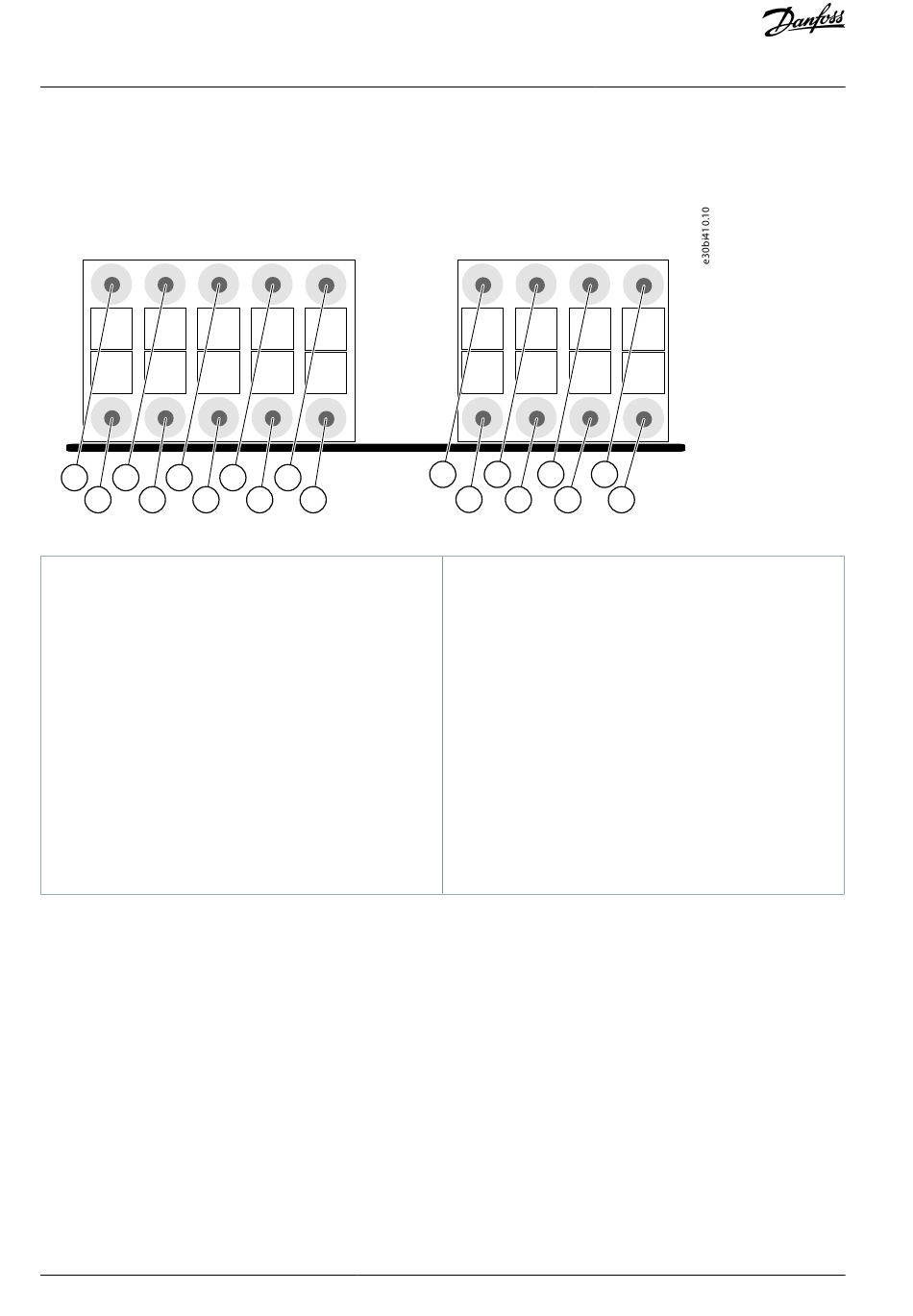

Illustration 5: The Terminals X3 and X4 of the OPTBL Option Board
1
STO 1. STO terminal 1 +24 V, to be connected to OP-
TAF terminal SD1+.
2
STO 2. STO terminal 2 +24 V, to be connected to OP-
TAF terminal SD2+.
3
GND.
4
GND.
5
Dout 1A. Terminal A of digital output 1.
6
Dout 1B. Terminal B of digital output 1.
7
Dout 2A. Terminal A of digital output 2.
8
Dout 2B. Terminal B of digital output 2.
9
+24 V. +24 V supply for external logic.
10 | Danfoss A/S © 2021.08
7
9
8
10
X4
Din1
Din2
Din3 Din4
11
13
15
17
12
14
16
10
GND.
11
Din 1A. Terminal A of digital input 1.
12
Din 1B. Terminal B of digital input 1.
13
Din 2A. Terminal A of digital input 2.
14
Din 2B. Terminal B of digital input 2.
15
Din 3A. Terminal A of digital input 3.
16
Din 3B. Terminal B of digital input 3.
17
Din 4A. Terminal A of digital input 4.
18
Din 4B. Terminal B of digital input 4.
Advanced Safety Option Variants
18
AN384043247178en-000101 / DPD01919
