The Quick Reference Card provides a quick overview of your spa's
main functions and the operations accessible with your digital control pad.

Spa functions

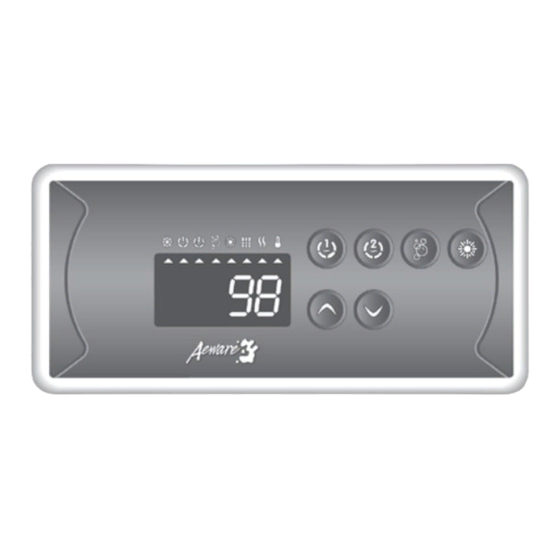

k-35-in
series of k-35 keypads for in.xe spa systems
Key 1
Press Key 1 key to turn Pump 1 on at low speed. Press a
second time to turn pump to high speed (with a dual-speed
pump). A third time turns pump off.
A built-in timer automatically turns pump off after 20 minu-
tes, unless pump has been manually deactivated first.
The "Pump 1" indicator lights up when Pump 1 is on.
With dual-speed pump, indicator will flash when
Pump 1 is on at low speed.
Key 2
Press Key 2 key to turn Pump 2 on at low speed. Press a
second time to turn pump to high speed (with a dual-speed
pump). A third time turns pump off.
A built-in timer automatically turns pump off after 20 min-
utes, unless pump has been manually deactivated first.
The "Pump 2" indicator lights up
when Pump 2 is on.
Blower k
ey
Press Blower key to turn blower on. Press Blower Key
again to turn off. A built-in timer automatically turns blower
off after 20 minutes, unless blower has been manually
deactivated first.
The "blower" indicator lights up
when Pump 2/blower is on.
(2 Pump System)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the k-35-in Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Gecko k-35-in Series

  • Page 1 k-35-in series of k-35 keypads for in.xe spa systems The Quick Reference Card provides a quick overview of your spa’s main functions and the operations accessible with your digital control pad. Spa functions Key 1 Press Key 1 key to turn Pump 1 on at low speed. Press a second time to turn pump to high speed (with a dual-speed pump).
  • Page 2 Light key Press Light key to turn light on. Press a second time to turn light off. A built-in timer automatically turns light off after 2 hours, unless it has been manually deactivated first. The “Light” indicator lights up when light is on. Up/Down keys Use Up or Down key to set desired water temperature.
  • Page 3 Filter cycle frequency Press Light key again. The display will show Fx, with "x" representing the number of filter cycles per day (up to 4). (Default: twice a day). Use Up or Down key to change setting. When the desired setting is displayed, press Light key to confirm.
  • Page 4 The system has detected a stuck relay error in in.xe. Call your dealer or service supplier. No low level configuration software has been installed into the system. Call your dealer or service supplier. © Groupe Gecko Alliance Inc., 2017 9919-100806-C All trademarks or registered trademarks www.geckoalliance.com Rev.
