Summary of Contents for Gecko in.k500

  • Page 1 TechBook in.k500 intuitive color keypad Compact Full color control Versatile...
  • Page 2: Table Of Contents

    Table of contents Warnings ������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 2 Introduction ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3 Overview �������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 - in�k500 dimensions �������������������������������������������������������������������������������������������������������������������������������������������� 4 Installation ����������������������������������������������������������������������������������������������������������������������������������������������������������������������� 5 - Installation of in�k500 ����������������������������������������������������������������������������������������������������������������������������������������� 5 - Drilling template ������������������������������������������������������������������������������������������������������������������������������������������������� 6 - Installation notes ������������������������������������������������������������������������������������������������������������������������������������������������� 7 - Connecting in�k500 keypad to the spa pack ������������������������������������������������������������������������������������������������������ 7 - Installation errors ������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 3: Warnings

    Compatible spa controllers: in�xm2, in�xe, in�yt, in�yj and in�ye with compatible software revision� Aeware®, Gecko®, and their respective logos are Registered Trademarks of Gecko Alliance Group� in�k500™, in�xm2™, in�xe™, in�yt™, in�ye™, in�yj™, in�tune™, in�stream™ and in�therm™, and their respective logos are trademarks of Gecko Alliance Group�...
  • Page 4: Introduction

    Introduction in�k500 intuitive color keypad The in�k500 is built with all the great features you've come to love in the in�k800, but in a smaller package� It is discreet, compact, and unobtrusively beautiful� Save space without losing out on function�...
  • Page 5: Overview

    Overview in.k500 dimensions 3�33" (84�46 mm) 7�16" (181�74 mm) 1�95" (49�51 mm)
  • Page 6: Installation

    Installation Installation of in.k500 Gasket with or without adhesive Optional wing nuts and spacers To install the in�k500, use the drilling template provided in this section� Determine the mounting location and stick the template on chosen location� Cut out an opening according to the template�...
  • Page 7: Drilling Template

    Installation Drilling template 2�625" 66�68mm 6�750" 171�45mm 6�250" 158�75mm R0�900" 22�86mm R0�250" 6�35mm...
  • Page 8: Installation Notes

    Connecting in.k500 keypad to the spa pack Main keypad in�k500 To connect the in�k500 keypad, simply insert its in�link connector into the appropriate keypad connector of the pack enclosure (as illustrated)�...
  • Page 9: Installation Errors

    Installation Installation errors Upon connecting the in�k500 to the spa pack you may see one of the following error messages: Please follow the instructions in the message or contact your dealer for more information� Power-up message The in�k500 keypad does not store the date & time� When the in�k500 starts up after a power loss a message will prompt the user to reprogram the date and time�...
  • Page 10: Connecting The In.stream, In.tune And In.stream 2 To The Spa Pack

    Connecting the in.stream, in.tune and in.stream 2 to the spa pack See Factory reset/Audio configuration section for details on setting up audio� in.stream Use the adapter cable (Part # 9920-400976) to connect the in�stream to the CO port of the spa pack� in.tune Use the adapter cable (Part # 9920-400976) to connect the in�tune to the CO port of the spa pack�...
  • Page 11: Keypad Functions

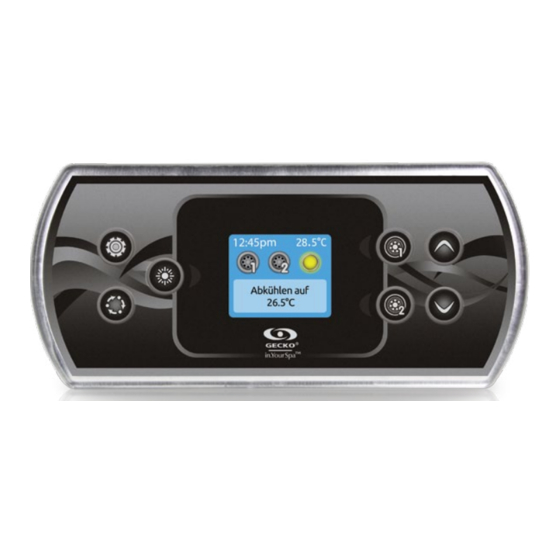

    Keypad functions in.k500 keypad layout Key 1 Settings Light Key Mode Down Selection lights Key 2 *Functions for keys 1 and 2 will depend on your system's low level configuration. Settings key One press gives you access to a menu to manage the settings of your spa� Refer to the settings section for details about the settings menu�...
  • Page 12: Start Or Stop Accessories

    Keypad functions Start or stop accessories To start or stop an accessory, press the associated button� Icons will become animated when their accessory is turned on, and inanimate when turned off� Icons on the screen will reflect the speed or state of the devices running on your spa�...
  • Page 13: Water Care

    Keypad functions Water care The Water Care section will help you set up your ideal filtration and heating settings� Choose from Away, Beginner, Energy Savings, Super Energy Savings, and Weekender, depending on your need� Use Light key to choose your setting� A checkmark will appear on the selected icon to confirm�...
  • Page 14: Modifying Schedules

    Keypad functions Modifying schedules To see and/or modify a Water Care category, use the lit button to the right (Key 1) to open the selected Water Care menu� Use the arrow keys to choose a schedule to modify (choice of economy and filtration schedules)� Use the Light key to move between parameters�...
  • Page 15: Maintenance (Version 7.00 And Higher)

    Keypad functions Maintenance (version 7.00 and higher) From the Settings page you can access the Maintenance menu, which gives you access to the following options: • Maintenance reminders • Standby Use the Up and Down keys to make a selection, and Light key to confirm�...
  • Page 16: Date And Time

    Keypad functions Date and time Here you can adjust the time format, change the year, date and time� Use the arrows to choose the setting that you want to adjust, and select it by pressing the Light key� Use the arrow buttons to change the parameters, and the Light key to move between parameters�...
  • Page 17: Wifi (Version 7.00 And Higher)

    Keypad functions WiFi (version 7.00 and higher) For the WiFi menu to appear in the Settings menu your in�touch module must be equipped with software version 11�00 or higher� This menu allows you to connect your in�touch module to a WiFi network or to change its network�...
  • Page 18: Config

    Keypad functions Config Please do not make changes in the electrical configuration section unless you are a qualified electrician. In this section you can change the low-level configuration, number of phases, and input current� Use Up/Down to move between parameters, and the Light key to select a parameter to change�...
  • Page 19: Restore/Audio Configuration

    Keypad functions Restore/Audio configuration When you select Restore you will be asked to confirm your choice� Doing so will reset all settings to factory default� Following a restore you will be asked to choose your audio source� Use the arrow key to choose between in�stream, in�stream 2, in�tune and no/other audio�...
  • Page 20: In.tune Operation

    Keypad functions in.tune operation Next track Volume up Mode Play/ Pause Last track Volume down Press the Mode key to access your in.tune. Changing tracks Play/Pause audio Use the Last Track and Next Track keys to change tracks Press the Play/Pause key to start or pause the audio� for the CD or AUX input�...
  • Page 21: In.stream Operation

    Keypad functions in.stream operation Next track Volume up Mode Play/ Pause Last track Volume down Press the Mode key to access your in.stream. If you are using a device with Bluetooth technology, it must be connected for functions to work. Play/Pause audio Changing tracks Press the Play/Pause button to start or pause the audio�...
  • Page 22: In.stream 2 Operation (Version 11.00 And Higher)

    Keypad functions in.stream 2 operation (version 11.00 and higher) Next track Volume up Mode Play/ Pause Last track Volume down Press the Mode key to access your in.stream 2. If you are using a device with Bluetooth technology, it must be connected for functions to work. Play/Pause audio Changing tracks Press the Play/Pause button to start or pause the audio�...
  • Page 23: Error Messages

    Error messages The list below shows the different error messages that can appear on the home screen� Refer to the troubleshooting and error codes section of the TechBook for your spa pack system� Code Message Warning! HL Error No flow for more than 2 hours No flow condition Danger! Relay stuck Warning! Spa temp�...
  • Page 24: Specifications

    Specifications Part number 0607-008033 Model IN�K506-CL-GE1 Environmental Operating temperature: -4°F (-20°C) to 149°F (65°C) Storage temperature: -22°F (-30°C) to 185°F (85°C) Humidity: Up to 70% condensing Water ingress protection: IPX-5 Mechanical Weight: 0�78 lb (0�35kg) Dimensions (W x H x D) 7�155”...
  • Page 25 9919-101209-E Rev. 04-2016 Gecko Alliance 450 des Canetons, Québec (Qc), G2E 5W6 Canada, 1.800.78.GECKO © Groupe Gecko Alliance Inc., 2016 All trademarks or registered trademarks www.geckoalliance.com are the property of their respective owners. Printed in Canada...
