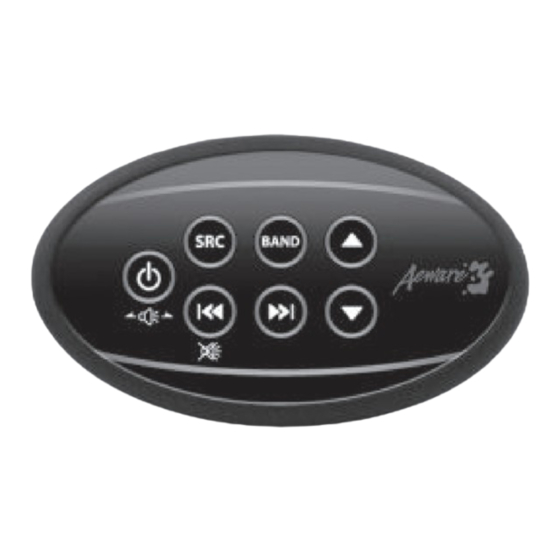

Gecko in.k175 Aeware Installation & Owner's Manual

Audio/video keypad
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
in.k175
™
wired remote control
Specifications & installation
Owner's manual
Giving full control
to wet fingers!

Advertisement

loading
Need help?

Need help?

Do you have a question about the in.k175 Aeware and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gecko in.k175 Aeware

Summary of Contents for Gecko in.k175 Aeware

  • Page 1 in.k175 ™ wired remote control Specifications & installation Owner's manual Giving full control to wet fingers!
  • Page 2 ™ in.K175 AEWARE AUDIO/VIDEO KEYPAD Warnings: FAILURE TO COMPLY WITH THE FOLLOWING WARNINGS MAY SIGNIFICANTLY SHORTEN THE PRODUCT’S LIFE TIME, AND LEAD TO FAILURES AS WELL AS HAZARDOUS CONDITIONS*. COMMON SENSE MUST ALWAYS PREVAIL WHEN EVALUATING THE INSTALLATION AND/OR USE OF ANY ELECTRONIC CONTROL IN A FINAL APPLICATION. •...
  • Page 3 Compatibility: Mechanical Specs: • 3.58 (Length) by 2.15’’ (Width) by Radio models supported by in.k175™ are: 0.20’’ (Height). • Aeware® in.tune™ / in.tune.110™ • Soft gasket receiver model. • Aeware® in.pix™ audio/video model. Environmentals: Standards: • Humidity: • IP rating IPX5 Up to 95 % condensing •...

  • Page 4: Track Down

    User Instructions: Source: Pressing SRC will allow you to select a source between the following (in order): Tuner, CD/DVD, CD changer, Aux. Band: Press Band to select between FM1, FM2, FM3, AM1, AM2 and WB (Weather Band available with in.tune only) Track Down: Radio mode Press Track Down to go to the previous preset station.

  • Page 5: Volume Down

    User Instructions: Track Up: Radio mode Press Track Up to go to the next preset station. Weather band Press Track Up to go to the next memorized station (in.tune only). CD mode Press Track Up to change music track. MP3 mode Press Track Up to select file up.
  • Page 6 Wiring Diagram: Wired remote in.tune in.k175™ in.pix Male to male 8-pin mini din cable (supplied with wired remote) Installation: • To install the in.k175™, use the drilling template to cut the surface, peel off the backing paper of the adhesive and stick the in.k175™ on the surface.
  • Page 7 Drilling template: • scale 1 : 1 Cut along 2.15 " 1.35 " Dashed line 2.78 " 3.58 "...
  • Page 8 Power: Press Power to turn system on or off. A 2 seconds press on will allow you Fader: to change the fader adjustments: FAD-FRONT: Front speaker only. FAD-REAR: Rear speaker only. FAD-ALL: Front and rear speakers. ® www.geckoalliance.com 9919-100836-B 1.800.78.GECKO...
