Ultrascan Vis Features - HunterLab UltraScan VIS Supplemental Manual

The UltraScan VIS is a dual beam xenon flash spectrophotometer with a wavelength range from 360 to
780 nanometers (nm). All tristimulus integrations are based on a triangular bandpass of ten nm and a
wavelength interval of ten nanometers. The instrument can measure both reflected and transmitted
color of a product.
The sensor uses a plastic integrating sphere that is six inches (152.4 mm) in diameter and coated with
Spectraflect™, which diffuses the light from the lamp. The light illuminates the sample and is either
reflected from it or transmitted through it. A lens is located at an angle of 8° from the perpendicular to
the sample surface. The lens collects the reflected or transmitted light and directs it to a diffraction
grating which separates the light into its component wavelengths. These components are then
measured by dual diode arrays and converted into usable data.
Macro button
Indicator
lights
Reflectance
port
Note: Use of this equipment in a manner not specified by the manufacturer may impair
Note: Danger of electric shock if liquids are spilled and fire if volatile or flammable liquids
The UltraScan VIS possesses the following default features:
•
Reflectance port
•
Sample Clamp
•
Transmittance compartment
•
Specular-Included/Excluded Port
UltraScan VIS Supplemental Manual for EasyMatch QC ver 2.0

UltraScan VIS Features

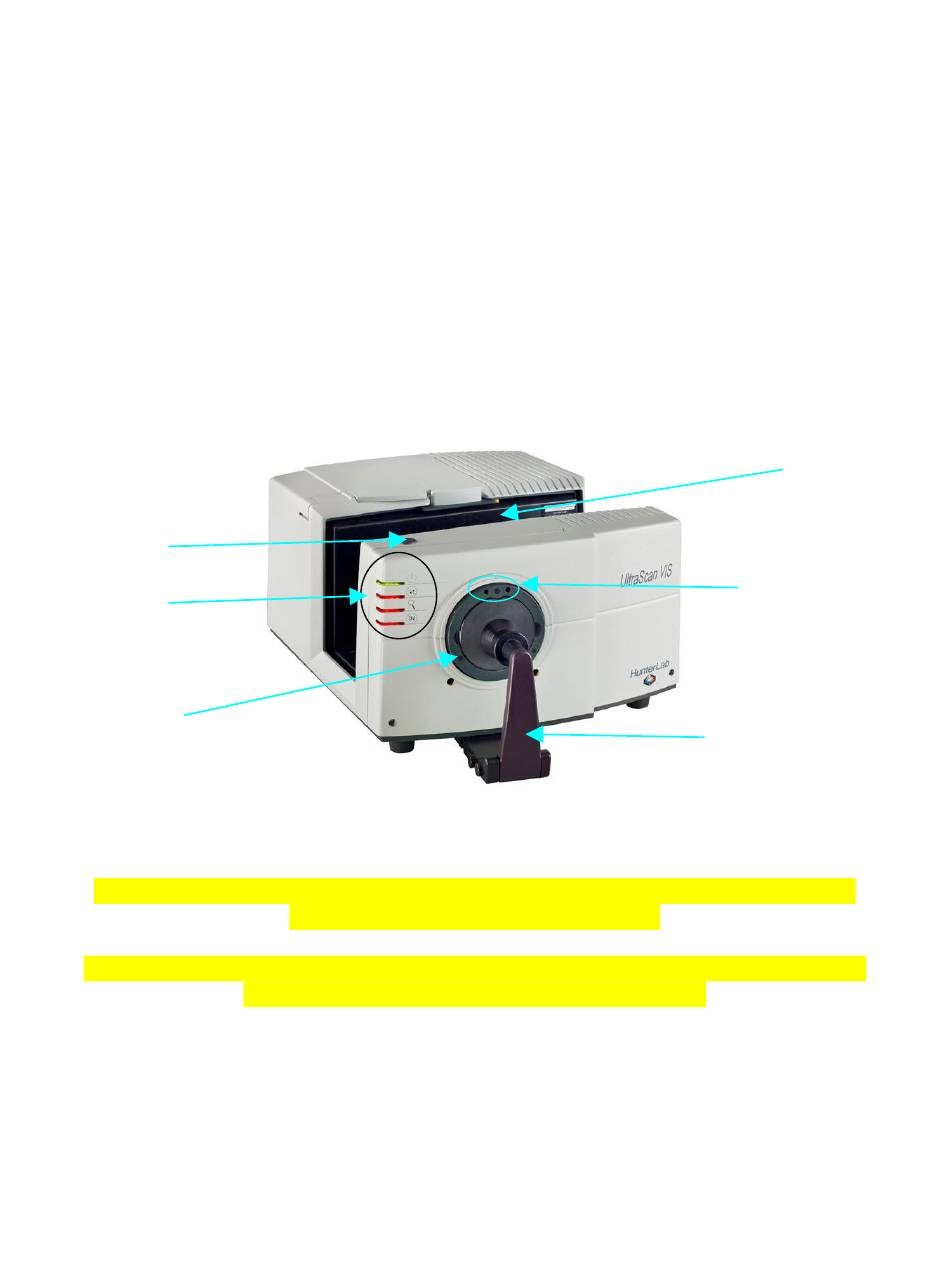

Figure 1. UltraScan VIS
the protection afforded by the equipment.
are spilled. Use care when measuring liquid samples.
Transmittance
compartment
Guidance holes
Spring-loaded
sample clamp
5
