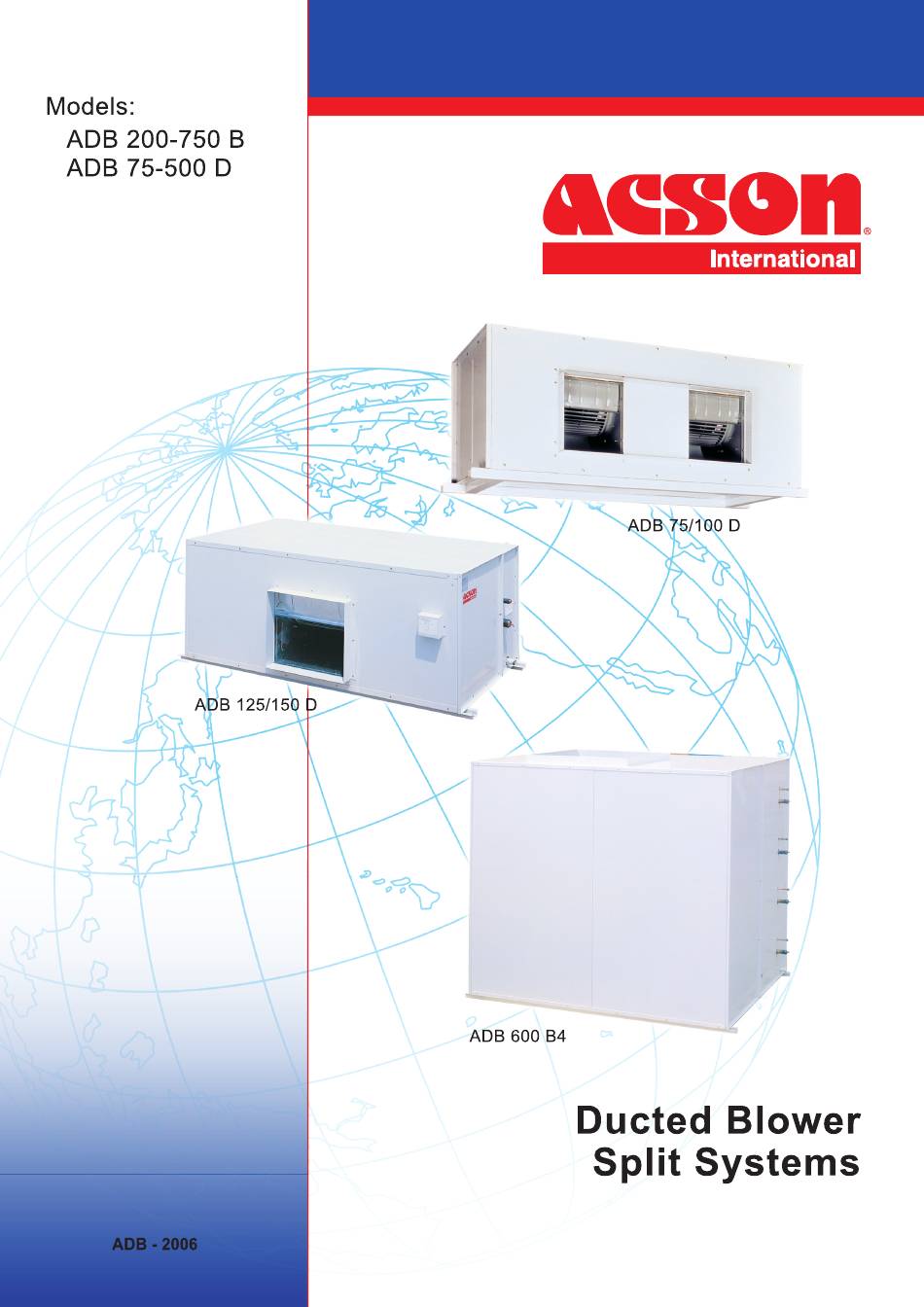

Acson international ADB 200B2 Manual

Ducted blower split systems
Hide thumbs Also See for ADB 200B2:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADB 200B2 and is the answer not in the manual?

Questions and answers

Related Manuals for Acson international ADB 200B2

Summary of Contents for Acson international ADB 200B2

  • Page 2: Table Of Contents

    CONTENTS 1. NOMENCLATURE ..................... 1 2. FEATURES ........................ 3 3. PRODUCT LINE-UP ....................4 4. SPECIFICATIONS ....................10 5. OPERATING RANGE ....................131 6. SOUND DATA ......................132 7. PERFORMANCE TABLES ..................147 8. FAN PERFORMANCE CHARTS ................170 9. OUTLINES AND DIMENSIONS ................195 10.

  • Page 3: Nomenclature

    1. NOMENCLATURE Indoor Others AA : Revision Type of Connection B : For Brazed F : For Flare Electrical A : 50Hz/1Ph/220 ~ 240V F : 50Hz/3Ph/380 ~ 415V Model Type R : Heatpump Omitted if Cooling Only Series B : B series D : D series Capacity 200 : 200,000 Btu/h...
  • Page 4 Outdoor Others AA : Revision Type of Connection B : For Brazed F : For Flare Electrical A : 50Hz/1Ph/220 ~ 240V F : 50Hz/3Ph/380 ~ 415V Model Type R : Heatpump Omitted if Cooling Only Series B : B series D : D series Capacity 75 : 75,000 Btu/h...

  • Page 5: Features

    2. FEATURES EASY MAINTENANCE The simple design concept has provided the ease of maintenance and servicing. Access to the internal part of the unit can be from the service panel or other side of the unit by loosening a few screws. Only for model ADB75/100D with additional service panel from bottom AIR DISCHARGE ORIENTATION ADB75-150D models come with standard horizontal air discharge.

  • Page 6: Product Line-Up

    3. PRODUCT LINE UP Classification Refrigerant Control Handset Marking Filter Air Discharge Others Control FBAH 200B2 FBAI FBAG 250B2 FBAI FBAC 300B2 FBAE FBAC 300B3 FBAE FBAG 350B3 FBAI FBAC 400B4 FBAE FBAC 450B3 FBAE FBAG 500B4 FBAI FBAC FBAD 600B4 FBAF FBAG...
  • Page 7 Classification Refrigerant Control Handset Marking Filter Air Discharge Others Control ABAE ABAG ABAE 100D ABAG FBAE 125D FBAF FBHB FBAA 125D2 FBHA FBAE 150D1 FBHB FBAC 150D2 FBHA 200D2 FBAF 250D2 FBAF 300D2 FBAF 400D4 FBAF 500D4 FBAF...
  • Page 8 Classification Refrigerant Control Marking Filter Air Discharge Others Handset Control ADSB FBAD 200B2 FBAD 250B2 300B3 FBAD 350B3 FBAD 400B4 FBAD 500B4 FBAD...
  • Page 9 Classification Control Marking Compressor Expansion Device Others FBAP 100B FBAR FBAS FBAH 100C FBAI FBAJ FBAR FBAW 125B FBAT FBAY FBAK 150C FBAM FBAP Classification Control Marking Compressor Expansion Device Others FFFE FFFF FFFG...
  • Page 10 Classification Expansion Control Marking Compressor Others Device FBAF FBAG FBAH FCAA FCAB FBAF FBAG 100D FBAH FCAA FCAB FBAF FBAG 125D FBAH FCAA FCAB FBAG FBAH FBAI 150D FCAA FCAB FCAC 200D2 FBAA FBAA 250D2 FBAA 300D2...
  • Page 11 Classification Expansion Control Marking Compressor Others Device A4MC FBAA FBAC FCAA FCAB FBAA FBAC 100D FCAA FCAB FBAA FBAC 125D FCAA FCAB FBAA FBAC 150D FCAA FCAB...

  • Page 12: Specifications

    4. SPECIFICATIONS GENERAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB200B2 MODEL OUTDOOR UNIT AMC100B x 2 AMC100C x 2 Btu/h 200,000 200,000 NOMINAL CAPACITY 58,600 58,600 NOMINAL TOTAL INPUT POWER 21,130 20,850 NOMINAL RUNNING CURRENT 39.8 41.2 POWER SOURCE V/Ph/Hz 380~415 / 3 / 50...
  • Page 13 GENERAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB250B2 MODEL OUTDOOR UNIT AMC125B x 2 250,000 Btu/h NOMINAL CAPACITY 73,250 NOMINAL TOTAL INPUT POWER 25,146 NOMINAL RUNNING CURRENT 45.4 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL OPERATION...
  • Page 14 GENERAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB300B2 MODEL OUTDOOR UNIT AMC150C x 2 300,000 Btu/h NOMINAL CAPACITY 87,900 NOMINAL TOTAL INPUT POWER 34,460 NOMINAL RUNNING CURRENT 59.1 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL OPERATION...
  • Page 15 GENERAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB300B3 MODEL OUTDOOR UNIT AMC100B x 3 AMC100C x 3 Btu/h 300,000 300,000 NOMINAL CAPACITY 87,900 87,900 NOMINAL TOTAL INPUT POWER 31,600 31,180 NOMINAL RUNNING CURRENT 59.2 61.4 POWER SOURCE V/Ph/Hz 380~415 / 3 / 50 380~415 / 3 / 50...
  • Page 16 GENERAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB350B3 MODEL OUTDOOR UNIT AMC100B x 1 AMC125B x 2 350,000 Btu/h NOMINAL CAPACITY 102,550 NOMINAL TOTAL INPUT POWER 35,486 NOMINAL RUNNING CURRENT 64.9 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL...
  • Page 17 GENERAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB400B4 MODEL OUTDOOR UNIT AMC100B x 4 AMC100C x 4 Btu/h 400,000 400,000 NOMINAL CAPACITY 117,200 117,200 NOMINAL TOTAL INPUT POWER 41,635 41,075 NOMINAL RUNNING CURRENT 78.2 81.1 POWER SOURCE V/Ph/Hz 380~415 / 3 / 50 380~415 / 3 / 50...
  • Page 18 GENERAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB450B3 MODEL OUTDOOR UNIT AMC150C x 3 450,000 Btu/h NOMINAL CAPACITY 131,850 NOMINAL TOTAL INPUT POWER 53,010 NOMINAL RUNNING CURRENT 90.5 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL OPERATION...
  • Page 19 GENERAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB500B4 MODEL OUTDOOR UNIT AMC125B x 4 500,000 Btu/h NOMINAL CAPACITY 146,500 NOMINAL TOTAL INPUT POWER 51,587 NOMINAL RUNNING CURRENT 92.9 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL OPERATION...
  • Page 20 GENERAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB600B4 MODEL OUTDOOR UNIT AMC150C x 4 600,000 Btu/h NOMINAL CAPACITY 175,800 NOMINAL TOTAL INPUT POWER 73,820 NOMINAL RUNNING CURRENT 125.4 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL OPERATION...
  • Page 21 GENERAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB750B5 MODEL OUTDOOR UNIT AMC150C x 5 750,000 Btu/h NOMINAL CAPACITY 219,750 NOMINAL TOTAL INPUT POWER 91,050 NOMINAL RUNNING CURRENT 155.0 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL OPERATION...
  • Page 22 GENERAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB75D MODEL OUTDOOR UNIT AMC75D 75,000 Btu/h NOMINAL CAPACITY 21,975 NOMINAL TOTAL INPUT POWER 7,765 NOMINAL RUNNING CURRENT 14.8 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE CONTROL OPERATION WIRED CONTROL 1064 / 2254...
  • Page 23 GENERAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB100D MODEL OUTDOOR UNIT AMC100D 100,000 Btu/h NOMINAL CAPACITY 29,300 NOMINAL TOTAL INPUT POWER 9,580 NOMINAL RUNNING CURRENT 17.9 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz REFRIGERANT TYPE CONTROL OPERATION WIRED CONTROL 1425 / 3019...
  • Page 24 GENERAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB125D MODEL OUTDOOR UNIT AMC125D 125,000 Btu/h NOMINAL CAPACITY 36,625 NOMINAL TOTAL INPUT POWER 11,413 20.5 NOMINAL RUNNING CURRENT POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE OPERATION WIRED CONTROL CONTROL AIR FLOW...
  • Page 25 GENERAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB125D2 MODEL OUTDOOR UNIT ALC61C x 2 117,000 Btu/h NOMINAL CAPACITY 34,281 NOMINAL TOTAL INPUT POWER 11,650 NOMINAL RUNNING CURRENT 21.0 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL OPERATION...
  • Page 26 GENERAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB150D1 MODEL OUTDOOR UNIT AMC150D 150,000 Btu/h NOMINAL CAPACITY 43,950 NOMINAL TOTAL INPUT POWER 15,244 NOMINAL RUNNING CURRENT 27.5 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL OPERATION AIR FLOW...
  • Page 27 GENERAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB150D2 MODEL OUTDOOR UNIT AMC75D x 2 150,000 Btu/h NOMINAL CAPACITY 43,950 NOMINAL TOTAL INPUT POWER 15,794 NOMINAL RUNNING CURRENT 30.5 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL OPERATION...
  • Page 28 GENERAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB200D2 MODEL OUTDOOR UNIT AMC100D x 2 AMC200D2 Btu/h 200,000 200,000 NOMINAL CAPACITY 58,600 58,600 NOMINAL TOTAL INPUT POWER 19,940 21,720 NOMINAL RUNNING CURRENT 37.8 41.4 POWER SOURCE V/Ph/Hz 380~415 / 3 / 50 380~415 / 3 / 50 REFRIGERANT TYPE WIRED CONTROL...
  • Page 29 GENERAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB250D2 MODEL OUTDOOR UNIT AMC125D x 2 AMC250D2 Btu/h 250,000 250,000 NOMINAL CAPACITY 73,250 73,250 NOMINAL TOTAL INPUT POWER 24,286 26,247 NOMINAL RUNNING CURRENT 43.0 49.7 POWER SOURCE V/Ph/Hz 380~415 / 3 / 50 380~415 / 3 / 50 REFRIGERANT TYPE WIRED CONTROL...
  • Page 30 GENERAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB300D2 MODEL OUTDOOR UNIT AMC150D x 2 AMC300D2 Btu/h 300,000 300,000 NOMINAL CAPACITY 87,920 87,920 NOMINAL TOTAL INPUT POWER 32,008 33,680 NOMINAL RUNNING CURRENT 56.5 62.9 POWER SOURCE V/Ph/Hz 380~415 / 3 / 50 380~415 / 3 / 50 REFRIGERANT TYPE WIRED CONTROL...
  • Page 31 GENERAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB400D4 MODEL OUTDOOR UNIT AMC100D x 4 400,000 Btu/h NOMINAL CAPACITY 117,200 NOMINAL TOTAL INPUT POWER 40,180 NOMINAL RUNNING CURRENT 75.8 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL OPERATION...
  • Page 32 GENERAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB500D4 MODEL OUTDOOR UNIT AMC125D x 4 500,000 Btu/h NOMINAL CAPACITY 146,500 NOMINAL TOTAL INPUT POWER 51,072 NOMINAL RUNNING CURRENT 88.7 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL OPERATION...
  • Page 33 GENERAL DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB75D MODEL OUTDOOR UNIT AMC75D 75,000 Btu/h NOMINAL CAPACITY 21,975 NOMINAL TOTAL INPUT POWER 8,310 NOMINAL RUNNING CURRENT 19.0 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz REFRIGERANT TYPE CONTROL...
  • Page 34 GENERAL DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB100D MODEL OUTDOOR UNIT AMC100D 100,000 Btu/h NOMINAL CAPACITY 29,300 NOMINAL TOTAL INPUT POWER 10,302 NOMINAL RUNNING CURRENT 23.43 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL...
  • Page 35 GENERAL DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB125D MODEL OUTDOOR UNIT AMC125D 125,000 Btu/h NOMINAL CAPACITY 36,625 NOMINAL TOTAL INPUT POWER 11,579 NOMINAL RUNNING CURRENT 21.185 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL...
  • Page 36 GENERAL DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB125D2 MODEL OUTDOOR UNIT ALC61C x 2 117,000 Btu/h NOMINAL CAPACITY 34,281 NOMINAL TOTAL INPUT POWER 12,286 NOMINAL RUNNING CURRENT 23.185 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL...
  • Page 37 GENERAL DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB150D1 MODEL OUTDOOR UNIT AMC150D 150,000 Btu/h NOMINAL CAPACITY 43,950 NOMINAL TOTAL INPUT POWER 15,369 NOMINAL RUNNING CURRENT 28.013 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL...
  • Page 38 GENERAL DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB150D2 MODEL OUTDOOR UNIT AMC75D x 2 150,000 Btu/h NOMINAL CAPACITY 43,950 NOMINAL TOTAL INPUT POWER 15,919 NOMINAL RUNNING CURRENT 31.013 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL...
  • Page 39 GENERAL DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB200B2 MODEL OUTDOOR UNIT AMC100B x 2 AMC100C x 2 Btu/h 200,000 200,000 NOMINAL CAPACITY 58,600 58,600 NOMINAL TOTAL INPUT POWER 21,130 20,850 NOMINAL RUNNING CURRENT 39.8 41.2 POWER SOURCE V/Ph/Hz 380~415 / 3 / 50 380~415 / 3 / 50...
  • Page 40 GENERAL DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB250B2 MODEL OUTDOOR UNIT AMC125B x 2 250,000 Btu/h NOMINAL CAPACITY 73,250 NOMINAL TOTAL INPUT POWER 25,146 NOMINAL RUNNING CURRENT 45.4 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL...
  • Page 41 GENERAL DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB300B3 MODEL OUTDOOR UNIT AMC100B x 3 AMC100C x 3 Btu/h 300,000 300,000 NOMINAL CAPACITY 87,900 87,900 NOMINAL TOTAL INPUT POWER 31,600 31,180 NOMINAL RUNNING CURRENT 59.2 61.4 POWER SOURCE V/Ph/Hz 380~415 / 3 / 50 380~415 / 3 / 50...
  • Page 42 GENERAL DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB350B3 MODEL OUTDOOR UNIT AMC100B x 1 AMC125B x 2 350,000 Btu/h NOMINAL CAPACITY 102,550 NOMINAL TOTAL INPUT POWER 35,486 NOMINAL RUNNING CURRENT 64.9 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL...
  • Page 43 GENERAL DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB400B4 MODEL OUTDOOR UNIT AMC100B x 4 AMC100C x 4 400,000 400,000 Btu/h NOMINAL CAPACITY 117,200 117,200 NOMINAL TOTAL INPUT POWER 41,635 41,075 NOMINAL RUNNING CURRENT 78.2 81.1 POWER SOURCE V/Ph/Hz 380~415 / 3 / 50 380~415 / 3 / 50...
  • Page 44 GENERAL DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB500B4 MODEL OUTDOOR UNIT AMC125B x 4 500,000 Btu/h NOMINAL CAPACITY 146,500 NOMINAL TOTAL INPUT POWER 51,587 NOMINAL RUNNING CURRENT 92.9 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE WIRED CONTROL CONTROL...
  • Page 45 GENERAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB75D MODEL OUTDOOR UNIT A4MC75D 73,000 Btu/h NOMINAL CAPACITY 21,395 NOMINAL TOTAL INPUT POWER 8,080 NOMINAL RUNNING CURRENT 15.1 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz REFRIGERANT TYPE R407C CONTROL OPERATION WIRED CONTROL...
  • Page 46 GENERAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB100D MODEL OUTDOOR UNIT A4MC100D 91,000 Btu/h NOMINAL CAPACITY 26,670 NOMINAL TOTAL INPUT POWER 10,160 NOMINAL RUNNING CURRENT 18.8 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE R407C WIRED CONTROL CONTROL OPERATION...
  • Page 47 GENERAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB125D MODEL OUTDOOR UNIT A4MC125D 108,000 Btu/h NOMINAL CAPACITY 31,653 NOMINAL TOTAL INPUT POWER 12,100 NOMINAL RUNNING CURRENT 21.6 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE R407C WIRED CONTROL CONTROL OPERATION...
  • Page 48 GENERAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB150D1 MODEL OUTDOOR UNIT A4MC150D 145,000 Btu/h NOMINAL CAPACITY 42,497 NOMINAL TOTAL INPUT POWER 16,239 NOMINAL RUNNING CURRENT 28.4 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE R407C WIRED CONTROL CONTROL OPERATION...
  • Page 49 GENERAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB150D2 MODEL OUTDOOR UNIT A4MC75D x 2 146,000 Btu/h NOMINAL CAPACITY 42,790 NOMINAL TOTAL INPUT POWER 16,424 NOMINAL RUNNING CURRENT 31.1 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE R407C WIRED CONTROL CONTROL...
  • Page 50 GENERAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB200D2 MODEL OUTDOOR UNIT A4MC100D x 2 182,000 Btu/h NOMINAL CAPACITY 53,500 NOMINAL TOTAL INPUT POWER 21,100 NOMINAL RUNNING CURRENT 39.6 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE R407C WIRED CONTROL CONTROL...
  • Page 51 GENERAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB250D2 MODEL OUTDOOR UNIT A4MC125D x 2 216,000 Btu/h NOMINAL CAPACITY 63,306 NOMINAL TOTAL INPUT POWER 25,660 NOMINAL RUNNING CURRENT 45.2 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE R407C WIRED CONTROL CONTROL...
  • Page 52 GENERAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB300D2 MODEL OUTDOOR UNIT A4MC150D x 2 290,000 Btu/h NOMINAL CAPACITY 84,990 NOMINAL TOTAL INPUT POWER 33,998 NOMINAL RUNNING CURRENT 59.2 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE R407C WIRED CONTROL CONTROL...
  • Page 53 GENERAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB400D4 MODEL OUTDOOR UNIT A4MC100D x 4 364,000 Btu/h NOMINAL CAPACITY 105,510 NOMINAL TOTAL INPUT POWER 42,500 NOMINAL RUNNING CURRENT 79.4 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE R407C WIRED CONTROL CONTROL...
  • Page 54 GENERAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB500D4 MODEL OUTDOOR UNIT A4MC125D x 4 432,000 Btu/h NOMINAL CAPACITY 126,612 NOMINAL TOTAL INPUT POWER 53,820 NOMINAL RUNNING CURRENT 93.1 POWER SOURCE 380~415 / 3 / 50 V/Ph/Hz REFRIGERANT TYPE R407C WIRED CONTROL CONTROL...
  • Page 55 ELECTRICAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB200B2 MODEL OUTDOOR UNIT AMC100B x 2 AMC100C x 2 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 2730 INDOOR MOTOR RATED RUNNING CURRENT 3000 MOTOR OUTPUT POLES...
  • Page 56 ELECTRICAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB300B2 MODEL OUTDOOR UNIT AMC150C x 2 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 4000 INDOOR MOTOR RATED RUNNING CURRENT 4000 MOTOR OUTPUT POLES INSULATION GRADE CLASS F...
  • Page 57 ELECTRICAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB350B3 MODEL OUTDOOR UNIT AMC100B x 1 AMC125B x 2 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 4510 INDOOR MOTOR RATED RUNNING CURRENT 5500 MOTOR OUTPUT POLES...
  • Page 58 ELECTRICAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB450B3 MODEL OUTDOOR UNIT AMC150C x 3 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 7320 INDOOR MOTOR 12.5 RATED RUNNING CURRENT 7500 MOTOR OUTPUT POLES INSULATION GRADE...
  • Page 59 ELECTRICAL DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB600B4 MODEL OUTDOOR UNIT AMC150C x 4 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 12900 INDOOR MOTOR 21.4 RATED RUNNING CURRENT 11000 MOTOR OUTPUT POLES INSULATION GRADE...
  • Page 60 ELECTRICAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB75D MODEL OUTDOOR UNIT AMC75D INSULATION GRADE CLASS F 220~240 / 1 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER INDOOR MOTOR RATED RUNNING CURRENT MOTOR OUTPUT POLES INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE...
  • Page 61 ELECTRICAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB125D MODEL OUTDOOR UNIT AMC125D INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 1420 INDOOR MOTOR RATED RUNNING CURRENT 1500 MOTOR OUTPUT POLES INSULATION GRADE CLASS F 380~415 / 3 / 50...
  • Page 62 ELECTRICAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB150D1 MODEL OUTDOOR UNIT AMC150D INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 1740 INDOOR MOTOR RATED RUNNING CURRENT 1500 MOTOR OUTPUT POLES INSULATION GRADE CLASS F 380~415 / 3 / 50...
  • Page 63 ELECTRICAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB200D2 MODEL OUTDOOR UNIT AMC100D x 2 AMC200D2 INSULATION GRADE CLASS F POWER SOURCE V/Ph/Hz 380~415 / 3 / 50 380~415 / 3 / 50 RATED INPUT POWER 2800 2800 INDOOR MOTOR RATED RUNNING CURRENT MOTOR OUTPUT...
  • Page 64 ELECTRICAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB300D2 MODEL OUTDOOR UNIT AMC150D x 2 AMC300D2 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 5000 INDOOR MOTOR RATED RUNNING CURRENT 5500 MOTOR OUTPUT POLES INSULATION GRADE...
  • Page 65 ELECTRICAL DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB500D4 MODEL OUTDOOR UNIT AMC125D x 4 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 11100 INDOOR MOTOR 18.3 RATED RUNNING CURRENT 11000 MOTOR OUTPUT POLES INSULATION GRADE...
  • Page 66 ELECTRICAL DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB75D MODEL OUTDOOR UNIT AMC75D INSULATION GRADE CLASS F 220~240 / 1 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 1283 INDOOR MOTOR RATED RUNNING CURRENT MOTOR OUTPUT POLES INSULATION GRADE...
  • Page 67 ELECTRICAL DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB125D MODEL OUTDOOR UNIT AMC125D INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 1586 INDOOR MOTOR 3.585 RATED RUNNING CURRENT 2200 MOTOR OUTPUT POLES...
  • Page 68 ELECTRICAL DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB150D1 MODEL OUTDOOR UNIT AMC150D INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 1865 INDOOR MOTOR 3.813 RATED RUNNING CURRENT 2200 MOTOR OUTPUT POLES...
  • Page 69 ELECTRICAL DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB200B2 MODEL OUTDOOR UNIT AMC100B x 2 AMC100C x 2 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 2730 INDOOR MOTOR RATED RUNNING CURRENT 3000 MOTOR OUTPUT POLES...
  • Page 70 ELECTRICAL DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB300B3 MODEL OUTDOOR UNIT AMC100B x 3 AMC100C x 3 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 4000 INDOOR MOTOR RATED RUNNING CURRENT 4000 MOTOR OUTPUT POLES...
  • Page 71 ELECTRICAL DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB400B4 MODEL OUTDOOR UNIT AMC100B x 4 AMC100C x 4 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 4835 INDOOR MOTOR RATED RUNNING CURRENT 5500 MOTOR OUTPUT POLES...
  • Page 72 ELECTRICAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB75D MODEL OUTDOOR UNIT A4MC75D INSULATION GRADE CLASS F 220~240 / 1 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER INDOOR MOTOR RATED RUNNING CURRENT MOTOR OUTPUT POLES INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE...
  • Page 73 ELECTRICAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB125D MODEL OUTDOOR UNIT A4MC125D INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 1420 INDOOR MOTOR RATED RUNNING CURRENT 1500 MOTOR OUTPUT POLES INSULATION GRADE CLASS F 380~415 / 3 / 50...
  • Page 74 ELECTRICAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB150D2 MODEL OUTDOOR UNIT A4MC75D x 2 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 1740 INDOOR MOTOR RATED RUNNING CURRENT 1500 MOTOR OUTPUT POLES INSULATION GRADE CLASS F...
  • Page 75 ELECTRICAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB250D2 MODEL OUTDOOR UNIT A4MC125D x 2 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 4300 INDOOR MOTOR RATED RUNNING CURRENT 4000 MOTOR OUTPUT POLES INSULATION GRADE CLASS F...
  • Page 76 ELECTRICAL DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB400D4 MODEL OUTDOOR UNIT A4MC100D x 4 INSULATION GRADE CLASS F 380~415 / 3 / 50 POWER SOURCE V/Ph/Hz RATED INPUT POWER 5900 INDOOR MOTOR 11.0 RATED RUNNING CURRENT 7500 MOTOR OUTPUT POLES INSULATION GRADE...
  • Page 77 COMPONENTS DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB200B2 MODEL OUTDOOR UNIT AMC100B x 2 AMC100C x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE...
  • Page 78 COMPONENTS DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB250B2 MODEL OUTDOOR UNIT AMC125B x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 469.90 / 18.50 mm/in 459.99 / 18.11 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 79 COMPONENTS DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB300B2 MODEL OUTDOOR UNIT AMC150C x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 469.90 / 18.50 mm/in 459.99 / 18.11 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 80 COMPONENTS DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB300B3 MODEL OUTDOOR UNIT AMC100B x 3 AMC100C x 3 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 469.90 / 18.50 mm/in 459.99 / 18.11 LENGTH mm/in TYPE...
  • Page 81 COMPONENTS DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB350B3 MODEL OUTDOOR UNIT AMC100B x 1 AMC125B x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 469.90 / 18.50 mm/in 459.99 / 18.11 LENGTH mm/in TYPE...
  • Page 82 COMPONENTS DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB400B4 MODEL OUTDOOR UNIT AMC100B x 4 AMC100C x 4 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 591.82 / 23.30 mm/in 563.88 / 22.20 LENGTH mm/in TYPE...
  • Page 83 COMPONENTS DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB450B3 MODEL OUTDOOR UNIT AMC150C x 3 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 591.82 / 23.30 mm/in 563.88 / 22.20 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 84 COMPONENTS DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB500B4 MODEL OUTDOOR UNIT AMC125B x 4 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 591.82 / 23.30 mm/in 563.88 / 22.20 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 85 COMPONENTS DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB600B4 MODEL OUTDOOR UNIT AMC150C x 4 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 785.00 / 30.90 mm/in 706.00 / 27.79 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 86 COMPONENTS DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB750B5 MODEL OUTDOOR UNIT AMC150C x 5 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 785.00 / 30.90 mm/in 706.00 / 27.79 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 87 COMPONENTS DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB75D MODEL OUTDOOR UNIT AMC75D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE DIRECT DIAMETER 282.70 / 11.13 mm/in 203.20 / 8.00 LENGTH mm/in TYPE PERMANENT SPLIT CAPACITOR INDOOR FAN QUANTITY MOTOR...
  • Page 88 COMPONENTS DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB100D MODEL OUTDOOR UNIT AMC100D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE DIRECT DIAMETER 282.70 / 11.13 mm/in 203.20 / 8.00 LENGTH mm/in TYPE PERMANENT SPLIT CAPACITOR INDOOR FAN QUANTITY MOTOR...
  • Page 89 COMPONENTS DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB125D MODEL OUTDOOR UNIT AMC125D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY MOTOR...
  • Page 90 COMPONENTS DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB125D2 MODEL OUTDOOR UNIT ALC61C x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 91 COMPONENTS DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB150D1 MODEL OUTDOOR UNIT AMC150D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY MOTOR...
  • Page 92 COMPONENTS DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB150D2 MODEL OUTDOOR UNIT AMC75D x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 93 COMPONENTS DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB200D2 MODEL OUTDOOR UNIT AMC100D x 2 AMC200D2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN...
  • Page 94 COMPONENTS DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB250D2 MODEL OUTDOOR UNIT AMC125D x 2 AMC250D2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 469.90 / 18.50 mm/in 459.99 / 18.11 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN...
  • Page 95 COMPONENTS DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB300D2 MODEL OUTDOOR UNIT AMC150D x 2 AMC300D2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 469.90 / 18.50 mm/in 459.99 / 18.11 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN...
  • Page 96 COMPONENTS DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB400D4 MODEL OUTDOOR UNIT AMC100D x 4 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 591.82 / 23.30 mm/in 563.88 / 22.20 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 97 COMPONENTS DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB500D4 MODEL OUTDOOR UNIT AMC125D x 4 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 591.82 / 23.30 mm/in 563.88 / 22.20 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 98 COMPONENTS DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB75D MODEL OUTDOOR UNIT AMC75D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE DIRECT DIAMETER 282.70 / 11.13 mm/in 203.20 / 8.00 LENGTH mm/in TYPE PERMANENT SPLIT CAPACITOR INDOOR FAN...
  • Page 99 COMPONENTS DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB100D MODEL OUTDOOR UNIT AMC100D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE DIRECT DIAMETER 282.70 / 11.13 mm/in 203.20 / 8.00 LENGTH mm/in TYPE PERMANENT SPLIT CAPACITOR INDOOR FAN...
  • Page 100 COMPONENTS DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB125D MODEL OUTDOOR UNIT AMC125D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION...
  • Page 101 COMPONENTS DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB125D2 MODEL OUTDOOR UNIT ALC61C x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE...
  • Page 102 COMPONENTS DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB150D1 MODEL OUTDOOR UNIT AMC150D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION...
  • Page 103 COMPONENTS DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB150D2 MODEL OUTDOOR UNIT AMC75D x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE...
  • Page 104 COMPONENTS DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB200B2 MODEL OUTDOOR UNIT AMC100B x 2 AMC100C x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE...
  • Page 105 COMPONENTS DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB250B2 MODEL OUTDOOR UNIT AMC125B x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 469.90 / 18.50 mm/in 459.99 / 18.11 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN...
  • Page 106 COMPONENTS DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB300B3 MODEL OUTDOOR UNIT AMC100B x 3 AMC100C x 3 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 469.90 / 18.50 mm/in 459.99 / 18.11 LENGTH mm/in TYPE...
  • Page 107 COMPONENTS DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB350B3 MODEL OUTDOOR UNIT AMC100B x 1 AMC125B x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 469.90 / 18.50 mm/in 459.99 / 18.11 LENGTH mm/in TYPE...
  • Page 108 COMPONENTS DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB400B4 MODEL OUTDOOR UNIT AMC100B x 4 AMC100C x 4 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 591.82 / 23.30 mm/in 563.88 / 22.20 LENGTH mm/in TYPE...
  • Page 109 COMPONENTS DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB500B4 MODEL OUTDOOR UNIT AMC125B x 4 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 591.82 / 23.30 mm/in 563.88 / 22.20 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN...
  • Page 110 COMPONENTS DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB75D MODEL OUTDOOR UNIT A4MC75D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE DIRECT DIAMETER 282.70 / 11.13 mm/in 203.20 / 8.00 LENGTH mm/in TYPE PERMANENT SPLIT CAPACITOR INDOOR FAN QUANTITY MOTOR...
  • Page 111 COMPONENTS DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB100D MODEL OUTDOOR UNIT A4MC100D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE DIRECT DIAMETER 282.70 / 11.13 mm/in 203.20 / 8.00 LENGTH mm/in TYPE PERMANENT SPLIT CAPACITOR INDOOR FAN QUANTITY MOTOR...
  • Page 112 COMPONENTS DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB125D MODEL OUTDOOR UNIT A4MC125D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY MOTOR...
  • Page 113 COMPONENTS DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB150D1 MODEL OUTDOOR UNIT A4MC150D TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY MOTOR...
  • Page 114 COMPONENTS DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB150D2 MODEL OUTDOOR UNIT A4MC75D x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 115 COMPONENTS DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB200D2 MODEL OUTDOOR UNIT A4MC100D x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 394.97 / 15.55 mm/in 381.00 / 15.00 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 116 COMPONENTS DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB250D2 MODEL OUTDOOR UNIT A4MC125D x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 469.90 / 18.50 mm/in 459.99 / 18.11 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 117 COMPONENTS DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB300D2 MODEL OUTDOOR UNIT A4MC150D x 2 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 469.90 / 18.50 mm/in 459.99 / 18.11 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 118 COMPONENTS DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB400D4 MODEL OUTDOOR UNIT A4MC100D x 4 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 591.82 / 23.30 mm/in 563.88 / 22.20 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 119 COMPONENTS DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB500D4 MODEL OUTDOOR UNIT A4MC125D x 4 TYPE CENTRIFUGAL QUANTITY ZINC COATED STEEL MATERIAL INDOOR FAN DRIVE BELT DRIVEN DIAMETER 591.82 / 23.30 mm/in 563.88 / 22.20 LENGTH mm/in TYPE SQUIRREL CAGE INDUCTION INDOOR FAN QUANTITY...
  • Page 120 SAFETY DEVICES DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB200B2 MODEL OUTDOOR UNIT AMC100B x 2 AMC100C x 2 TYPE AUTO RESET 2937167 / 426 HIGH PRESSURE SWITCH OPEN Pa / psi 2413165 / 350 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE...
  • Page 121 SAFETY DEVICES DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB350B3 MODEL OUTDOOR UNIT AMC100B x 1 AMC125B x 2 TYPE AUTO RESET 2937167 / 426 HIGH PRESSURE SWITCH OPEN Pa / psi 2413165 / 350 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE...
  • Page 122 SAFETY DEVICES DATA - COOLING ONLY (R22) B SERIES INDOOR UNIT ADB600B4 MODEL OUTDOOR UNIT AMC150C x 4 TYPE AUTO RESET 2937167 / 426 HIGH PRESSURE SWITCH OPEN Pa / psi 2413165 / 350 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE LOW PRESSURE SWITCH OPEN...
  • Page 123 SAFETY DEVICES DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB75D MODEL OUTDOOR UNIT AMC75D TYPE AUTO RESET 2937167 / 426 HIGH PRESSURE SWITCH OPEN Pa / psi 2413165 / 350 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE LOW PRESSURE SWITCH OPEN Pa / psi...
  • Page 124 SAFETY DEVICES DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB150D1 MODEL OUTDOOR UNIT AMC150D TYPE AUTO RESET HIGH PRESSURE SWITCH 2937167 / 426 OPEN Pa / psi 2413165 / 350 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE 124105.6 / 18 LOW PRESSURE SWITCH OPEN...
  • Page 125 SAFETY DEVICES DATA - COOLING ONLY (R22) D SERIES INDOOR UNIT ADB300D2 MODEL OUTDOOR UNIT AMC150D x 2 AMC300D2 TYPE AUTO RESET 2937167 / 426 HIGH PRESSURE SWITCH OPEN Pa / psi 2413165 / 350 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE LOW PRESSURE SWITCH...
  • Page 126 SAFETY DEVICES DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB75D MODEL OUTDOOR UNIT AMC75D TYPE AUTO RESET 2937167 / 426 HIGH PRESSURE SWITCH OPEN Pa / psi 2413165 / 350 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE...
  • Page 127 SAFETY DEVICES DATA - COOLING ONLY (R22) D SERIES - VERY HIGH STATIC INDOOR UNIT ADB150D1 MODEL OUTDOOR UNIT AMC150D TYPE AUTO RESET 2937167 / 426 HIGH PRESSURE SWITCH OPEN Pa / psi 2413165 / 350 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE...
  • Page 128 SAFETY DEVICES DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB200B2 MODEL OUTDOOR UNIT AMC100B x 2 AMC100C x 2 TYPE AUTO RESET 2937167 / 426 HIGH PRESSURE SWITCH OPEN Pa / psi 2413165 / 350 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE...
  • Page 129 SAFETY DEVICES DATA - COOLING ONLY (R22) DSB B SERIES INDOOR UNIT ADSB400B4 MODEL OUTDOOR UNIT AMC100B x 4 AMC100C x 4 TYPE AUTO RESET 2937167 / 426 HIGH PRESSURE SWITCH OPEN Pa / psi 2413165 / 350 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE...
  • Page 130 SAFETY DEVICES DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB75D MODEL OUTDOOR UNIT A4MC75D TYPE AUTO RESET 3240536 / 470 HIGH PRESSURE SWITCH OPEN Pa / psi 2647587 / 384 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE LOW PRESSURE SWITCH OPEN Pa / psi...
  • Page 131 SAFETY DEVICES DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB150D2 MODEL OUTDOOR UNIT A4MC75D x 2 TYPE AUTO RESET 3240536 / 470 HIGH PRESSURE SWITCH OPEN Pa / psi 2647587 / 384 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE LOW PRESSURE SWITCH OPEN...
  • Page 132 SAFETY DEVICES DATA - COOLING ONLY (R407C) D SERIES INDOOR UNIT ADB400D4 MODEL OUTDOOR UNIT A4MC100D x 4 TYPE AUTO RESET 3240536 / 470 HIGH PRESSURE SWITCH OPEN Pa / psi 2647587 / 384 CLOSE Pa / psi TYPE AUTO RESET SAFETY DEVICE LOW PRESSURE SWITCH OPEN...

  • Page 133: Operating Range

    5. OPERATING RANGE Ensure the operating temperature is in allowable range. Cooling only Caution : The use of your air conditioner outside the range of working LOW AMBIENT KIT temperature and humidity can result in serious failure. Indoor temp. (°CWB)

  • Page 134: Sound Data

    6. SOUND DATA SOUND PRESSURE LEVEL ADB-B SERIES 1/1 Octave Sound Pressure Level (dB, ref 20µPa) Overall A Noise Model Speed (dBA) Criteria 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz ADB200B High ADB250B High ADB300B High ADB350B High ADB400B High ADB450B High ADB500B...
  • Page 135 SOUND POWER LEVEL ADB-B SERIES 1/1 Octave Sound Power Level (dB, reference 1pW) Overall A Model Speed (dBA) 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz ADB200B High ADB250B High ADB300B High ADB350B High ADB400B High ADB450B High ADB500B High ADB600B High ADB750B High...
  • Page 136 ADB200B NC CURVE NC-60 HI FAN NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz) ADB250B NC CURVE NC-60 HI FAN NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)
  • Page 137 ADB300B NC CURVE NC-65 HI FAN NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz) ADB350B NC CURVE HI FAN NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)

  • Page 138: Hi Fan

    ADB400B NC CURVE HI FAN NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz) ADB450B NC CURVE HI FAN NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)

  • Page 139: Hi Fan

    ADB500B NC CURVE HI FAN NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz) ADB600B NC CURVE NC-70 HI FAN NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)
  • Page 140 ADB750B NC CURVE NC-70 HI FAN NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)
  • Page 141 ADB75D NC CURVE ME FAN HI FAN NC-55 NC-50 LO FAN NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz) ADB100D NC CURVE ME FAN HI FAN NC-55 LO FAN NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000...
  • Page 142 ADB125D NC CURVE HI FAN NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz) ADB150D NC CURVE HI FAN NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)

  • Page 143: Nc-60

    ADB200D NC CURVE NC-60 HI FAN NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz) ADB250D NC CURVE NC-60 HI FAN NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)
  • Page 144 ADB300D NC CURVE NC-65 HI FAN NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz) ADB400D NC CURVE NC-65 HI FAN NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)
  • Page 145 ADB500D NC CURVE HI FAN NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)
  • Page 146 ADSB200B NC CURVE NC-55 HI FAN NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz) ADSB250B NC CURVE NC-60 HI FAN NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)
  • Page 147 ADSB300B NC CURVE NC-60 HI FAN NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz) ADSB350B NC CURVE NC-60 HI FAN NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)
  • Page 148 ADSB400B NC CURVE NC-60 HI FAN NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz) ADSB500B NC CURVE HI FAN NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band Frequency (Hz)

  • Page 149: Performance Tables

    7. PERFORMANCE TABLES Interpolation and Extrapolation method can be used to get the total capacity, TC and sensible capacity, SC at those temperatures which are not stated out in the table. Example: Model: ADB75D / AMC75D Indoor Condition: 23°C DB, 15°C WB Outdoor Condition: 37°C DB Solution: Overall...
  • Page 150 Details: Step: To obtain the Total capacity and Sensible capacity for (a) Indoor Condition: 24°C DB, 15°C WB Outdoor Condition: 35°C DB Outdoor DB ° C Indoor DB Indoor WB ° C ° C TC (kW) SC (kW) 20.190 14.762 20.715 14.161 Total capacity, TC...
  • Page 151 Step: To obtain the Total capacity and Sensible capacity for (a) Indoor Condition: 23°C DB, 15°C WB Outdoor Condition: 35°C DB Outdoor DB ° C Indoor DB Indoor WB ° C ° C TC (kW) SC (kW) 19.665 10.808 19.665 15.363 Total capacity, TC ⇒...
  • Page 152 Step: To obtain the Total capacity and Sensible capacity for (a) Indoor Condition: 23°C DB, 15°C WB Outdoor Condition: 37°C DB Outdoor DB ° C Indoor DB Indoor WB ° C ° C TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) 19.665...
  • Page 153 B SERIES (R22) MODEL : ADB200B2 ~ AMC100B x 2 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 56.237 31.657 53.505 29.811 50.773 27.964 48.042 26.118 45.310 24.272 42.031 22.057 61.389 30.791 57.740...
  • Page 154 MODEL : ADB300B3 ~ AMC100B x 3 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 82.921 47.734 79.099 45.241 75.277 42.748 71.455 40.255 67.633 37.762 63.047 34.770 90.974 46.761 85.714 44.039 80.454 41.316...
  • Page 155 MODEL : ADB450B3 ~ AMC150C x 3 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 124.890 81.216 120.018 76.253 115.147 71.289 110.276 66.326 105.404 61.362 99.559 55.406 129.125 78.035 124.477 73.212 119.829 68.389...
  • Page 156 MODEL : ADB600B4 ~ AMC150C x 4 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 170.136 106.043 162.585 99.750 155.034 93.457 147.482 87.164 139.931 80.871 130.869 73.319 177.867 99.925 169.886 94.347 161.904 88.768...
  • Page 157 D SERIES (R22) MODEL : ADB75D ~ AMC75D Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 24.179 14.851 22.674 13.503 21.170 12.156 19.665 10.808 18.160 9.461 16.355 7.844 24.486 13.601 23.054 12.469 21.622...
  • Page 158 MODEL : ADB125D ~ AMC125D Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 40.163 23.237 37.530 21.276 34.897 19.314 32.264 17.352 29.631 15.391 26.472 13.036 41.929 20.953 39.038 19.344 36.147 17.734 33.256 16.125...
  • Page 159 MODEL : ADB150D ~ AMC150D Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 48.758 28.482 45.483 26.093 42.208 23.705 38.933 21.316 35.658 18.927 31.729 16.061 50.808 25.663 47.230 23.778 43.652 21.893 40.074 20.007...
  • Page 160 MODEL : ADB200D2 ~ AMC100D x 2 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 62.146 37.235 58.530 34.414 54.914 31.593 51.299 28.773 47.683 25.952 43.344 22.567 63.920 33.418 60.267 31.283 56.613 29.148...
  • Page 161 MODEL : ADB250D2 ~ AMC125D x 2 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 80.325 46.475 75.060 42.551 69.794 38.628 64.528 34.705 59.263 30.781 52.944 26.073 83.859 41.907 78.076 38.688 72.294 35.469...
  • Page 162 MODEL : ADB300D2 ~ AMC150D x 2 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 97.515 56.964 90.966 52.186 84.416 47.409 77.867 42.632 71.317 37.855 63.457 32.122 101.616 51.327 94.460 47.556 87.304 43.785...
  • Page 163 MODEL : ADB400D4 ~ AMC100D x 4 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 124.292 74.469 117.060 68.828 109.829 63.187 102.597 57.545 95.366 51.904 86.688 45.135 127.840 66.837 120.533 62.567 113.226 58.296...
  • Page 164 ADSB-B SERIES (R22) MODEL : ADSB200B2 ~ AMC100B x 2 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 56.237 31.657 53.505 29.811 50.773 27.964 48.042 26.118 45.310 24.272 42.031 22.057 61.389 30.791 57.740...
  • Page 165 MODEL : ADSB300B3 ~ AMC100B x 3 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 82.921 47.734 79.099 45.241 75.277 42.748 71.455 40.255 67.633 37.762 63.047 34.770 90.974 46.761 85.714 44.039 80.454 41.316...
  • Page 166 MODEL : ADSB500B4 ~ AMC125B x 4 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 147.131 83.394 139.085 78.194 131.040 72.994 122.994 67.794 114.949 62.594 105.294 56.354 158.189 76.780 148.239 72.263 138.289 67.747...
  • Page 167 D SERIES (R407C) MODEL : ADB75D ~ A4MC75D Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 23.534 14.251 22.070 12.940 20.605 11.628 19.141 10.317 17.676 9.005 15.919 7.431 23.833 13.034 22.439 11.933 21.045...
  • Page 168 R407C MODEL : ADB125D ~ A4MC125D Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 34.701 18.380 32.426 16.685 30.151 14.990 27.876 13.295 25.601 11.601 22.872 9.567 36.227 16.407 33.729 15.016 31.231 13.626 28.733...
  • Page 169 R407C MODEL : ADB150D2 ~ A4MC75D x 2 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 47.073 28.489 44.144 25.867 41.214 23.245 38.285 20.623 35.356 18.000 31.841 14.854 47.671 26.057 44.883 23.855 42.095...
  • Page 170 R407C MODEL : ADB250D2 ~ A4MC125D x 2 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 69.401 36.761 64.852 33.371 60.302 29.981 55.752 26.591 51.203 23.201 45.743 19.133 72.454 32.814 67.458 30.033 62.462...
  • Page 171 R407C MODEL : ADB400D4 ~ A4MC100D x 4 Outdoor DB°C ID DB°C ID WB°C TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) TC(kW) SC(kW) 113.105 64.388 106.525 59.254 99.944 54.121 93.364 48.987 86.783 43.853 78.886 37.693 116.335 57.442 109.685 53.556 103.035...

  • Page 172: Fan Performance Charts

    8. FAN PERFORMANCE CHART Example 1 : The following are the design requirements for ADB250D2 unit: Model: ADB250D2 Supply Air Quantity 8000 External Static Pressure mmAq Step 1: From the fan curve (at 4500 CFM), Standard operating system; Total Static Pressure 46.5 mmAq Internal Static Pressure...
  • Page 173 The following table summarizes the pulley data, motor size used for the ADB series, as manufactured: Motor pulley, Dm Blower pulley, Db Model V-pulley Taper # V-pulley Taper # (in.) (mm) (in.) (mm) ADB200B / ADSB200B ADB250B / ADSB250B 12.0 ADB300B / ADSB300B 12.0 ADB350B / ADSB350B...
  • Page 174 Example 1: FAN PERFORMANCE CURVE ADB250D...
  • Page 175 FAN PERFORMANCE CURVE ADB200B/ADSB200B...
  • Page 176 FAN PERFORMANCE CURVE ADB250B/ADSB250B...
  • Page 177 FAN PERFORMANCE CURVE ADB300B/ADSB300B...
  • Page 178 FAN PERFORMANCE CURVE ADB350B/ADSB350B...
  • Page 179 FAN PERFORMANCE CURVE ADB400B/ADSB400B...
  • Page 180 FAN PERFORMANCE CURVE ADB450B...
  • Page 181 FAN PERFORMANCE CURVE ADB500B/ADSB500B...
  • Page 182 FAN PERFORMANCE CURVE ADB600B...
  • Page 183 FAN PERFORMANCE CURVE ADB750B...
  • Page 184 FAN PERFORMANCE CURVE ADB75D...
  • Page 185 FAN PERFORMANCE CURVE ADB100D...
  • Page 186 FAN PERFORMANCE CURVE ADB125D...
  • Page 187 FAN PERFORMANCE CURVE ADB150D...
  • Page 188 FAN PERFORMANCE CURVE ADB200D...
  • Page 189 FAN PERFORMANCE CURVE ADB250D...
  • Page 190 FAN PERFORMANCE CURVE ADB300D...
  • Page 191 FAN PERFORMANCE CURVE ADB400D...
  • Page 192 FAN PERFORMANCE CURVE ADB500D...
  • Page 193 FAN PERFORMANCE CURVE ADB75D VERY HIGH STATIC...
  • Page 194 FAN PERFORMANCE CURVE ADB100D VERY HIGH STATIC...
  • Page 195 FAN PERFORMANCE CURVE ADB125D VERY HIGH STATIC...
  • Page 196 FAN PERFORMANCE CURVE ADB150D VERY HIGH STATIC...

  • Page 197: Outlines And Dimensions

    9. OUTLINES AND DIMENSIONS INDOOR ADB~B SERIES MODEL : ADB200B2 NOTE : FOR VERTICAL AIR DISCHARGE Dimension in mm MODEL : ADB250/300B2 NOTE : FOR VERTICAL AIR DISCHARGE Dimension in mm...
  • Page 198 MODEL : ADB300B3 NOTE : FOR VERTICAL AIR DISCHARGE Dimension in mm MODEL : ADB350B3 NOTE : FOR VERTICAL AIR DISCHARGE Dimension in mm...
  • Page 199 MODEL : ADB400/500B4, ADB450B3 NOTE : FOR VERTICAL AIR DISCHARGE Note : ADB200-500B models are available in vertical air discharge as standard; Convertible at field. Dimension in mm MODEL : ADB600B4 *CAN CUSTOMIZE TO TO HORIZONTAL OR VERTICAL AIR DISCHARGE; NOT CONVERTIBLE AT FIELD NOTE : FOR VERTICAL AIR DISCHARGE Dimension in mm...
  • Page 200 MODEL : ADB750B5 *CAN CUSTOMIZE TO TO HORIZONTAL OR VERTICAL AIR DISCHARGE; NOT CONVERTIBLE AT FIELD NOTE : FOR VERTICAL AIR DISCHARGE Dimension in mm...
  • Page 201 ADB ~ D SERIES MODEL : ADB 75D Dimension in mm MODEL : ADB 100D Dimension in mm...
  • Page 202 MODEL : ADB 125D Dimension in mm MODEL : ADB 125D2 Dimension in mm...
  • Page 203 MODEL : ADB 150D1 Dimension in mm MODEL : ADB 150D2 Dimension in mm...
  • Page 204 MODEL : ADB 200D2 Dimension in mm MODEL : ADB 250D2 Dimension in mm...
  • Page 205 MODEL : ADB 300D2 Dimension in mm MODEL : ADB 400D4 Dimension in mm...
  • Page 206 MODEL : ADB 500D4 Note : ADB200-500D4 models are available in vertical air discharge as standard; Convertible at field. Dimension in mm...
  • Page 207 MODEL : ADSB 200B Dimension in mm MODEL : ADSB 250B2 Dimension in mm...
  • Page 208 MODEL : ADSB 300B3 Dimension in mm MODEL : ADSB 350B3 Dimension in mm...
  • Page 209 MODEL : ADSB 400/500B4 Dimension in mm...
  • Page 210 OUTDOOR MODEL : AMC 75 / 100 / 125B NOTE : FOR VERTICAL AIR DISCHARGE Dimension in mm MODEL : AMC 75C Dimension in mm...
  • Page 211 MODEL : AMC 100C Dimension in mm MODEL : AMC 150C Dimension in mm...
  • Page 212 MODEL : A(4)MC 75 / 100D Dimension in mm MODEL : A(4)MC 125D Dimension in mm...
  • Page 213 MODEL : A(4)MC 150D Dimension in mm MODEL : AMC 200D2 Dimension in mm...
  • Page 214 MODEL : AMC 250 / 300D2 Dimension in mm MODEL : ALC 61C Dimension in mm...

  • Page 215: Refrigerant Circuit Diagram

    10. REFRIGERANT CIRCUIT DIAGRAM STANDARD MODELS...
  • Page 216 MODEL : AMC200D2 / 250D2 / 300D2 (WITH ACCUMULATOR)

  • Page 217: Wiring Diagrams

    11. WIRING DIAGRAMS COOLING UNIT MODEL : ADB 75D vs A(4)MC75D...
  • Page 218 MODEL : ADB 100D vs A(4)MC 100D...
  • Page 219 MODEL : ADB 125D vs A(4)MC 125D...
  • Page 220 MODEL : ADB 125D2 vs ALC 61C x 2...
  • Page 221 MODEL : ADB 150D1 vs A(4)MC 150D...
  • Page 222 MODEL : ADB 200B2 vs AMC 100B x 2 ADB 150D2 vs A(4)MC 75D x 2 ADB 200B2 vs AMC 100C x 2 ADB 200D2 vs A(4)MC 100D x 2 ADB 250B2 vs AMC 125B x 2 ADB 250D2 vs A(4)MC 125D x 2...
  • Page 223 MODEL : ADB 200D2 vs AMC 200D2 ADB 250D2 vs AMC 250D2...
  • Page 224 MODEL : ADB 300B2 vs AMC 150C x 2 ADB 300D2 vs A(4)MC 150D x 2...
  • Page 225 MODEL : ADB 300D2 vs AMC 300D2...
  • Page 226 MODEL : ADB 300B3 vs AMC 100B x 3 ADB 300B3 vs AMC 100C x 3 ADB 350B3 vs AMC 125B x 2 + AMC 100B...
  • Page 227 MODEL : ADB 450B3 vs AMC 150C x 3...
  • Page 228 MODEL : ADB 400B4 vs AMC 100B x 4 ADB 400B4 vs AMC 100C x 4 ADB 400D4 vs A(4)MC 100D x 4 ADB 500D4 vs A(4)MC 125D x 4...
  • Page 229 MODEL : ADB 600B4 vs AMC 150C x 4...
  • Page 230 MODEL : ADB 700B5 vs AMC 150C x 5 (WITH MAGNETIC CONTACTOR AS STANDARD)

  • Page 231: Controllers

    12. CONTROLLERS ELECTRICAL CONNECTION Wiring regulations about wire diameter differs from country to country. Please refer to your LOCAL ELECTRICAL CODES for field wiring rules. Be sure that installation comply with such rules and regulations. GENERAL PRECAUTION Ensure that the rated voltage of the unit correspond to the name plate before carrying out proper wiring according to the wiring diagram.
  • Page 232 2.2 Selecting Operation Mode Press the MODE key to select the type of operating mode. Consecutive press of the key switches the operation over “COOL”, “HEAT”, “AUTO” and “FAN” 2.3 SAVE Mode Press the SAVE key to select the energy saving function. This option is only available for “COOL”, “HEAT”...
  • Page 233 3. ERROR CODE When the system is on and an error occurs, the ON/OFF LED on the LCD panel will blink and an error code is shown. When the system is off and there is a thermistor error, the ON/OFF LED is off but the error code is still displayed.
  • Page 234 5. AUTO RANDOM RESTART When power resumed, the unit will automatically restart and operate at the previous setting as before power failure occurred. (Remove jumper at JH/JP1 will cancel the auto random restart function. Please refer to wiring diagram for the location of the JH/JP1). SEQUENTIAL CONTROLLER SPECIFICATIONS The controller can be configured to suit individual’s need with details below : Model Selection...
  • Page 235 The default differential temperature is base on number of compressor model, the setting is as below : Model Diff. Temperature 1 compressor Not applicable 2 compressor 1.5°C 3 compressor 1.0°C 4 compressors 0.5°C 5. Hot Keep Option Dip switch 6 a.
  • Page 236 AC-5300 (OPTIONAL) 1. “ON/OFF” switch 6. “Sleep” mode • Press to start the air conditioner unit. • Press button to activate the sleep function can • Press again to stop the unit. only be activated under “cool” or heating mode operation.

  • Page 237: Installation

    13. INSTALLATION SPECIAL PRECAUTIONS WHEN DEALING WITH REFRIGERANT R407C UNIT 1) WHAT IS NEW REFRIGERANT R407C? R407C is a zeotropic refrigerant mixture which has Zero Ozone Depletion Potential (ODP = 0) and thus conformed to the Montreal Protocol regulation. It requires Polyol-ester oil (POE) oil for its compressor’s lubricant.
  • Page 238 c) Ensure that the compressor is not expose to open air for more than the recommended time specified by its manufacturer (typically less than 10 minutes). Removed the seal plugs only when the compressor is about to be brazed. d) The system should be thoroughly vacuumed to 1.0 Pa ( 700mmHg) or lower. This vacuuming level is more stringent than R22 system so as to ensure no incompressible gas and moisture in the system.
  • Page 239 INDOOR UNIT PRELIMINARY SITE SURVEY a) Electrical supply and installation is to confirm to local authority's (e.g. National Electricity Board) codes and regulations. b) Voltage supply fluctuation must not exceed +/- 10% of rated voltage. Electricity supply line must be indepen- dent of welding transformers which can cause supply fluctuation.
  • Page 240 OUTDOOR UNIT LOCATION FOR INSTALLATION OF THE CONDENSING UNITS As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to achieve maximum cooling capacity, the location selected should fulfill the following requirements:- a) Install the condensing (outdoor) unit in a way such that hot air distributed by the outdoor condensing unit cannot be drawn in again (as in the case of short circuit of hot discharge air).
  • Page 241 FIELD PIPING To ensure satisfactory operation and performance, the following points should be noted for the field piping arrangements of the complete refrigerant cycle. a) Liquid loops or oil traps must be provided according to the position of the outdoor and the indoor units (depending on whether the indoor unit is above or below the outdoor unit).
  • Page 242 INSTALLATION CLEARANCE When two or more outdoor units are installed in a location, they must be positioned such that one unit will not be taking the hot discharge air from another to avoid hot air short circuiting. This also applies when two or more units are installed one above the other. Below are the installation clearance guidelines : Model AMC 75B...
  • Page 243 GUIDELINES OF FIELD-CHARGING AIR CONDITIONING SYSTEMS WITH SCROLL COMPRESSORS These guidelines are intended for use with Scroll compressors only with R22, R407C, R134a, R404A, R507, and R410A refrigerants. They do not apply to reciprocating compressors or competitive Scroll compressors. FIELD-CHARGING - SOME PRECAUTION POINTS Scroll compressors have a very high volumetric efficiency and quickly pump a deep vacuum if there is insuffi- cient refrigerant in the system or if refrigerant is added too slowly.
  • Page 244 Typical service valves Shredder valves found on the outdoor unit Shredder core Shredder valve with Shredder valve with core removed core in place Most split systems have a suitable connection on the outdoor unit Shredder valves provide easy system access for pressure reading and addition of refrigerant. On small sys- tems, they provide a reasonable connection for evacuation also.
  • Page 245 CHARGING RECOMMENDATIONS Charging liquid in a CONTROLLED manner into the suction side until the system is full. This recommen- dation does not hold true for reciprocating compressors where liquid charging into the suction side could cause severe damage. Charging Cylinder on Scale Close-up of Scale Carefully monitor the suction and discharge pressures - ensure that the suction pressure does not fall below 25 psig (1.7 bar) at any time during the charging process.
  • Page 246 SYSTEM REFRIGERANT CHARGE LEVEL GUIDELINES Refrigerant Charge Indoor Outdoor Liquid Pipe Gas Pipe (kg/7.5m pipe length) ADB200B2 AMC100B x 2 1-1/8 7.60 x 2 ADB200B2 AMC100C x 2 1-1/8 7.00 x 2 ADB250B2 AMC125B x 2 1-3/8 7.95 x 2 ADB300B2 AMC150C x 2 1-3/8...

  • Page 247: Servicing And Maintenance

    14. SERVICING AND MAINTENANCE The design concept of the Condensing Unit is such that all servicing can be done from the front and side of the unit. Upon removal of front and side panel, all the electrical “terminal box”, fan and motor assembly and compressor are easily accessible.

  • Page 248: Troubleshooting

    15. TROUBLESHOOTING When a malfunction of the air conditioner unit is detected, immediately switch off the main power supply before proceeding with the following troubleshooting procedures. The following are common fault conditions and simple troubleshooting tips. If any other fault conditions which are not listed occur, contact your nearest local dealer.
  • Page 249 Diagnostic Guidelines By means of pressure reading: Pressure Data Probable cause Circuit High side ● 1. Overcharged with refrigerant. Low side ● 2. Non-condensable gases in refrigerant circuit (e.g. air) 3. Obstructed air-intake / discharge. 4. Hot air short circuiting in outdoor unit. High side ●...
  • Page 250 By means of diagnostic flow chart: Generally, there are two kinds of problems, i.e. starting failure and insufficient cooling/heating. “Starting failure” is caused by electrical defect while improper application or defects in refrigerant circuit causes “Insufficient cooling / heating”. i) Diagnosis of Electric Circuit The most common causes of air conditioner failure to “start”...
  • Page 251 ii ) Diagnosis of Refrigerant Circuit / Application There might be some causes where the unit starts running but does not perform satisfactorily, i.e. insufficient cooling. Judgement could be made by measuring temperature difference of indoor unit’s intake and discharge air as well as running current.
  • Page 252 Satisfactory operation with temperature difference of air intake & discharge of indoor unit 14°C to 20°C. * ( * value is for reference only )

  • Page 253: Exploded View And Parts List

    16. EXPLODED VIEW AND PARTS LIST INDOOR MODELS MODEL : ADB200B2 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015002696 ASSY, PANEL SMALL SIDE L A50014022067 BLOWER A50034023308 ASSY, TER. BOX A50044059458 SUPT, BLOWER L A01014003028 ASSY, PANEL F A50015004235 SUPT, BLOWER R A01014036202...
  • Page 254 MODEL : ADB250 / 300 B2 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015003916 PANEL, SIDE L A01015003988 BLOWER A50034023752 COVER, COIL SIDE R A01015004065 SUPT, BLOWER L A01014004057 PANEL, SMALL SIDE R SUPT, BLOWER L A01014004057 A01015041823 ADB 250B2 PULLEY, 2 SPZ 180/2012...
  • Page 255 MODEL : ADB300B3 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015003916 PANEL, SMALL SIDE R A01015041823 BLOWER A50034023752 ASSY, PANEL F A50015004073 SUPT, BLOWER L A01014004057 FLANGE, BLOWER T/B A01015003899 SUPT, BLOWER L A01014004057 FLANGE, BLOWER L/R A01015003900 PULLEY, 2 SPZ 180/2012 A03044039720...
  • Page 256 MODEL : ADB350B3 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015004504 PANEL, SMALL SIDE R A01014004623 BLOWER A50034023752 ASSY, PANEL F A50015005897 BLOWER, SUPT L A01014037510 FLANGE, BLOWER L/R A01015003900 BLOWER, SUPT R A01014004738 FLANGE, BLOWER T/B A01015003899 PULLEY, 2 SPZ 250/2012 A03044039722...
  • Page 257 MODEL : ADB400B4 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015004502 PANEL, BACK SIDE R A01015069361 BLOWER A50034023753 PANEL, SIDE FRONT L/R A01015004438 SUPT, BLOWER L A01014029728 ASSY, PANEL F A50015004518 SUPT, BLOWER R A01014004423 FLANGE, BLOWER L/R A01015004523 SUPT, BLOWER F/B A01014004670...
  • Page 258 MODEL : ADB450B3 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015004502 PANEL, SIDE BACK R A01015023963 BLOWER A50034023753 PANEL, SIDE FRONT L/R A01015004438 SUPT, BLOWER L A01014029728 ASSY, PANEL F A50015004518 SUPT, BLOWER R A01014004423 FLANGE, BLOWER L/R A01015004523 SUPT, BLOWER F/B A01014004670...
  • Page 259 MODEL : ADB500B4 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015004502 PANEL, SIDE BACK R HEADER A01015069362 BLOWER A50034023753 PANEL, SIDE FRONT L/R A01015004438 SUPT, BLOWER L A01014029728 ASSY, PANEL F A50015004518 SUPT, BLOWER R A01014004423 FLANGE, BLOWER L/R A01015004523 SUPT, BLOWER F/B A01014004670...
  • Page 260 MODEL : ADB600B4 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015028988 PANEL, SIDE BACK R A50015071857 BLOWER A50034030049 PANEL, SIDE FRONT L A50015029927 PANEL , BLOWER DUCT L/R A01014029005 PANEL, SIDE FRONT T/R A50015031748 PANEL , BLOWER DUCT L/R A01014029005 FLANGE, BLOWER F/B A01015028994...
  • Page 261 MODEL : ADB750B5 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015028988 PANEL, SIDE BACK R A50015029929 BLOWER A50034030049 PANEL, SIDE FRONT L A01014029003 PULLEY, 3 SPA 400/3020 A03044039737 ASSY, PANEL FRONT L/R A50015029007 BELT A03054039751 PANEL, TOP BIG A01015029011 PANEL, BLOWER DUCT F/B A01013028996...
  • Page 262 MODEL : ADB75D DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50019014207 ASSY, DRAIN PAN A50019014208 ASSY, PANEL FRONT A50019014209 ASSY, COIL A50024064045 ASSY, BLOWER FLANGE A50019014210 COVER, COIL SIDE R A01019014222 MOTOR BRACKET A01024008152 COVER, COIL SIDE L A01019014221 MOTOR A03039019596...
  • Page 263 MODEL : ADB100D DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50019014212 ASSY, DRAIN PAN A50019014213 ASSY, PANEL F A50019014214 ASSY, COIL A50024064051 ASSY, BLOWER FLANGE A50019014210 COVER, COIL SIDE R A01019014222 MOTOR BRACKET A01024008152 COVER, COIL SIDE L A01019014221 MOTOR A03039019598...
  • Page 264 MODEL : ADB125D DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015043092 ASSY, DRAIN PAN A50015043100 BLOWER A50034023308 ASSY, COIL A50024048909 SUPT, BLOWER BRACKET L A01014043099 COVER, COIL L A01015043540 SUPT, BLOWER BRACKET R A01014043098 PANEL, SIDE L A01015043106 BASE, MOTOR LOWER A01014003797...
  • Page 265 MODEL : ADB125D2 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015043092 ASSY, DRAIN PAN A50015043100 BLOWER A50034023308 ASSY, COIL A50024048909 SUPT, BLOWER BRACKET L A01014043099 COVER, COIL L A01015043540 SUPT, BLOWER BRACKET R A01014043098 PANEL, SIDE L A01015043106 BASE, MOTOR LOWER A01014003797...
  • Page 266 MODEL : ADB150D DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015048066 ASSY, DRAIN PAN A50015048071 BLOWER A50034023308 ASSY, COIL A50024064066 SUPT, BLOWER BRACKET L A01014043099 COVER, COIL L A01015043540 SUPT, BLOWER BRACKET R A01014043098 PANEL, SIDE L A01015043106 BASE, MOTOR LOWER A01014003797...
  • Page 267 MODEL : ADB150D2 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015048066 ASSY, DRAIN PAN A50015048071 BLOWER A50034023308 ASSY, COIL A50024064066 SUPT, BLOWER BRACKET L A01014043099 COVER, COIL L A01015043540 SUPT, BLOWER BRACKET R A01014043098 PANEL, SIDE L A01015043106 BASE, MOTOR LOWER A01014003797...
  • Page 268 MODEL : ADB200D2 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015040839 ASSY, COIL L A50024064069 SUPT, BLOWER L A01014040877 ASSY, COIL R A50024064070 SUPT, BLOWER R A01014040876 ASSY, PANEL F A50015041868 BLOWER A50034023308 COVER, BLOWER A01015041483 PULLEY, BLOWER A03044039717 PANEL, HEADER L A01015040857...
  • Page 269 MODEL : ADB250D2 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015042065 ASSY, COIL L A50024043348 SUPT, BLOWER L A01014042079 ASSY, COIL R A50024043345 SUPT, BLOWER R A01014042078 ASSY, PANEL F A50015042092 BLOWER A50034023752 COVER, BLOWER A01015042148 PULLEY, 2 SPZ 180/2012 A03044039720 ASSY, HEADER PANEL L A50015047530...
  • Page 270 MODEL : ADB300D2 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015042397 ASSY, COIL L A50024064083 SUPT, BLOWER L A01014042079 ASSY, COIL R A50024064084 SUPT, BLOWER R A01014042078 ASSY, PANEL F A50015042092 BLOWER A50034023752 COVER, BLOWER A01015042148 PULLEY, 2 SPZ 250/2012 A03044039722 ASSY, HEADER PANEL L A50015047530...
  • Page 271 MODEL : ADB400D4 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015042540 ASSY, COIL T/L A50024043479 SUPT, BLOWER L A01014042562 ASSY, COIL BT R A50024043471 SUPT, BLOWER R A01014042561 ASSY, COIL T/R A50024043472 BLOWER A50034023753 ASSY, PANEL F A50015042549 PULLEY, 2 SPZ 315/2012 A03044040062...
  • Page 272 MODEL : ADB500D4 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50015043130 ASSY, COIL T/L A50024043616 SUPT, BLOWER L A01014042562 ASSY, COIL BT R A50024043613 SUPT, BLOWER R A01014042561 ASSY, COIL T/R A50024043614 BLOWER A50034023753 ASSY, PANEL F A50015042549 PULLEY, 3 SPA 250/2517 A03049012646...
  • Page 273 Outdoor Models MODEL : AMC100B / 125B DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50014035088 FAN GUARD A01024035874 COMPRESSOR COVER, TER. BOARD FRONT A01014025656 AMC100B A50049004677 HOISTING BRACKET A01014034655 AMC125B A50049007081 STRUC. TUBE SUPT. ASSY, STRUC. BACK L A50014035878 AMC100B A01014035298...
  • Page 274 MODEL : AMC100C DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, PANEL BASE A50014035199 PANEL, ORIFICE A01013027051 ASSY, COIL A50023027085 MOTOR A03034027520 PANEL, FRONT L A01013027061 FAN PROPELLER A03019021350 ASSY, PARTITION A50014057565 FAN GUARD A01024022786 COMPRESSOR A50049004677 PANEL, TOP A01013027050 PANEL, VALVE A01014027060 TER.BOX COVER...
  • Page 275 MODEL : AMC150C DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50014034530 TER. BOX COVER A01014083389 COMPRESSOR A50049004679 PANEL, ORIFICE A01014022390 STRUC, PIPE SUPT. A01014034534 FAN MOTOR BRACKET A01024023059 ASSY, ACCESS VALVE A50054028348 MOTOR A03034027520 SUPT, TUBE LIQUID A01014023152 FAN PROPELLER A03019021350...
  • Page 276 MODEL : AMC75D / 100D DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50014058171 CLAMP, TUBE LIQUID COMPRESSOR AMC75D A01014024030 AMC75D A50049004676 AMC100D A01014023149 AMC100D A50049004677 CLAMP, TUBE GAS STRUC. TUBE SUPT AMC75D A01014024033 AMC75D A01014044386 AMC100D A01014024034 AMC100D A01014046135 STRUC, FRONT L...
  • Page 277 MODEL : AMC125 / 150D DESCRIPTION PART NO. NO. DESCRIPTION PART NO. 1 ASSY, BASE PAN 12 CLAMP, TUBE LIQUID A01014023149 AMC125D A50014058140 13 CLAMP, GAS TUBE A01014023150 AMC150D A50014057654 14 STRUC, FRONT L 2 COMPRESSOR AMC125D A01014069646 AMC125D A50049007081 AMC150D A50014070586 AMC150D...
  • Page 278 MODEL : AMC200D2 / 250D2...
  • Page 279 MODEL : AMC200D2 / 250D2 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY. PANEL BASE A50014065763 SUPT, LIQUID TUBE A01014066994 STRUC, COIL STRUC, FRONT L A01014065766 AMC200D2 A01014065765 STRUC, FRONT R AMC250D2 A01014064628 AMC200D2 A01014065767 STRUCT, BACK L AMC250D2 A01014064632 AMC200D2 A01014065768 SEPARATOR...
  • Page 280 MODEL : AMC300D2 DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, PANEL BASE A50014064679 SUPT, TUBE LIQUID A01014066563 STRUC, COIL A01014064628 STRUC, FRONT L A01014065458 STRUC, BACK L A01014064629 STRUC, FRONT R A01014065459 ASSY. COIL L BOTTOM MAIN A50029020523 SEPARATOR A01014064654 ASSY.
  • Page 281 MODEL : ALC 61C DESCRIPTION PART NO. NO. DESCRIPTION PART NO. ASSY, BASE PAN A50014053238 MOTOR A03039016103 FLARE VALVE (LIQUID) A50059000070 PROPELLER FAN A03013028160 FLARE VALVE 3 WAY A50059003794 FRONT PANEL A01014051758 PANEL, PARTITION A50014051773 VALVE PLATE A01013029901 COMPRESSOR A50049004675 Parts not in diagram SERVICE PANEL A01010029898...
  • Page 282 While upmost care is taken in ensuring that all details in the publication are correct at time of going to press, we are constantly striving for improvement and therefore reserve the rights to alter model specifications and equipment without prior notice. Details of specifications and equipment are also subject to change to suit local conditions and equipments and not all models are available in every market.
