Acson international ACC 10 C/CR Manual

Ceiling concealed split systems
Hide thumbs

Advertisement

Table of Contents

Models:
ACC 10 C/CR
ACC 15 C/CR
ACC 20 C/CR
ACC 25 C/CR
ACC 30 C/CR
ACC 40 C/CR
ACC 50 C/CR
ACC 60 C/CR
Ceiling Concealed
Split Systems
Manual No: TMA-ACC-CR-1200C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACC 10 C/CR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acson international ACC 10 C/CR

Summary of Contents for Acson international ACC 10 C/CR

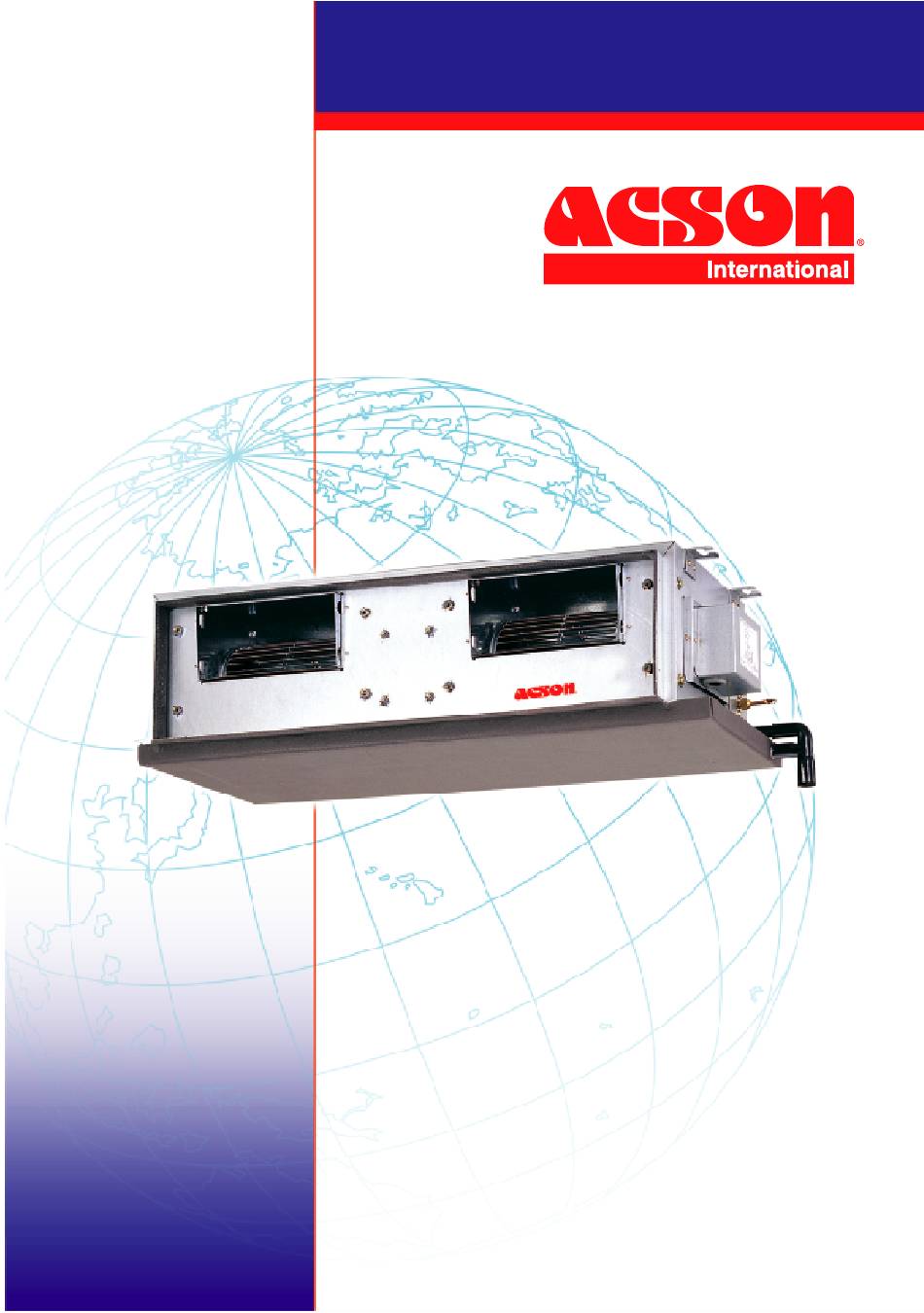

  • Page 1 Models: ACC 10 C/CR ACC 15 C/CR ACC 20 C/CR ACC 25 C/CR ACC 30 C/CR ACC 40 C/CR ACC 50 C/CR ACC 60 C/CR Ceiling Concealed Split Systems Manual No: TMA-ACC-CR-1200C...

  • Page 2: Table Of Contents

    CONTENTS 1. FEATURES ......................... 3 2. SPECIFICATIONS .......................4 3. NOISE LEVEL ......................12 4. OPERATION RANGE ....................12 5. PERFORMANCE TABLE ...................13 6. FAN PERFORMANCE CURVE ..................15 7. OUTLINES AND DIMENSIONS ................. 17 8. WIRING DIAGRAMS ....................21 9. SPECIAL PRECAUTIONS FOR R407C ..............51 10.

  • Page 3: Features

    1. FEATURES SPACE SAVING, ELEGANCE AND PRESTIGE The unit is installed above the ceiling with only the supply and return air grille exposed to view. This ceiling concealed type of design has made it an “Evergreen” model without sacrificing the precious floor space. The air-conditioned space will appear as elegant and prestigious as centralized air-conditioned area but with only a fraction of the cost.

  • Page 4: Specifications

    2. SPECIFICATIONS CEILING CONCEALED COOLING ONLY MODELS MODEL INDOOR UNIT ACC 10C ACC 15C ACC 20C ACC 25C OUTDOOR UNIT ALC 10B ALC 15B ALC 20B ALC 25B NOMINAL kcal/h 2,444 3,200 4,914 6,300 COOLING 2,843 3,722 5,715 7,327 CAPACITY Btu/h 9,700 12,700...
  • Page 5 CEILING CONCEALED COOLING ONLY MODELS MODEL INDOOR UNIT ACC 30C ACC 40C ACC 50C ACC 60C OUTDOOR UNIT ALC 30C ALC 40C ALC 50C ALC 60C NOMINAL kcal/h 7,560 10,080 12,600 15,120 COOLING 8,790 11,720 14,650 17,580 CAPACITY Btu/h 30,000 40,000 50,000 60,000...
  • Page 6 CEILING CONCEALED HEAT PUMP MODELS MODEL INDOOR UNIT ACC 10CR ACC 15CR ACC 20CR ACC 25CR OUTDOOR UNIT ALC 10BR ALC 15BR ALC 20BR ALC 25BR NOMINAL kcal/h 2,394 3,200 4,788 5,796 COOLING 2,784 3,722 5,569 6,741 CAPACITY Btu/h 9,500 12,700 19,000 23,000...
  • Page 7 CEILING CONCEALED HEAT PUMP MODELS MODEL INDOOR UNIT ACC 30CR ACC 40CR ACC 50CR ACC 60CR OUTDOOR UNIT ALC 30CR ALC 40CR ALC 50CR ALC 60CR NOMINAL kcal/h 7,560 10,080 12,600 14,620 COOLING 8,790 11,720 14,650 16,990 CAPACITY Btu/h 30,000 40,000 50,000 58,000...
  • Page 8 CEILING CONCEALED COOLING ONLY MODELS (R407C) MODEL INDOOR UNIT ACC 10C ACC 15C ACC 20C ACC 25C OUTDOOR UNIT A4LC 10B A4LC 15B A4LC 20B A4LC 25B NOMINAL kcal/h 2,268 2,772 4,612 5,292 COOLING 2,637 3,223 5,363 6,155 CAPACITY Btu/h 9,000 11,000 18,300...
  • Page 9 CEILING CONCEALED COOLING ONLY MODELS (R407C) MODEL INDOOR UNIT ACC 30C ACC 40C ACC 50C OUTDOOR UNIT A4LC 30C A4LC 40C A4LC 50C NOMINAL kcal/h 7,560 9,576 12,600 COOLING 8,790 11,134 14,650 CAPACITY Btu/h 30,000 38,000 50,000 POWER SOURCE V/Ph/Hz 220 - 240 / 1 / 50 REFRIGERANT / CONTROL R407C / CAPILLARY TUBE (OUTDOOR) + (TXV)
  • Page 10 CEILING CONCEALED HEAT PUMP MODELS (R407C) MODEL INDOOR UNIT ACC 10CR ACC 15CR ACC 20CR ACC 25CR OUTDOOR UNIT A4LC 10BR A4LC 15BR A4LC 20BR A4LC 25BR NOMINAL kcal/h 2,268 2,772 4,536 5,170 COOLING 2,637 3,223 5,274 6,008 CAPACITY Btu/h 9,000 11,000 18,000...
  • Page 11 CEILING CONCEALED HEAT PUMP MODELS (R407C) MODEL INDOOR UNIT ACC 30CR ACC 40CR ACC 50CR OUTDOOR UNIT A4LC 30CR A4LC 40CR A4LC 50CR NOMINAL kcal/h 7,310 9,830 12,100 COOLING 8,499 11,430 14,068 CAPACITY Btu/h 29,000 39,000 48,000 NOMINAL kcal/h 7,812 10,332 12,600 HEATING...

  • Page 12: Noise Level

    125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz Ave. ACC 10 C/CR ACC 15 C/CR ACC 20 C/CR ACC 25 C/CR ACC 30 C/CR ACC 40 C/CR ACC 50 C/CR ACC 60 C/CR MICROPHONE POSITION : ACC10 ~ 25 C/CR –...

  • Page 13: Performance Table

    5. PERFORMANCE TABLE MODEL : ACC10C/ALC10B Indoor DB Indoor WB Capacity Outdoor DB, ° C ° C ° C 19.4 26.7 13.9 2.532 2.424 2.328 2.231 2.134 2.018 2.532 2.424 2.328 2.231 2.134 2.018 2.765 2.617 2.485 2.353 2.221 2.063 2.492 2.382 2.284...
  • Page 14 MODEL : ACC20C/ALC20B Indoor DB Indoor WB Capacity Outdoor DB, ° C ° C ° C 19.4 26.7 13.9 5.264 5.010 4.783 4.556 4.330 4.058 4.788 4.634 4.497 4.360 4.223 4.058 5.607 5.313 5.051 4.788 4.526 4.211 4.749 4.585 4.439 4.292 4.146 3.970...

  • Page 15: Fan Performance Curve

    6. FAN PERFORMANCE CURVES External Static Pressure (mmAq) Model Fan Speed (CFM) High ACC10C Medium High ACC15C Medium High ACC20C Medium High 1060 1023 ACC25C Medium MODEL : ACC30C MODEL : ACC40C...
  • Page 16 MODEL : ACC50C MODEL : ACC60C...

  • Page 17: Outlines And Dimensions

    7. OUTLINES AND DIMENSIONS INDOOR UNIT MODEL : ACC10 C/CR All dimensions are in mm MODEL : ACC15 ~ 25 C/CR All dimensions are in mm Model ACC15C/CR 881.0 225.0 842.0 802.0 261.0 411.0 351.0 905.0 ACC20C/CR 1041.0 225.0 1002.0 962.0 261.0 411.0...
  • Page 18 MODEL : ACC30 ~ 60 C/CR All dimensions are in mm Model ACC30 C/CR 929.0 999.0 956.0 917.0 408.5 378.0 541.0 256.0 173.0 311.0 70.5 ACC40 C/CR 1045.0 1115.0 1072.0 1033.0 466.5 378.0 541.0 256.0 173.0 311.0 128.5 ACC50 C/CR 1299.0 1369.0 1326.0...
  • Page 19 OUTDOOR UNIT MODEL : ALC 10 / 15 B/BR A4LC 10 / 15 B/BR Note : Dimension in mm MODEL : ALC 20 / 25 B/BR, ALC 30B A4LC 20 / 25 B/BR Note : Dimension in mm...
  • Page 20 MODEL : ALC 30 / 40 / 50 / 60 C/CR A4LC 30 / 40 / 50 C/CR Note : Dimension in mm MODEL : AMC 60 C/CR Note : Dimension in mm...

  • Page 21: Wiring Diagrams

    8. WIRING DIAGRAMS MODEL : ACC 10C / 15C – ALC/A4LC 10B / 15B (FOR EXPORT SPEC. WITH SLM CONTROL C3.0B CC) MODEL : ACC 10C / 15C – ALC/A4LC 10B / 15B (FOR LOCAL SPEC.)
  • Page 22 MODEL: ACC 20C / 25C – ALC/A4LC 20B / 25B (FOR EXPORT SPEC. WITH SLM CONTROL C3.0B CC) MODEL : ACC 20C / 25C – ALC/A4LC 20B / 25B (FOR LOCAL SPEC.)
  • Page 23 MODEL: ACC 30C – ALC/A4LC 30C ( FOR EXPORT SPEC. WITH SLM CONTROL C3.0BCC ) MODEL: ACC 30C – ALC/A4LC 30C ( FOR LOCAL SPEC. & EXPORT SPEC. )
  • Page 24 MODEL: ACC 40C / 50C – ALC/A4LC 40C / 50C ( FOR EXPORT SPEC. WITH MC & SLM CONTROL C3.0BCC ) MODEL: ACC 40C / 50C – ALC/A4LC 40C / 50C ( For export spec. with MC )
  • Page 25 MODEL: ACC 40C / 50C – ALC/A4LC 40C / 50C ( FOR LOCAL SPEC. ) MODEL: ACC 60C – ALC 60C ( FOR EXPORT SPEC. WITH MC & SLM C3.0BCC )
  • Page 26 MODEL: ACC 60 – ALC 60C ( FOR EXPORT SPEC. WITH MC ) MODEL: ACC 60C – ALC 60C ( FOR LOCAL SPEC. )
  • Page 27 MODEL: ACC 60C – AMC 60C ( FOR EXPORT SPEC. WITH SLM CONTROL C3.0BCC )
  • Page 28 MODEL : ACC 10CR / 15CR – ALC/A4LC 10BR / 15BR...
  • Page 29 MODEL: ACC 20CR / 25CR – ALC/A4LC 20BR / 25BR...
  • Page 30 MODEL: ACC 30CR – ALC/A4LC 30CR...
  • Page 31 MODEL: ACC 40CR / 50CR – ALC/A4LC 40CR / 50CR...
  • Page 32 MODEL: ACC 60CR – ALC 60CR...
  • Page 33 MODEL: ACC 60CR – AMC 60CR (FOR EXPORT SPEC. WITH SLM CONTROL C3.0BCC)
  • Page 34 MODEL : ACC 10 / 15C – ALC / A4LC 10 / 15B (FOR EXPORT SPEC. WITH SLM CONTROL U1.4) MODEL : ACC 20 / 25C – ALC / A4LC 20 / 25B (FOR EXPORT SPEC. WITH SLM CONTROL U1.4)
  • Page 35 MODEL : ACC 30 C – ALC 30B (FOR EXPORT SPEC. WITH SLM CONTROL U1.4) MODEL : ACC 30C – ALC / A4LC 30C (FOR EXPORT SPEC. WITH SLM CONTROL U1.4)
  • Page 36 MODEL : ACC 40 / 50C – ALC / A4LC 40 / 50C (FOR EXPORT SPEC. WITH SLM CONTROL U1.4) MODEL : ACC 60C – ALC 60C (FOR EXPORT SPEC. WITH SLM CONTROL U1.4)
  • Page 37 MODEL : ACC 60C – AMC 60C (FOR EXPORT SPEC. WITH SLM CONTROL U1.4)
  • Page 38 MODEL : ACC 10 / 15CR – ALC / A4LC 10 / 15BR (FOR EXPORT SPEC. WITH SLM CONTROL U1.4)
  • Page 39 MODEL : ACC 20 / 25CR – ALC / A4LC 20 / 25BR (FOR EXPORT SPEC. WITH SLM CONTROL U1.4)
  • Page 40 MODEL : ACC 30CR – ALC / A4LC 30CR (FOR EXPORT SPEC. WITH SLM CONTROL U1.4)
  • Page 41 MODEL : ACC 40 / 50CR – ALC / A4LC 40 / 50CR (FOR EXPORT SPEC. WITH SLM CONTROL U1.4)
  • Page 42 MODEL : ACC 60CR – ALC 60CR (FOR EXPORT SPEC. WITH SLM CONTROL U1.4)
  • Page 43 MODEL : ACC 60CR – AMC 60CR (FOR EXPORT SPEC. WITH SLM CONTROL U1.4)
  • Page 44 ATTACHMENT 60HZ OUTDOOR UNIT MODEL : ALC 30C (COOLING ONLY) 60HZ / 1 PHASE / 208 ~230V MODEL : ALC 40 / 50C (COOLING ONLY) 60HZ / 3 PHASE / 200 ~230V MODEL : ALC 40 / 50CR (COOLING ONLY) 60HZ / 3 PHASE / 200 ~230V...
  • Page 45 3 PHASE FOR 2 & 3 HP OUTDOOR UNIT MODEL : ALC 20 / 25B (COOLING ONLY) 3 PHASE / 50 HZ / 380 ~ 415V MODEL : ALC 30C (COOLING ONLY) 3 PHASE / 50 HZ / 380 ~ 415V...
  • Page 46 MODEL : ALC 20 / 25BR (HEAT PUMP) 3 PHASE / 50HZ / 380 ~ 415V MODEL : ALC 30CR (HEAT PUMP) 3 PHASE / 50HZ / 380 ~ 415V...
  • Page 47 HIGH AMBIENT UNIT OUTDOOR UNIT MODEL : ALC 20 / 25B (COOLING ONLY) 50HZ / 1 PHASE / 220 – 240V, 60HZ / 1 PHASE / 208 – 230V OUTDOOR UNIT MODEL : ALC 30C (COOLING ONLY) 50HZ / 1 PHASE / 220 – 240V, 60HZ / 1 PHASE / 208 –...
  • Page 48 OUTDOOR UNIT MODEL : ALC 20 / 25BR (HEAT PUMP) 50HZ / 1 PHASE / 220 – 240V OUTDOOR UNIT MODEL : ALC 30CR 50HZ / 1 PHASE / 220 – 240V, 60 HZ / 1 PHASE / 220V OUTDOOR UNIT MODEL : ALC 40 / 50CR 50HZ / 3 PHASE / 380 –...
  • Page 49 LOW AMBIENT UNIT (OPTIONAL) OUTDOOR UNIT MODEL : ALC 10B / 15B (50HZ) OUTDOOR UNIT MODEL : ALC 20B / 25B (50HZ)
  • Page 50 LOW AMBIENT UNIT OUTDOOR UNIT MODEL : ALC 10 / 15BR 50HZ / 1 PHASE / 220 – 240V OUTDOOR UNIT MODEL : ALC 20BR 50HZ / 1 PHASE / 220 – 240V OUTDOOR UNIT MODEL : ALC 25BR 50HZ / 1 PHASE / 220 – 240V...

  • Page 51: Special Precautions For R407C

    9. SPECIAL PRECAUTIONS FOR R407C SPECIAL PRECAUTIONS WHEN DEALING WITH REFRIGERANT R407C UNIT 1) WHAT IS NEW REFRIGERANT R407C? R407C is a zeotropic refrigerant mixture which has Zero Ozone Depletion Potential (ODP = 0) and thus conformed to the Montreal Protocol regulation. It requires Polyol-ester oil (POE) oil for its compressor's lubricant. Its refrigerant capacity and performance are about the same as the refrigerant R22.
  • Page 52 c) Ensure that the compressor is not expose to open air for more than the recommended time specified by its manufacturer (typically less than 10 minutes). Removed the seal-plugs only when the compressor is about to be brazed. d) The system should be thoroughly vacuumed to 1.0 Pa (-700mmHg) or lower. This vacuuming level is more stringent than R22 system so as to ensure no incompressible gas and moisture in the system.

  • Page 53: Installation

    10. INSTALLATION PRELIMINARY SITE SURVEY Electrical supply and installation is to conform to local authority's codes and regulations. (e.g. National Electricity Board). Voltage supply fluctuation must not exceed +/- 10% of rated voltage. Electricity supply lines must be independent of welding transformers which can cause high supply fluctuation.
  • Page 54 Model ACC 30 C/CR 929.0 999.0 956.0 917.0 408.5 378.0 541.0 256.0 173.0 311.0 70.5 ACC 40 C/CR 1045.0 1115.0 1072.0 1033.0 466.5 378.0 541.0 256.0 173.0 311.0 128.5 ACC 50 C/CR 1299.0 1369.0 1326.0 1287.0 593.5 378.0 541.0 256.0 173.0 311.0 255.5...
  • Page 55 OUTDOOR UNIT As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to achieve maximum cooling capacity, the location selected for outdoor unit should fulfill the following requirements : • Install the condensing (outdoor) unit in away such that hot air distributed by the outdoor condensing unit cannot be drawn in again (as in the case of short circuit of hot discharge air).

  • Page 56: Operation

    11. OPERATION MAXIMUM PIPE LENGTH AND MAXIMUM NUMBER OF BENDS • When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends increases, system piping resistance to the refrigerant flow increases, thus lowering the cooling capacity, and as the result the compressor may become defective.
  • Page 57 WIRING ELECTRICAL CONNECTIONS • Wiring regulations on wire diameters differ from country to country. Please refer to your LOCAL ELECTRICAL CODES for field wiring rules. Be sure that installation comply with such rules and regulations. GENERAL PRECAUTIONS • Ensure that the rated voltage of the unit corresponds to the name plate before carrying out proper wiring according to the wiring diagram.
  • Page 58 CAUTION FOR R407C Do not top-up when servicing leak, as this will reduce the unit performance. Vacuum the unit thoroughly and then charge the unit with fresh R407C according to the amount recommended in the specification. ADDITIONAL CHARGE • The refrigerant gas has already charged into the outdoor unit. For the piping length of 5m. Additional refrigerant charge after vacuuming is not necessary.
  • Page 59 STANDARD OPERATING CONDITION COOLING ONLY UNIT Temperature Ts °C Th °C minimum indoor temperature 19.4 13.9 maximum indoor temperature 26.7 19.4 minimum outdoor temperature 19.4 13.9 maximum- outdoor temperature 46.0 24.0 HEAT PUMP UNIT Temperature Ts °C Th °C minimum indoor temperature 10.0 maximum indoor temperature 26.7...

  • Page 60: Remote Control Operation Guide

    12. REMOTE CONTROL OPERATION GUIDE SENSOR ON/OFF ON/OFF AUTO COOL HIGH MODE TEMP TEMP HEAT SWING SLEEP TIMER SWING SLEEP TIMER MODE 6. “Sleep” mode 1. “ON/OFF” switch • Press button to activate the sleep function. • Press to start the air conditioner unit. •...

  • Page 61: Servicing And Maintenance

    13. SERVICING AND MAINTENANCE Warning Disconnect from Main Supply before Servicing the air conditioner The unit is designed to give a long life operation with minimum maintenance required. However, it should be regularly checked and the following items should be given due attention. Components Maintenance Procedure Recommended Schedule...
  • Page 62 The design of the ALC outdoor series allows servicing to be carried out readily and easily. The removal of the top side, front and back panel make almost every part accessible. Under normal circumstances, these outdoor units only require a check and cleaning of air intake coil surface once quarterly.

  • Page 63: Troubleshooting

    14. TROUBLESHOOTING When any air-conditioner malfunction is noted, immediately switch off the power supply to the unit, and contact the local dealer, if necessary. Some simple troubleshooting tips are given below : FAULT CAUSE • Protection against the frequent starting. Wait 3 or 4 minutes. 1.
  • Page 64 FOR COOLING ONLY MODELS OR HEAT PUMP MODELS (COOLING CYCLE) DIAGNOSIS BY FLOW CHART The following chart are efficient checking procedures for troubleshooting when these fan-coil units, are coupled with the condensing units using standard wiring. For dual circuited models, perform the procedures for each circuit.
  • Page 65 INSUFFICIENT COOLING Insufficient Cooling Cycling On Compressor Cycling High Discharge Pressure or Low See "High Discharge Pressure" or Tripping Suction Pressure "Low Suction Pressure" Dual Pressure Switch Clogged Capillary or Pressure Repair Clogging and Replace Switch The Switch If Required Switch Faulty Repair or Change If Necessary Running...
  • Page 66 HIGH SUCTION PRESSURE High Suction Pressure Evaporator Air Inlet Excessive Fresh Air Intake Reduce The Fresh Air Intake Temperature Insufficient Duct Insulation Reinforce The Duct Insulation Defective Compressor Valve Change Or Repair The Compressor Overcharged Refrigerant Purge The Refrigerant LOW SUCTION PRESSURE Low Suction Pressure Evaporator Restricted...
  • Page 67 FOR HEAT PUMP MODELS By means of pressure readings : PRESSURE PROBABLE CAUSE Data Circuit High Side 1. Overcharged with refrigerant. Low Side 2. Non-condensable gases in refrigerant circuit (e.g. oil). 3. Obstructed air-intake/discharge. 4. Short circuiting of hot air outdoor unit. High Side 1.
  • Page 68 The most common causes of air conditioner failure to “start" are: a) Voltage not within ±10% of rated voltage. b) Power supply interrupted. c) Control settings improper. d) Air conditioner is disconnected from main power source. e) Fuse blown or circuit breaker off. ii) DIAGNOSIS OF REFRIGERANT CIRCUIT / APPLICATION There might be some cases where the unit starts running but does not perform satisfactory, i.e.

  • Page 69: Parts List

    15. PARTS LIST MODEL: ACC 10 C/CR 1. TOP SIDE PANEL 2. FAN DECK 3. COIL 4. PRIMARY DRAIN PAN 5. SECONDARY DRIP PAN 6. HANGER 7. CONTROL BOX...
  • Page 70 MODEL: ACC 15 / 20 / 25 C/CR 1. TOP SIDE PANEL 2. FAN DECK 3. COIL 4. PRIMARY DRAIN PAN 5. SECONDARY DRIP PAN 6. HANGER 7. CONTROL BOX...
  • Page 71 MODEL: ACC 30 C 1. PANEL TOP ASSY. 2. TERMINAL BOX ASSY. 3. COIL TUBING ASSY. 4. DRAIN PAN SMALL ASSY. 5. DRAIN PAN BIG ASSY. 6. BLOWER ASSY. 7. BLOWER PANEL 8. BLOWER FLANGE...
  • Page 72 MODEL: ACC 30 CR 1. PANEL TOP ASSY. 2. TERMINAL BOX ASSY. 3. COIL TUBING ASSY. 4. DRAIN PAN SMALL ASSY. 5. DRAIN PAN BIG ASSY. 6. BLOWER ASSY. 7. BLOWER PANEL 8. BLOWER FLANGE...
  • Page 73 MODEL: ACC 40 C 1. PANEL TOP ASSY. 2. TERMINAL BOX ASSY. 3. COIL TUBING ASSY. 4. DRAIN PAN SMALL ASSY. 5. DRAIN PAN BIG ASSY. 6. BLOWER ASSY. 7. BLOWER PANEL 8. BLOWER FLANGE...
  • Page 74 MODEL: ACC 40 CR 1. PANEL TOP ASSY. 2. TERMINAL BOX ASSY. 3. COIL TUBING ASSY. 4. DRAIN PAN SMALL ASSY. 5. DRAIN PAN BIG ASSY. 6. BLOWER ASSY. 7. BLOWER PANEL 8. BLOWER FLANGE...
  • Page 75 MODEL: ACC 50 C 1. PANEL TOP ASSY. 2. TERMINAL BOX ASSY. 3. COIL TUBING ASSY. 4. DRAIN PAN SMALL ASSY. 5. DRAIN PAN BIG ASSY. 6. BLOWER ASSY. 7. BLOWER PANEL 8. BLOWER FLANGE...
  • Page 76 MODEL: ACC 50 CR 1. PANEL TOP ASSY. 2. TERMINAL BOX ASSY. 3. COIL TUBING ASSY. 4. DRAIN PAN SMALL ASSY. 5. DRAIN PAN BIG ASSY. 6. BLOWER ASSY. 7. BLOWER PANEL 8. BLOWER FLANGE...
  • Page 77 MODEL: ACC 60 C 1. PANEL TOP ASSY. 2. TERMINAL BOX ASSY. 3. COIL TUBING ASSY. 4. DRAIN PAN SMALL ASSY. 5. DRAIN PAN BIG ASSY. 6. BLOWER ASSY. 7. BLOWER PANEL 8. BLOWER FLANGE...
  • Page 78 MODEL: ACC 60 CR 1. PANEL TOP ASSY. 2. TERMINAL BOX ASSY. 3. COIL TUBING ASSY. 4. DRAIN PAN SMALL ASSY. 5. DRAIN PAN BIG ASSY. 6. BLOWER ASSY. 7. BLOWER PANEL 8. BLOWER FLANGE...
