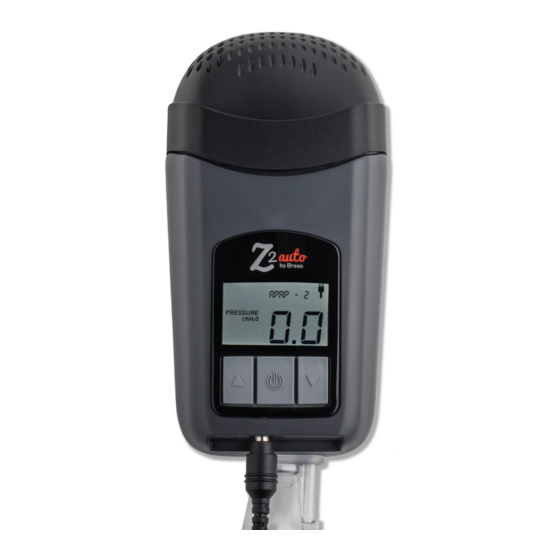

Breas Z2 Auto Patient Quick Start Manual

9

Replacing the Filter

The Z2 comes with a Filter preinstalled
at the factory plus a replacement Filter.
When it is time to replace the filter,
remove the End Cap by squeezing the
sides and pulling down. Insert the new
filter into the End Cap as shown, with
arched side of the filter aligned with the
top of the End Cap. Ensure the filter covers
all holes in the end cap. Press the End Cap
onto the Z2.

Box Contents

Qtube
Power Cord
8 in. CPAP tube
HME
4 ft. Slim-style Tube Adapter
CPAP tube Z2 Auto
Z2 Auto Device
Power Supply (AC Adapter and Power Cord)
Custom USB A to Micro B Cable
Custom CPAP Tube Adapter
4 ft. Slim Style CPAP Tube
Filters (2 – 1 installed in Z2, 1 in box)
Heat / Moisture Exchanger (HME)
Qtube Muffler
8 in. Slim Style Tube
Z2 Auto Quick Start Guide
Z2 Auto User Guide
For complete Instructions for Use, please see the Z2 Auto User Manual.

LCD Display Overview

The Z2 display offers useful information on device settings. Below is a brief overview
of the information available using the built-in LCD. For more information, please refer
to the Z2 Auto User Guide.
1. Treatment pressure display
2. Ramp progress indicator (if ramp set)
3. Ramp time remaining (if ramp set)
4. Battery status (if present)
5. AC Power indicator (if connected)
6. General status display
7. Fault indicator (if fault occurs)
If appears in the general status display, the internal battery needs replacement, so the device
has stopped logging data. Call Breas to arrange for the battery to be replaced. Until then therapy will
continue to be provided.
AC Adapter
Z2 Auto Nitelog ®
Your Z2 Auto has a range of functionality from device remote control to data view-
ing available via its embedded Bluetooth capability. The Z2 Nitelog
for download at the App Store
USB Cable
devices. Separate Z2 Nitelog
Breas Medical web site, www.breas.us. The App User Guides provide an overview of
the App as well as detailed use instructions.
Filter
Sleep Data Software
Breas Medical provides user software for data viewing which may be downloaded
from the Breas Medical website to any Windows computer. A separate user guide for
this software is available for download at the Breas Medical website, www.breas.us.
If you have any questions, consult the Z2 Auto User Guide, email us at supportUS@
breas.com or call Customer Support at 855-436-8724 Monday-Friday 8 am-5 pm EST.
To register your device, complete the form in the back of the User Guide or visit
www.breas.us
Breas Medical, Inc. 16 Esquire Road, N. Billerica, MA 01862, USA
Z2 Auto™ is a trademark of Breas Medical, Inc. Qtube® and Z-Breathe® are registered trademarks of
Breas Medical, Inc. Breas and the Breas logo are registered trademarks of Breas, AB. All other trademarks
are the property of their respective owners.
US Patent Pending. © Copyright 2014-2019, Breas Medical, Inc. All rights reserved.
FAULT
Bluetooth App
App is available
®
™ for Apple devices or at Google Play for Android
App User Guides are available for download on the
®
Z2 Auto QS CA EN, MMDD2019
Doc. 40-0130 CA EN Y-1
Z2 Auto
Patient Quick Start Guide
