Medina Series
Reception Return
Model No. MNRR
ASSEMBLY INSTRUCTIONS
CALL 1-800-822-8037 FOR ASSISTANCE
P/N MNRR REV 1 02/27/15
TM
www.mayline.com

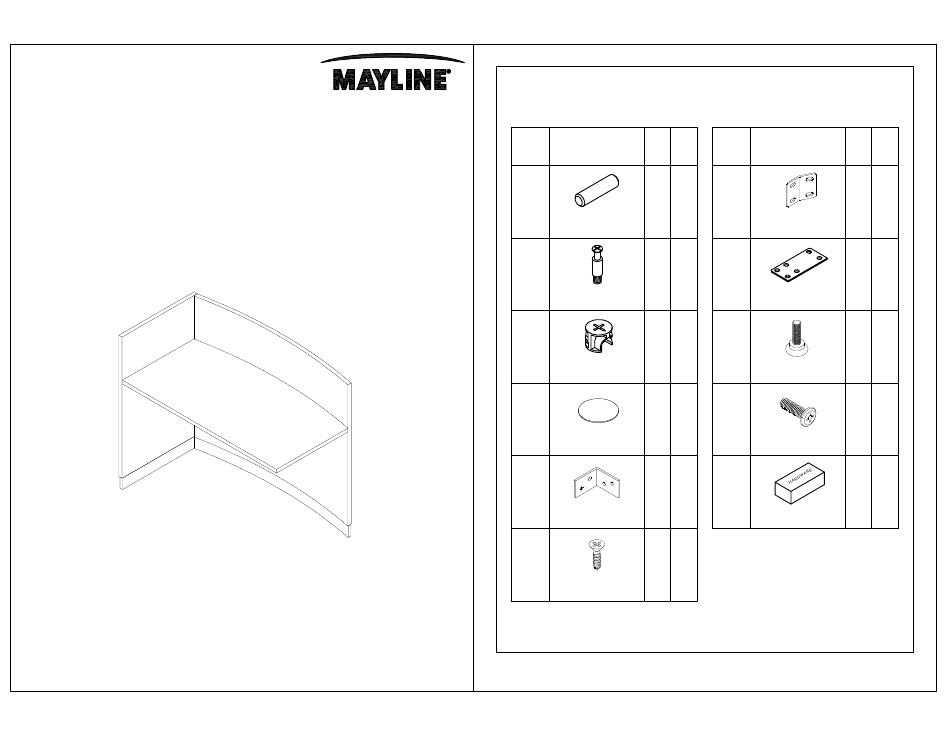

PARTS LIST
Spare
Name
Part
Qty.
Qty
HB
A
2
1
REALS004
Wood Dowel
HB
B
9
1
REALS003
Cam Post
HB
C
15
1
REALS001
Cam Lock
HB
D
24
1
REALS102**
Cam Sticker
HB
E
4
REALS088
Mntg Bracket
HB
F
28
1
REALS267
Ø4 x 20mm Black
Items with HB are in hardware box.
**Denotes Color Code
Spare
Name
Part
Qty.
Qty
HB
G
2
REALS136
Mntg Clip
HB
H
2
REALS406
Mntg Plate
HB
I
4
REALS429
Leveler
HB
J
8
REALS129
M6 x 15mm Black
MNRRHB
1
1
Advertisement
Table of Contents
Related Manuals for Mayline Medina MNRR
Summary of Contents for Mayline Medina MNRR
- Page 1 Leveler REALS102** REALS129 Cam Sticker M6 x 15mm Black REALS088 MNRRHB Mntg Bracket ASSEMBLY INSTRUCTIONS REALS267 Ø4 x 20mm Black CALL 1-800-822-8037 FOR ASSISTANCE Items with HB are in hardware box. **Denotes Color Code P/N MNRR REV 1 02/27/15 www.mayline.com...
- Page 2 Review ALL instructions before beginning assembly. These instructions are provided to avoid problems that may occur from improper assembly or installation. Mayline and/or its distributor are not responsible for failure resulting from improper assembly or installation of this product. Moreover, all warranties are void for failure to follow these assembly instructions.
- Page 3 Attach Top (K) and Front Panel (L) by turning Cams (C). Apply Cam Stickers (D) to Cams Attach Mntg Bracket (E) to the Top (K) and End Panel (M) & Front Panel (L) using Screws (C) of Top (K) and Front Panel (L). (F).
- Page 4 NOTE: End Panel is in Right. NOTE: Reception Return is in Right. Attach Mntg Clip (G) to the Reception and Reception Return using Screws (J). Attach Mntg Plate (H) to the Reception and Reception Return using Screws (F). NOTE: Reception Return is in Left.
