Medina Series

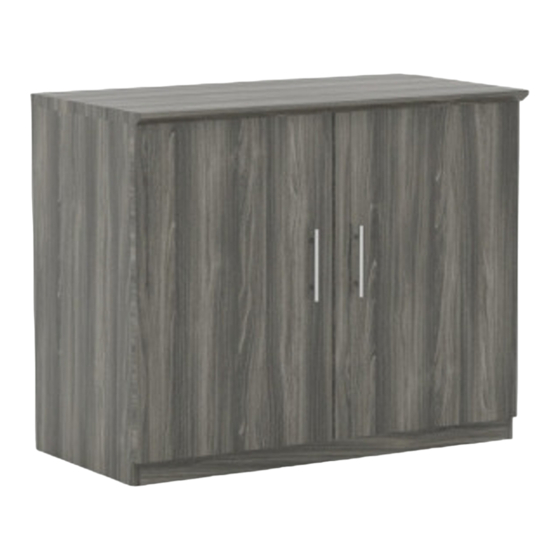

Storage Cabinet
Model No. MSC
ASSEMBLY INSTRUCTIONS
CALL 1-800-822-8037 FOR ASSISTANCE
P/N
MSC REV 1
02/27/15
TM
www.mayline.com
Spare
Name
Part
Qty.
Qty
HB
A
8
1
REALS004
Wood Dowel
HB
B
13
1
Cam Lock
HB
C
13
1
REALS002
Cam Post
HB
D
13
1
HB
E
4
REALBY018
Leveler Assembly
HB
F
16
1
REALS417
Ø4x14mm Black
HB
G
1
REALS025
Door Stop
Items with HB are in hardware box.
**Denotes Color Code
1
Spare
Name
Part
Qty.
Qty
HB
H
2
1
REALS017
Ø3.5 x 16mm White
HB
I
Handle-Silver
2
96mm Center
Handle Screw
M4x25mm White
J
4
1
REALS410
Handle and Screw
HB
K
4
1
REALS009
Shelf Support
HB
L
18
1
REALS146
Ø3x19mm Black
HB
M
4
1
REALS230**
Cam Cap
HB
N
1
REALBY028
Wrench
MSCHB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mayline Medina Series
Summary of Contents for Mayline Medina Series
- Page 1 PARTS LIST Spare Spare Name Part Qty. Name Part Qty. Medina Series Storage Cabinet REALS017 REALS004 Ø3.5 x 16mm White Model No. MSC Wood Dowel Handle-Silver 96mm Center Handle Screw M4x25mm White REALS410 Handle and Screw Cam Lock REALS009 REALS002...
- Page 2 Review ALL instructions before beginning assembly. These instructions are provided to avoid problems that may occur from improper assembly or installation. Mayline and/or its distributor are not responsible for failure resulting from improper assembly or installation of this product. Moreover, all warranties are void for failure to follow these assembly instructions.
- Page 3 Insert Wood Dowels (A) into Side Panels (P & Q). Insert Cam (B) into Side Panels (P & Q). Attach the Back Panel (U) to the Top (O) , Side Panels (P & Q) and the Bottom Panel (T) Attach Top (O) to assembled cabinet by turning Cams (B). Apply Cam Stickers (D) to by using Screws (L).
- Page 4 Install Leveler Assemblies (E) to Side Panels (P & Q) using Screws (F). Insert Shelf Supports (K) into the Side Panels (P & Q) at the desired height. Attach Door Stop (G) to underside of Top (O) using Screws (H). Put the Shelf Panel (S) on the Shelf Supports (K).
- Page 5 Pre-Installed Replacement Attach Handles (I) to Wood Doors (W & V) using Screws (J). Install Wood Doors (W & V) onto Cabinet. Adjust doors for alignment as necessary by using the adjustment screws on the hinges. Parts List Included Included Part Part Qty.
