INNOVAPLAS Fiesta Quick Start Manual

FIESTA/OPERA WITH SELF-LATCHING 9600
Contents of Accessory box 1001-HRK
SCREW BAG 140-0008
A B C D E
x2
x2
x8 x8 x8 x16 x12
Install the step on a flat surface.
Do not jump or dive from the step or ladder.
Remove the step from water when temperatures drop below freezing.
In winter, the step should be stored in an area protected from snow.
Never lift the step by its handrails.
Use BATTERY operated tools to avoid electric shock near water.
Ensure no corrosive materials are added to the step or harware kit.
The step must be installed per manufacturer's instructions.
File off all stripped or sharp edges before assembly to avoid injuries
and liner damage.
The manufacturer is not responsible for damages or injuries caused
by improper installation or use of product.
To ease the installation of handrails and bolts, use a screwdriver to
line up the holes.

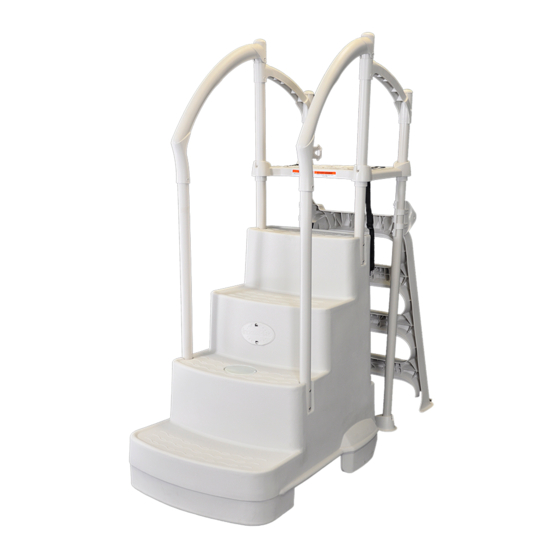

Fiesta with Self-Latching
Contents of the Self-Latching box SKU # 9600
SCREW BAG 140-0016
x4
F G D C
x4
x2
x1
x2 x12 x2
x2
Security straps
x2
WARNING
2257 route 139
Drummondville, Québec
J2A 2G2
WWW.INNOVAPLAS.COM
x3
x2
x4
A
1) Insert the four posts into
the step and secure them in
place with the bolts,
washers, and nuts
provided.
2) Insert the platform over
the two rear posts. Do not
secure.
3) Insert the small and large
handrails as illustrated.
Secure the large handrails
with the screws provided.
Leave the small handrails
floating.
Useful tip!
To ease the installation of
handrails and bolts, use a
Phillips screwdriver to line
up the holes.
A B C
x8 x8 x8
MANUFACTURER WARRANTY
1 year on step and closure.
REV. 03/05/2020
Opera Shell
Fiesta Shell
Required tools (not included)
Phillips #2
7/16 wrench
Phillips #3
Also needed but not included
A weather-resistant
padlock is recommended
(not included).
MAXIMUM functional
width is 1/4''.
1 year on hardware.
PN:
Phillips bit
D
x8
PG:1
