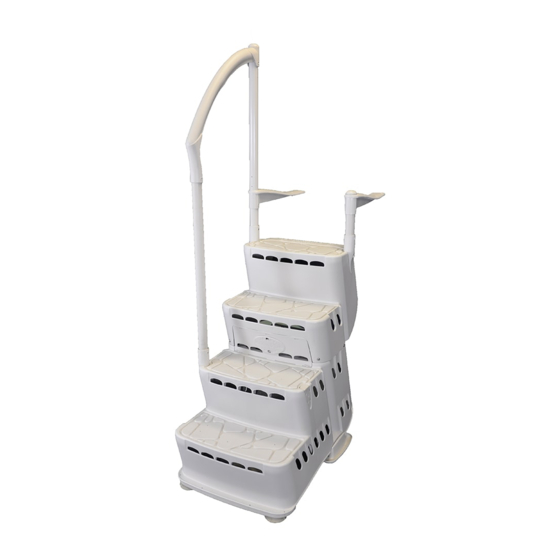

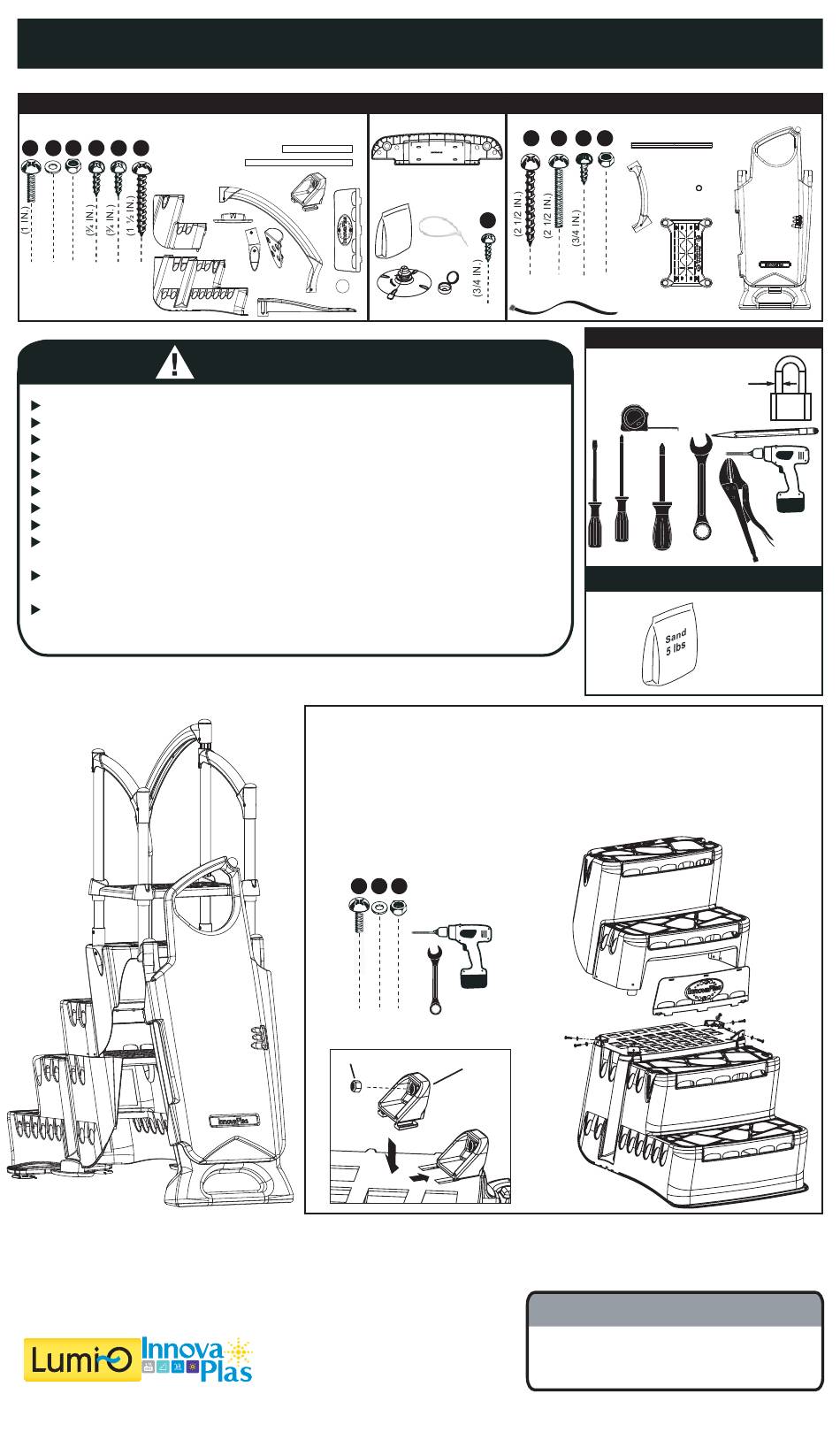

INNOVAPLAS AQUaRIUS 5010 Quick Start Manual

AQUARIUS 5010 WITH SELF-LATCHING 9600
Aquarius box SKU # 5010
Contents of
SCREW KIT 140-0028
A B C D E F
x6 x6 x6 x17 x2 x12
Install the step on a flat surface.
Do not jump or dive from the step or ladder.
Remove the step from water when temperatures drop below freezing.
In winter, the step should be stored in an area protected from snow.
Never lift the step by its handrails.
Use BATTERY operated tools to avoid electric shock near water.
Ensure no corrosive materials are added to the step or harware kit.
The step must be installed per manufacturer's instructions.
File off all stripped or sharp edges before assembly to avoid injuries
and liner damage.
The manufacturer is not responsible for damages or injuries caused
by improper installation or use of product.
To ease the installation of handrails and bolts, use a screwdriver to
line up the holes.
Contents of
x1
x2
x1
x2
x2
x1
x3
x2
x2
WARNING
A
A
x6 x6 x6
INSERT NUT
2257 route 139
Drummondville, Québec
J2A 2G2
WWW.INNOVAPLAS.COM
"Riser kit" box
SCREW KIT 140-0016
F
SCREW KIT 140-0010
D
x2
x2
x4
x2
x4
1) Insert the two gussets in the slots and slide them
toward the corners.
2) Assemble the two main modules with the six screws,
nuts and washers provided.
3) Snap the door between the top and bottom module
within the slots provided.
B C
GUSSET
2X
REV. 02/26/2020
Self-Latching box SKU # 9600
Contents of
G D C
x2
x4
x12 x2
x2
Security strap
x2
Required tools
A weather-resistant padlock
is recommended.
MAXIMUM functional
width is 1/4''.
7/16 wrench
Phillips #2
Phillips #3
Sand
MANUFACTURER WARRANTY
1 year on step and closure.
1 year on hardware.
PN:
x3
(not included)
Phillips bit
(not included)
PG:1
