INNOVAPLAS Lumi-O BILTMOR 5005 Quick Start Manual

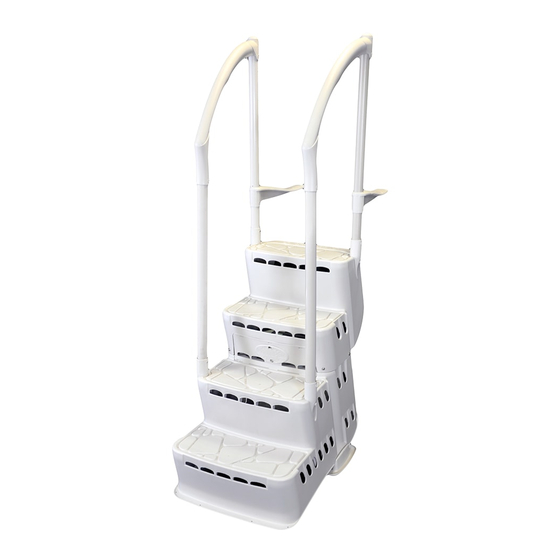

BILTMOR 5005 WITH CLASSIC LADDER 6003
Contents of the Biltmor box SKU # 5005
SCREW BAG 140-0021
A B C D E F
x6 x6 x6 x24 x2 x12
Install the step on a flat surface.
Do not jump or dive from the step or ladder.
Remove the step from water when temperatures drop below freezing.
In winter, the step should be stored in an area protected from snow.
Never lift the step by its handrails.
Use BATTERY operated tools to avoid electric shock near water.
Ensure no corrosive materials are added to the step or harware kit.
The step must be installed per manufacturer's instructions.
File off all stripped or sharp edges before assembly to avoid injuries
and liner damage.
The manufacturer is not responsible for damages or injuries caused
by improper installation or use of product.
To ease the installation of handrails and bolts, use a screwdriver to
line up the holes.
x4
x2
x2
x2
x2
x2
x4
WARNING
A
INSERT NUT
2257 route 139
Drummondville, Québec
J2A 2G2
WWW.INNOVAPLAS.COM
Contents of the ladder box SKU # 6003
SCREW BAG 140-0058
F A D B C
x2 x18 x2 x2
x2
Security straps
x2
1) Insert the two gussets in the slots and slide them
toward the corners.
2) Assemble the two main modules with the six screws,
nuts and washers provided.
3) Snap the door between the top and bottom module
within the slots provided.
A B C
x6 x6 x6
GUSSET
2X
x2
x2
x2
x2
Required tools
Phillips #2
7/16 wrench
Phillips #3
Sand
MANUFACTURER WARRANTY
1 year on step and ladder.
1 year on hardware.
REV. 02/17/2020 PN:
A weather-resistant
padlock is recommended
(not included).
MAXIMUM functional
width is 1/4''.
(not included)
3/8 drill bit
Phillips bit
(not included)
PG:1
