INNOVAPLAS AQUARIUS 5010 Manual

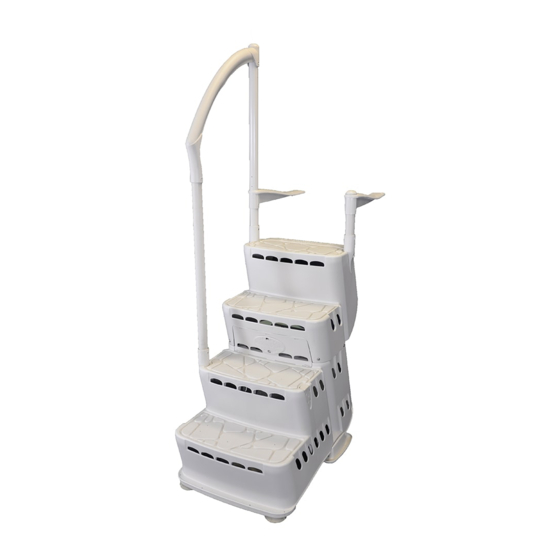

AQUARIUS 5010 WITH SELF-LATCHING 9600
Contents of Self-Latching box SKU # 9600
x2
x4
x2
Security Strap
x2
Do not dive or jump from step or ladder.
Use BATTERY operated tools to avoid electric shocks.
Install step on flat surface, following the manufacturers
instructions.
Remove step from pool during freezing climate season.
Manufacturer cannot be held responsible for injuries caused
by abusive use of product.
Ask your city about specific regulations that apply to your
above-ground pool and ladder.
*** Caution : File off all stripped or sharp edges before assembly to avoid injuries and pool damage.
To ease the installation of rails and bolts, use a screwdriver to line up the holes.
http://innovaplas.com
Contents of the Aquarius box SKU # 5010
Screw Kit 140-028
Screw Kit 140-016
x6 x6
x2 x2 x12 x2
WARNING
x1
x1
x6 x2 x14 x8
x2
Required tools and supplies (not included)
use small locking
pliers / vice grip
or a wrench 7/16''
A
1) Assemble the two main modules with the six screws,
nuts and washers provided.
2) Snap the door between the top and bottom modules
within the slots provided.
3) Snap the 3 post ends into the step making sure that
the cylindrical part is vertical and that the ends are
placed and fitted properly in their respective housings.
4) Snap the filler cap into the bottom step as illustrated.
x6
x6
x6
Sand
x2
x2
x2
x3
A weather resistant padlock is
recommended. Maximum functional
width is 1/4 inch.
REV. 26/09/14
PN: 110-073
(not included)
PG. 1
