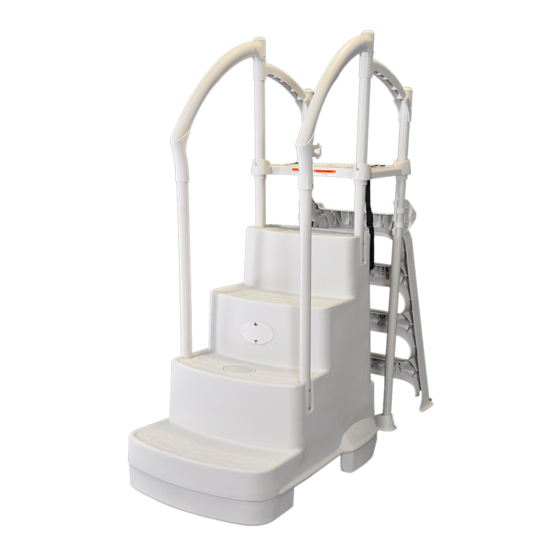

FIESTA 1003 WITH CLASSIC LADDER 6003

Contents of Accessory box 1003-HRK

x4
SCREW BAG 140-0009
A B C D
x2
x2
x8 x8 x8 x12
Install the step on a flat surface.
Do not jump or dive from the step or ladder.
Remove the step from water when temperatures drop below freezing.
In winter, the step should be stored in an area protected from snow.
Never lift the step by its handrails.
Use BATTERY operated tools to avoid electric shock near water.
Ensure no corrosive materials are added to the step or harware kit.
The step must be installed per manufacturer's instructions.
File off all stripped or sharp edges before assembly to avoid injuries
and liner damage.
The manufacturer is not responsible for damages or injuries caused
by improper installation or use of product.
To ease the installation of handrails and bolts, use a screwdriver to
line up the holes.

Contents of the ladder box SKU # 6003

SCREW BAG 140-0058
x4
E A D B
x1
x2 x18 x2
x2
Security straps
x2

WARNING

2257 route 139
Drummondville, Québec
J2A 2G2
WWW.INNOVAPLAS.COM
C
x2
x2
x2
x2
A
1) Insert the four posts into
the step and secure them in
place with the bolts,
washers, and nuts
provided.
2) Insert the platform over
the two rear posts. Do not
secure.
3) Insert the small and large
handrails as illustrated.
Secure the large handrails
with the screws provided.
Leave the small handrails
floating.
Useful tip!
To ease the installation of
handrails and bolts, use a
Phillips screwdriver to line
up the holes.
A B C
x8 x8 x8
REV. 04/04/2020
Fiesta Shell
A weather-resistant
padlock is recommended
(not included).
x2
MAXIMUM functional
width is 1/4''.
Required tools
Phillips #2
7/16 wrench
Phillips #3
Sand
MANUFACTURER WARRANTY
1 year on step and ladder.
1 year on hardware.
PN:
(not included)
3/8 drill bit
Phillips bit
(not included)
D
x8
