SPATIALANALYZER USER MANUAL
T-Scan Interface
Hardware Setup

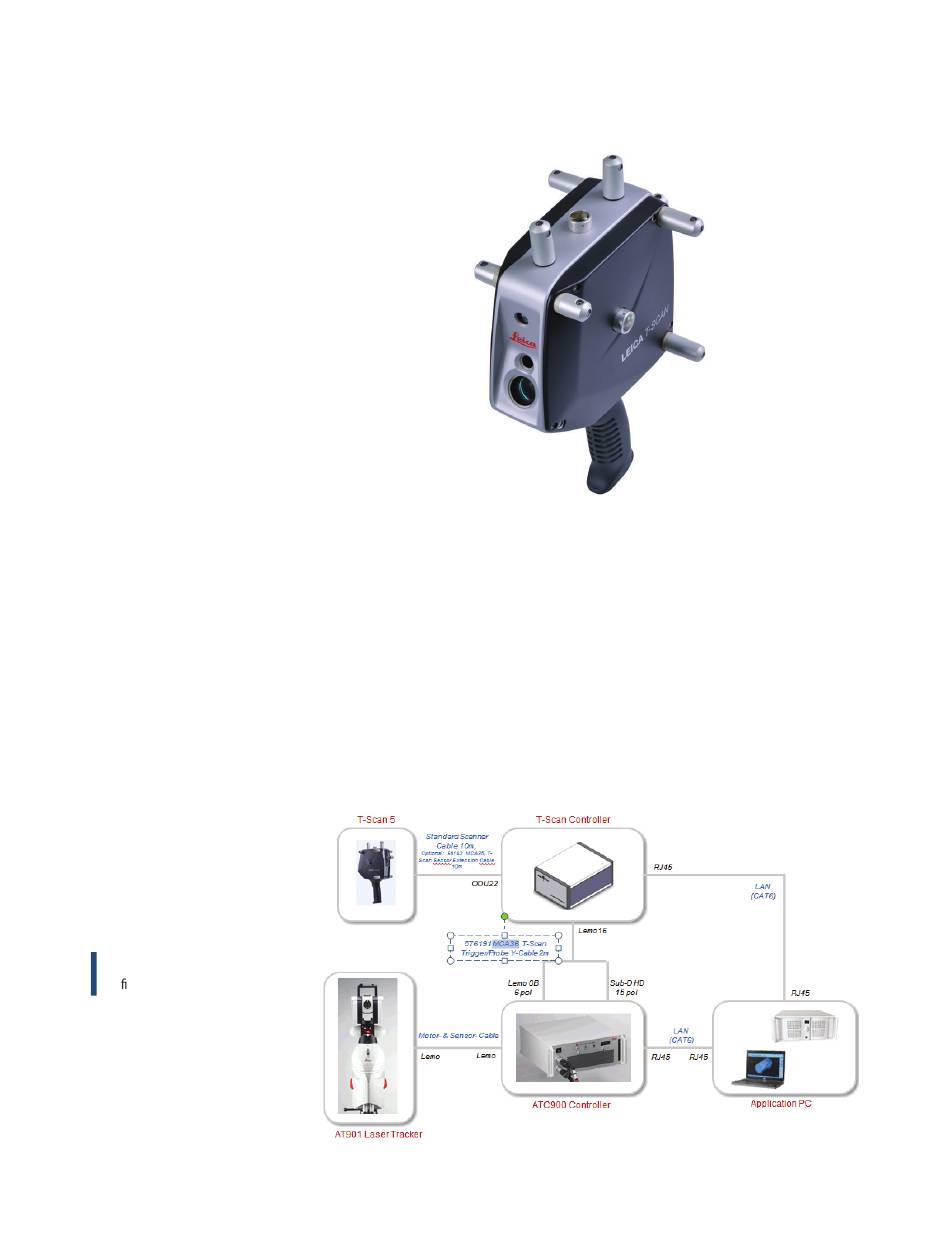

Figure 14-82.
AT901 Cable
Con guration
392

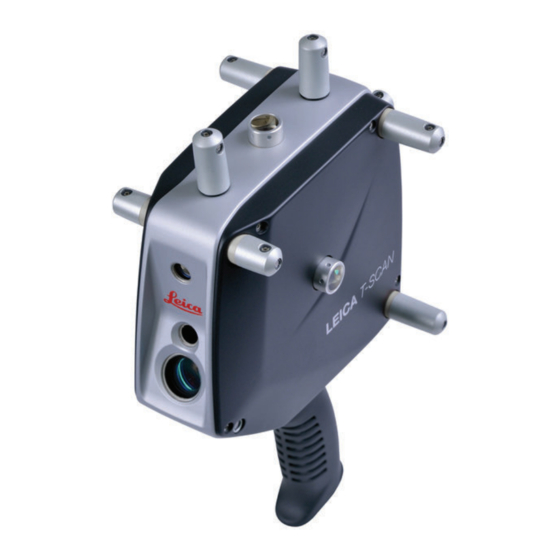

This Quick-start guide can be used for the initial setup of the Leica
T-Scan5 system for operation within SA in conjunction with either an
AT960 or AT901.
Set up the unit following the manufacturer's directions. The
■
AT960 users the MCA-47 cable between the T-Scan and Tracker
controller's signal port (the trigger port is not used). The AT901
uses the MCA-36 cable which has a dual end for the tracker sig-
nal line and trigger connections . A single network cable should
be connected from the computer to the t-scan controller and a
second Ethernet cable connects the tracker and t-scan system
along with a signal cable
■
Ensure that you have the T-Scan License key to operate the sys-
(Figure
14-82).
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Leica T-Scan5
Summary of Contents for Leica T-Scan5
- Page 1 SPATIALANALYZER USER MANUAL T-Scan Interface Hardware Setup This Quick-start guide can be used for the initial setup of the Leica T-Scan5 system for operation within SA in conjunction with either an AT960 or AT901. Set up the unit following the manufacturer’s directions. The ■...
- Page 2 Ensure that you have the USB drive containing the *.mtx and ■ *.emsys les (calibration les) which should also contain the Leica setup manuals and a version of the required software (T- Scan Collect or T-Scan Interface and TwinCat Engineering). Tracker Con guration The T-Scan target de nition must be de ned on the tracker controller.
- Page 3 SPATIALANALYZER USER MANUAL default) Enter the TrackerInterfaceType (EMSCON for AT901 or LMF for AT960) Enter the ScannerAlignmentBaseName (such as LLS1100271). This number is on the front of the T-Scan. Enter the AMSNETID for the T-Scan Controller. Which should be printed on the front of the controller (Such as 5.29.142.116.1.1) Once complete save and close the TScanCol.ini le (see Figure 14-83).
- Page 4 CHAPTER 14 ■ MEASURING WITH LASER TRACKERS Figure 14-84. Network Con gu- ration settings Click OK and close out of all dialogs and exit out of the net- work Sharing Center when done. TwinCAT Software: Install the TwinCAT Engineering Software (which will man- age the dual network communication between the tracker and the T-SCAN system).
- Page 5 SPATIALANALYZER USER MANUAL Figure 14-85. Figure 14-85. c Perform a Broadcast Search and look for the AMS NetID of the controller which should show up on the network list. When it does, select it and set it to use IP Address as follows(see Figure 14-86):...
- Page 6 Running the T-Scan Interface in SA: Add the Instrument (Instrument>Add…) and choose the ap- propriate Leica Tracker (AT901 or AT960) Start the Interface through the menu Instrument>Run Inter- face Module and choose Leica TScan. (Do not connect using the Laser Tracker Interface) (see Figure 14-87):...
- Page 7 T-Scan Interface T-Scan Interface in SA: When you start the Leica T-Scan interface it will automatically con- nect to either T-Scan Collect or the T-Scan Interface which will run in the background. The T-Scan interface in SA is designed to be as sim-...
- Page 8 T-Scan MP Controls SA: Start Instrument Interface. – Argument 3 controls the allow- ■ able interface types. Include 0 (laser tracker), 1 (Leica Automa- tion Interface Control interface), or 2 (Leica T-Scan). Instrument Operational Check – ■ Select Device T-Scan. – Set AIC Device Selection to T-Scan ■...
-
Page 9: Hardware Setup
Starting the AIC Driver Manually First, add up to four Leica AT-901 trackers to the SA job. From the appropriate SA folder in the Windows Start Menu, navigate to Interfaces and select Leica Automation Interface (Figure 14-89).
