High-Precision Digital Pressure Switch

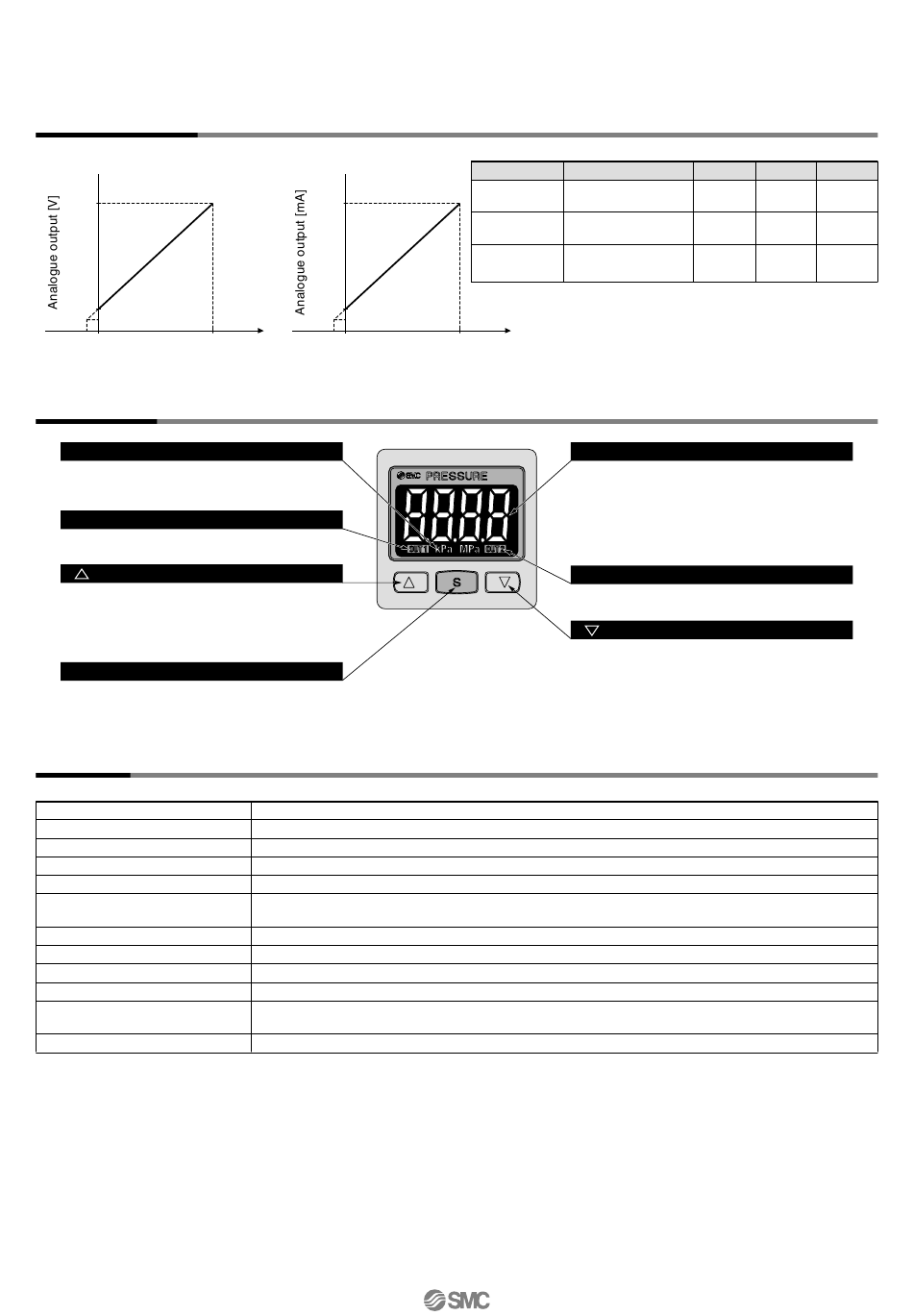

Analogue Output
Output voltage
5
1
0.6
A B C
Descriptions
Unit display
Displays unit being used (only kPa and MPa).
OUT1 Output display (Green)
Lights up when switch output (OUT1) is turned ON.
UP button
Use this button to select the mode or increase the
ON/OFF set value.
It is also used for switching to the peak display
mode.
S SET button
Use this button to switch the mode and set the set
value.
Functions
(Refer to pages 10 and 11 for details.)
Copy function
Auto-preset function
Precision indicator setting function
Peak display function
Bottom display function
Key lock function (Security code
input can be selected)
Zero-out function
Anti-chattering function
Unit display switching function
Power-saving mode
Display resolution-switch function
kPa⇔MPa switch function
2-Colour Display
Output current
20
4
2.4
A B
Pressure
Copies the settings of the master sensor to the slave sensors.
Calculates and enters rough set values automatically from the actual operating conditions.
Can retain the maximum pressure value displayed during measurement.
Can retain the minimum pressure value displayed during measurement.
The key board can be locked to prevent any incorrect function of the switch.
The pressure display can be set at zero when the pressure is open to the atmosphere.
Prevents possible malfunction due to sudden fluctuations in the primary pressure by adjusting the response time.
Converts display resolution from the normal value of 1/1000 to 1/100.
ZSE30A
Series
Range Rated pressure range
For vacuum
0.0 to –101.0 kPa
pressure
For compound
–100.0 to 100.0 kPa
pressure
For positive
–0.100 to 1.000 MPa
pressure
C
Pressure
LCD display
Displays the current pressure condition, setting
mode, and error codes. A display colour type can
be selected from either a single colour display with
red or green, or 2-colour display in which green and
red are switched accordeing to the output. Four
different display settings are available.
OUT2 Output display (Red)
Lights up when switch output (OUT2) is turned ON.
DOWN button
Use this button to select the mode or decrease the
ON/OFF set value.
It is also used for switching to the bottom value
display mode.
Evens out deviations in the displayed value.
Can convert the display value.
Reduces power consumption.
It reduces the monitor to flicker.
Converts the unit between kPa and MPa.
( F ) /ISE30A
A B C
— 0
–101 kPa
— –100 kPa 100 kPa
–0.1 kPa 0 1 MPa
