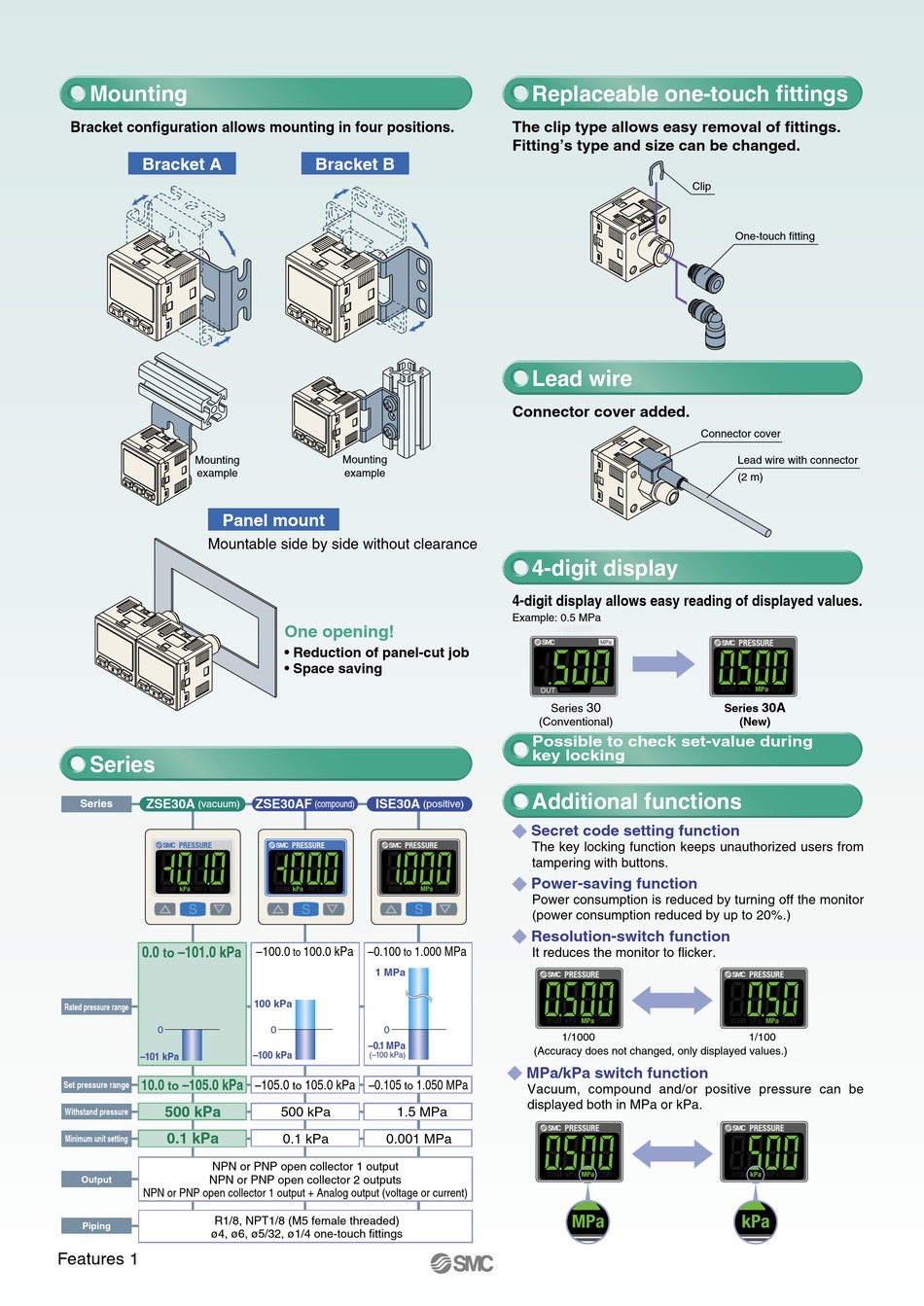

SMC Networks ZSE30A Series Manual page 2

Mounting
Bracket configuration allows mounting in four positions.
Bracket A
Mounting
example
Panel mount
Mountable side by side without clearance
Series
ZSE30A
Series (vacuum)
0.0 –101.0 kPa
to
Rated pressure range
0
–101 kPa
10.0 –105.0 kPa
to
Set pressure range
500 kPa
Withstand pressure
0.1 kPa
Minimum unit setting
NPN or PNP open collector 1 output
NPN or PNP open collector 2 outputs
Output
NPN or PNP open collector 1 output + Analog output (voltage or current)
R1/8, NPT1/8 (M5 female threaded)
Piping
ø4, ø6, ø5/32, ø1/4 one-touch fittings
Features 1
Bracket B
Mounting
example
One opening!
• Reduction of panel-cut job
• Space saving
ZSE30AF ISE30A
(compound) (positive)
–100.0 100.0 kPa –0.100 1.000 MPa
to to
1 MPa
100 kPa
0 0
–0.1 MPa
–100 kPa
(–100 kPa)
–105.0 105.0 kPa –0.105 1.050 MPa
to to
500 kPa 1.5 MPa
0.1 kPa 0.001 MPa
Replaceable one-touch fittings
The clip type allows easy removal of fittings.
Fitting's type and size can be changed.
Lead wire
Connector cover added.
4-digit display
4-digit display allows easy reading of displayed values.
Example: 0.5 MPa
30
Series
(Conventional)
Possible to check set-value during
key locking
Additional functions

Secret code setting function
The key locking function keeps unauthorized users from
tampering with buttons.

Power-saving function
Power consumption is reduced by turning off the monitor
(power consumption reduced by up to 20%.)

Resolution-switch function
It reduces the monitor to flicker.
1/1000
(Accuracy does not changed, only displayed values.)

MPa/kPa switch function
Vacuum, compound and/or positive pressure can be
displayed both in MPa or kPa.
Clip
One-touch fitting
Connector cover
Lead wire with connector
(2 m)
30A
Series
(New)
1/100
