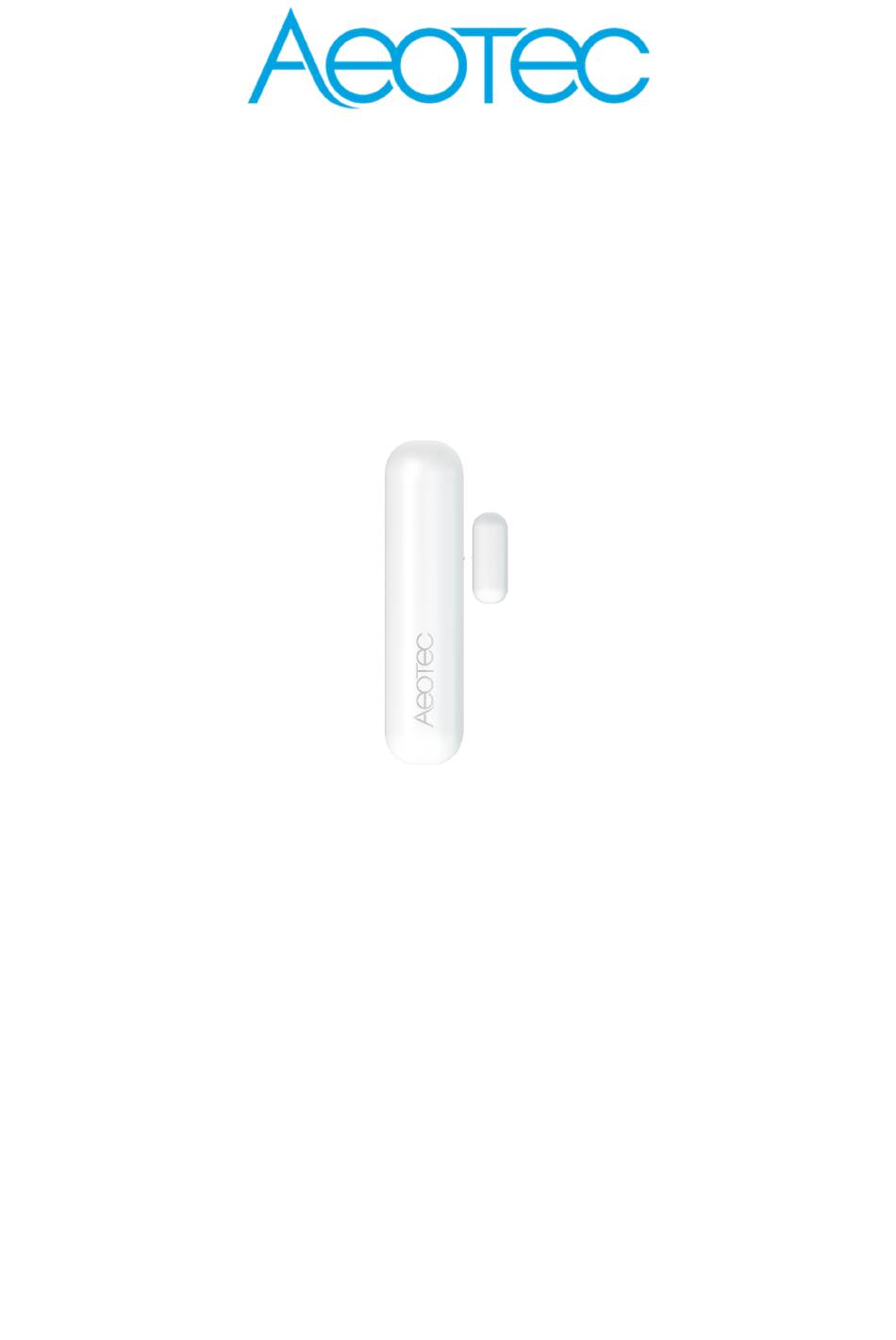

- Page 1 Door / Window Sensor 7...
-
Page 2: Quick Start
Product Description The AEOTEC Door/Window Sensor 7 Pro is a sensor, which detects if your window is opened or closed. The sensor is easily retrofittable. Thanks to its slim design the AEOTEC Door/Window Sensor 7 Pro can be installed unflashy on every... -
Page 3: Prepare For Installation / Reset
window. The sensor just has to be installed on the window casement. Additionally, there has to be a slim magnet installed closely to the sensor at the window frame. By using a patented method the sensor can reliably detect the exact position of the window. Tripple clicking the tamper button includes (adds) and excludes (removes) the device. -
Page 4: Product Usage
Inclusion/Exclusion On factory default the device does not belong to any Z-Wave network. The device needs to be added to an existing wireless network to communicate with the devices of this network. This process is called Inclusion. Devices can also be removed from a network. This process is called Exclusion. Both processes are initiated by the primary controller of the Z-Wave network. -
Page 5: Firmware-Update Over The Air
2. If inclusion still fails, check if both devices use the same frequency. 3. Remove all dead devices from associations. Otherwise you will see severe delays. 4. Never use sleeping battery devices without a central controller. 5. Dont poll FLIRS devices. 6. - Page 6 Setting Description Closed when Magnet near Opened when Magnet near Parameter 4: Visual LED Indications This parameter defines when the red LED will indicate events. Disabling all indications may extend battery life. Value 0 means no indications. Size: 1 Byte, Default Value: 7 (values 1 + 2 + 4 summarized) Setting Description No indications.
- Page 7 On and Off Parameter 8: BASIC command value sent to 2nd Association Group on On event This is the BASIC command value sent in case of On event. Size: 1 Byte, Default Value: 255 Setting Description 0 - 99 Value Value Parameter 9: BASIC command value sent to 2nd Association Group on Off event This is the BASIC command value sent in case of Off event.
-
Page 8: Technical Data
Setting Description Do not se port nd alarm cancellation Send report alarm cancellation Parameter 22: Enalbe/ disbale Binary Sensor report Backwards compatibility, Binary Sensor. Size: 1 Byte, Default Value: 0 Setting Description Disable Enable Parameter 23: Report low battery report when level goes under threshold setting Size: 1 Byte, Default Value: 20 Setting Description... -
Page 9: Supported Command Classes
Dimensions 28x95x35 mm Hardware Platform ZGM130S IP Class IP 20 Battery Type 1 * 1/2 AA Device Type Notification Sensor Generic Device Class Sensor Notification Specific Device Class Routing Sensor Notification Network Operation Reporting Sleeping Slave Firmware Version 02.00 Z-Wave Version 07.15 Z-Wave Product Id 0371.0002.000C... - Page 10 Controller — is a Z-Wave device with capabilities to manage the network. Controllers are typically Gateways, Remote Controls or battery operated wall controllers. Slave — is a Z-Wave device without capabilities to manage the network. Slaves can be sensors, ...
