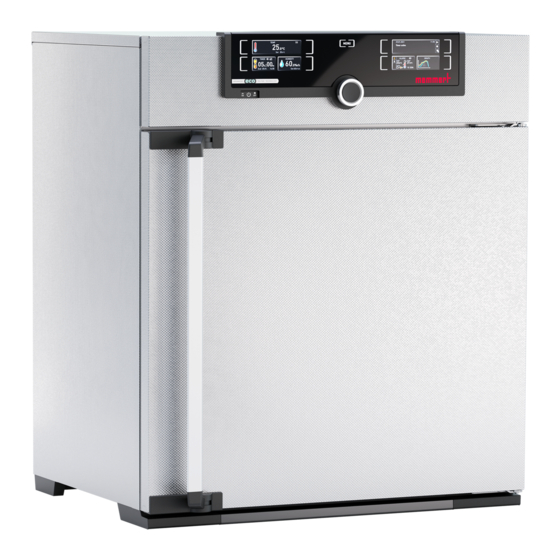

Constant climate chamber, peltier cooled incubator
Hide thumbs Also See for HPPeco:
Table of Contents

Advertisement

Quick Links

Operating manual
HPP
IPP
plus
Constant climate chamber HPPeco
Peltier cooled incubator IPPeco plus
www.memmert.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPPeco and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Memmert HPPeco

Summary of Contents for Memmert HPPeco

  • Page 1 Operating manual plus Constant climate chamber HPPeco Peltier cooled incubator IPPeco plus www.memmert.com...
  • Page 2 Purpose and target audience This manual describes the construction, function, transport operation and maintenance of constant climate chambers HPPeco and cooled incubators IPPecoplus. It is intended for use by trained personnel of the owner, who have the task of operating and/or main- taining the respective appliance.

  • Page 3: Table Of Contents

    Switching off the appliance in an emergency ..........................8 2. Construction and description Design ......................................9 Description ....................................10 Working range of constant climate chambers HPPeco ......................11 Material ...................................... 12 Electrical equipment .................................. 12 Connections and interfaces ............................... 12 Designation (nameplate) ................................
  • Page 4 6. Malfunctions, warning and error messages Warning message of the monitoring function ........................... 40 Power failure ....................................42 7. Menu mode Overview ..................................... 43 Basic operation in menu mode using the example of language selection ................44 Setup ......................................45 Date and Time ....................................

  • Page 5: Safety

    Safety Safety Terms and signs used In this manual and on the appliance itself, certain common terms and signs are used to warn you of possible dangers or to give you hints that are important in avoiding injury or damage. Observe and follow these notes and regulations to avoid accidents and damage.

  • Page 6: Product Safety And Dangers

    Safety Product safety and dangers The appliances described in this manual are technically sophisticated, manufactured using high-quality materials and subject to many hours of testing in the factory. They refl ect the state of the art and comply with recognised technical safety regulations. However, there are still risks involved, even when the appliances are used as intended.

  • Page 7: Requirements Of The Operating Personnel

    Intended use Constant climate chambers HPPeco and cooled incubators IPPecoplus may be used exclusively for temperature and climate testing of materials and substances in the con- text of the procedures and specifi cations described in this manual. Any other use is improper and may result in hazards and damage.

  • Page 8: Changes And Alterations

    Safety Changes and alterations No unauthorised changes or alterations may be made to the appliance. No parts may be added or inserted which have not been approved by the manufacturer. Unauthorised changes or alterations result in the CE declaration of conformity losing its validity, and the appliance may no longer be operated.

  • Page 9: Construction And Description

    Construction and description Construction and description Design Description Overview - HPP110ecoplus 1. ControlCOCKPIT with capacitive func- tion keys and LCD displays 2. Main switch 3. Turn control with confi rmation key 4. Peltier element 5. Inner glass door 6. Slide-in units 7.

  • Page 10: Description

    (heat pump principle). Constant climate chambers HPPeco Additionally, the humidity in the interior can be regulated between 15% rh and 80% rh (rh = relative humidity). The humidity is increased by the evaporation of water from a tank which is then fed into the interior and reduced by condensation on a Peltier module.

  • Page 11: Working Range Of Constant Climate Chambers Hppeco

    Working range of constant climate chambers HPPeco The temperature-humidity diagram specifi es at what range of temperature and humidity a permanent, condensation-free operation of the constant climate chamber HPPeco is possible. If the chamber is in operation at the upper limit or outside the working range for long periods, puddles of water may form inside the chamber and water may force its way out of the door seal.

  • Page 12: Material

    Construction and description Material These appliances fulfi l the current requirements of the RoHS Directive. For more infor- mation about this and about the Material Compliance of these Memmert appliances in general, please visit our homepage at www.memmert.com. Components Material Housing (lid + side panel) Stainless steel 1.4016 - ASTM 430...

  • Page 13: Designation (Nameplate)

    Construction and description Ethernet interface Via Ethernet interface, the appliance can be connected to a network, so that pro- grammes created with the AtmoCONTROL software can be transferred to the appliance and protocols read out. For identifi cation purposes, each appliance connected must have its own unique IP address.

  • Page 14: Technical Data

    Depth of door lock Chamber width (A) 1040 1250 1972 Chamber height (B) 1200 1450 Chamber depth (C) Chamber volume 1060 1360 2140 Weight (including packaging) HPPeco 1400 2000 Power IPPeco 1300 1900 115 V 14,5 HPPeco Current 230 V 10,5 con-...

  • Page 15: Applied Directives And Standards

    Applied directives and standards Based on the standards and guidelines listed in the following, the products described in this manual have received a CE label from the company Memmert: Directive 2004/108/EC amended (Directive of the European Parliament and of the ■...

  • Page 16: Delivery, Transport And Setting Up

    Delivery, Transport and Setting Up Delivery, Transport and Setting Up Safety WARNING The appliance could fall over and seriously injure you. Never tilt the appliance. Only transport in upright position and without load (except standard accessories such as steel grids or shelves). Appliances with castors always have to be moved by two peo- ple.

  • Page 17: Transport

    Delivery, Transport and Setting Up Transport The appliance can be transported in three ways: With a forklift truck or a manual pallet jack; move the forks of the truck entirely under ■ the pallet On its own castors, in case of the corresponding confi guration, for which the catch on ■...

  • Page 18: Setting Up

    Due to its centre of gravity, the appliance can fall over to the front and injure you or other people. Always attach the appliance to a wall with the tilt protection. In case there is not enough space, do not put the appliance into operation and do not open the door. Contact the Memmert service. 3.7.1 Preconditions The installation site must be fl...

  • Page 19: Installation Options

    Delivery, Transport and Setting Up Installation options 1400 Setting up Comments 1060 2200     Bottom Table Check the load capacity     fi rst appliances maxi-     Stacked mum; mounting material (feet) provided ...

  • Page 20: Level And Secure The Device Against Rolling Away (Sizes 1400 And 2200)

    Delivery, Transport and Setting Up Level and secure the device against rolling away (Sizes 1400 and 2200) The height of the appliance can be adjusted using the heavy-duty castors attached to the bottom of the appliance. It can also be secured against rolling away or being shifted. To do this, the feet must be extended.

  • Page 21: Tilt Protection

    First, adjust the setting at the top of the door and, if this is not suffi cient, adjust the screws at the bottom of the door. Door adjustment is also available as a service video: https://www.memmert.com/de/downloads/media/service-videos/ 1. Open the door. 2. Loosen the screws.

  • Page 22: Putting Into Operation

    Putting into operation Putting into operation WARNING Condensation in the electrical components may cause short circuits. After transport- ing or storing the device under humid conditions, remove it from its packaging and let it ventilate for at least 24 hours in normal environmental conditions. Do not connect the device to the mains power during this time.
  • Page 23 Putting into operation 4.1.1 Filling and connecting the water tank (for constant climate chambers HPPeco only) Water specifi cations Only water with the following specifi cations may be used in Memmert appliances: demineralised/deionised ■ Conductivity of 5 – 10 μS/cm ■...

  • Page 24: Switching On

    Putting into operation 4.1.2 Hook drip pan Holders for the drip pan are next to each Peltier dehumidifi er. The drip pan is hooked into the holders from above Switching on Press the main switch on the front of the appliance. The start-up process is shown by three animated white dots If the dots have another colour, an error has occurred (error messages see chapter 6).

  • Page 25: Operation And Control

    Operation and control Operation and control Operating personnel The appliance may only be operated by persons who are of legal age and have been in- structed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experienced person.
  • Page 26 Operation and control Loading the appliance WARNING When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and persons could be severely injured or poisoned. The appliance may only be loaded with ma- terials which do not form any toxic or explosive vapours when heated up, and which cannot ignite.

  • Page 27: Operating The Appliance

    You can also make basic settings here (menu mode). Additionally, warning messages are displayed, e.g. if the temperature is exceeded. In program mode, the parameters defi ned, the program description, the program segment currently active and program duration remaining are displayed HPPeco and IPPecoplus TEMP TEMP LIGHT...
  • Page 28 Operation and control 5.2.2 Basic operation In general, all settings are made according to the following pattern: TEMP TEMP Activate the desired parameter (e.g. temperature). To do so, press the corresponding .5°C activation key on the left or right or the respective display. The activated display is TIMER TIMER lined in colour, the other displays are dimmed.

  • Page 29: Operating Modes

    Operation and control Operating modes The appliance can be operated in different modes: The appliance runs in permanent operation at the values set on the ControlCOCKPIT. Manual mode Operation in this mode is described in chapter 5.3.1 . Operation with digital backwards counter with target time setting, adjustable from 1 Timer operation minute to 99 days (timer): The appliance will run at the values set until the set time has elapsed.
  • Page 30 The minimum temperature that can be reached depends on the surrounding condi- tions. The devices can cool down to 20 °C below room temperature. For this purpose, the Peltier module needs suffi cient ventilation Humidity (for constant climate chambers HPPeco only) HUMIDITY Adjustment range: 10 to 90 % rh Humidifi...
  • Page 31 Operation and control 5.3.2 Operation with digital backwards counter with target time setting, adjustable from 1 minute to 99 days In timer operation, you can adjust the time the appliance runs at the set values. The appliance has to be in manual operating mode for this. Up to a duration of 23 hours 59 minutes, the time is displayed in hh:mm (hours:minutes) format.
  • Page 32 Operation and control 5.3.3 Program mode In this operating mode, programmes saved in the appliance can be started with different combinations of individual parameters (temperature, humidity, interior lighting) at staggered intervals, which the appliance then automatically process- es in sequence. These programs are not created directly at the appliance but ex- ternally at a computer / laptop and using AtmoCONTROL software.
  • Page 33 Operation and control Cancel program You can cancel an active program at any time. 12.Sept.2012 Fr 20.10.2010 20:31 10:44 1. Press the activation key to the right of the status display. The status display is manueller Betrieb Test 012 Ramp 3 automatically highlighted.

  • Page 34: Monitoring Function

    Operation and control Monitoring function 5.4.1 Temperature monitoring The appliance is equipped with a multiple overtemperature protection in accordance with DIN 12 880. This serves to avoid damage to the chamber load and/or appliance in case of a malfunction: electronic temperature monitoring (TWW) ■...
  • Page 35 Press the activation key to the left of the ALARM display. The min set- ■ ting (undertemperature protection) automatically activated. Continue with item 1 For constant climate chambers HPPeco: ALARM ALARM 000°C .0 °C .0 °C Press the activation key to the left of the ALARM display. The temperature moni- ■...
  • Page 36 Operation and control ALARM 1. By turning the turn control, adjust the desired lower alarm limit value, in the exam- °C °C ple on the right 35.5 °C. auto The lower alarm limit value cannot be set higher than the top one. If no undertemper- ature protection limit is required, set the lowest temperature.
  • Page 37 Operation and control 5.4.5 Humidity monitoring (for constant climate chambers HPPeco only) If humidity monitoring was triggered, this is indicated by the humidity display: the actual humidity is highlighted in red and a warning symbol is shown ( ). If the alarm sound has been activated in the Menu mode (sounds, chapter 7.7, indicated by the speaker...
  • Page 38 Operation and control Graph The GRAPH display provides an overview of the chronological sequence of the set val- ues and the actual values as a curve. To close the graphical representation, press the activation key you used to activate it again.

  • Page 39: Ending Operation

    Switch off active appliance functions (turn back the set values). ■ Remove the chamber load ■ For constant climate chambers HPPeco: Check the water tank and fi ll up if necessary ■ (chapter 4.1.1) Switch off the appliance with the main switch ■...

  • Page 40: Malfunctions, Warning And Error Messages

    Malfunctions requiring work inside the appliance may only be rectifi ed by electricians. Observe the separate service manual for this. Do not try to rectify appliance errors yourself but contact the MEMMERT customer ser- vice department or an authorised service point.
  • Page 41 Malfunctions, warning and error messages 6.1.2 Humidity monitoring (for constant climate chambers HPPeco only) Error description Cause of error Troubleshooting Error display symbol HUMIDITY Fill the water tank with water and press ■ Water tank empty the confi rmation key Set 55 .0 %rh...

  • Page 42: Power Failure

    Malfunctions, warning and error messages Error description Cause of error Troubleshooting Error message AI E-3 in the temperature The appliance can temporarily be kept ■ display in service Temperature monitoring sensor is de- TEMP fective. The operating sensor takes over Contact customer service as soon as ■...

  • Page 43: Menu Mode

    Menu mode Menu mode In menu mode, you can make basic settings, load programs and export protocols, as well as adjust appliance parameters. Before changing menu settings, read the description of the respective functions on the following pages to avoid possible damage to the appliance and/or chamber load. To enter menu mode, press the MENU key.

  • Page 44: Basic Operation In Menu Mode Using The Example Of Language Selection

    Menu mode Basic operation in menu mode using the example of language selection In general, all settings in menu mode are done just like in operating mode: Activate the respective display, use the turn control for setting and press the confi rmation key to accept the change.

  • Page 45: Setup

    Menu mode Setup 7.3.1 Overview In the SETUP display, you can set the following parameters: the IP address and subnet mask of the appliance's Ethernet interface ■ (for connection to a network) the unit on the temperature display (°C or °F, chapter 7.3.3) ■...
  • Page 46 Menu mode SETUP IP address 255. 168. 1 0 0 . 100 Subnet mask 255. 255. 0 . 0 3. With the turn control, set the new number, e.g. 255. Unit °C Alarm temp Timer mode Slide-in unit Grid Shelf SETUP IP address 255.
  • Page 47 Menu mode 7.3.5 Slide-in unit type steel grid or shelf Type of slide-in unit (steel grid or shelf) SETUP Here, you have to select the type of slide-in unit (steel grid or shelf) used. The selection IP adress 255. 145. 1 3 6 . 225 Shelf enables you to adjust the control function to the different air fl...
  • Page 48 Menu mode The dehumidifi cation interval function allows the time spans at which the dehumidifi ca- tion peltier modules cool at maximum capacity to be adjusted individually. The preset value of 35 minutes is recommended for basic applications. Adjustment range: Dehum.

  • Page 49: Date And Time

    Menu mode Date and Time In the TIME display, you can set the date and time, time zone and daylight saving time. Changes can only be made in manual operating mode. Always set the time zone (and daylight saving time yes/no) before setting the date and time.

  • Page 50: Calibration

    Menu mode TIME 7. Set daylight savings to off () or on ( ) with the turn control – in this case on Date 12 . 05 . 2012  Time 12 : 00 ). Save the setting by pressing the confi rmation key. ...
  • Page 51 Menu mode Example: Temperature deviation at 30°C is to be corrected JUSTIEREN Calibration Temperatur Cal1 40.0 -0,2 Temperature 30.0 °C Cal1 1. Press the activation key to the right of the CALIB display. The display is enlarged Cal2 100.0 +0,1 40.0 Humidity °C...
  • Page 52 Menu mode Example: Temperature deviation at 30°C is to be corrected TEMP 8. Wait until the appliance reaches the set temperature and displays 30 °C. The ref- .0°C 31.6 °C erence instrument displays for example 31.6 °C. Set 30 .0 °C Temperature Cal1 9.
  • Page 53 7.5.2 Humidity Humidity profi le (for constant climate chambers HPPeco only) Humidity control of the constant climate chamber HPPeco can be adjusted according to customer requirements by means of three freely selectable balance points. For each selected balance point a positive or negative compensation correction value can be set between -10 % and +10 %.
  • Page 54 Menu mode Example: Humidity deviation at 60 % should be corrected Temperature 40.0 Cal1 Humidity 60.0 Cal2 5. Save the setting by pressing the confi rmation key. The corresponding calibration 80.0 Cal3 value is automatically highlighted. Temperature 40.0 Cal1 Humidity 60.0 Cal2 6.

  • Page 55: Program

    Menu mode Program In the Program display, programmes created using the AtmoCONTROL software can be transferred to the appliance and saved on a USB storage medium. Here, you can also select the programme provided for use (chapter 5.3.3 ) and delete programmes. To load a programme from a USB storage medium: Connect the USB storage medium with the saved programme(s) to the interface on the right side of the ControlCOCKPIT.

  • Page 56: Sound

    Menu mode Sound In the Sound display, it can be defi ne whether or not the appliance should emit acoustic signals and, if yes, on which events: on the press of a key ■ at the end of a program ■...

  • Page 57: Protocol

    Menu mode Protocol The appliance continually logs all relevant measured values, settings and error messag- es at 1-minute intervals. The internal log memory is of the continuous memory type. The logging function cannot be switched off and is always active. The measured data are stored in the appliance, safe from manipulation.

  • Page 58: User Id

    Menu mode USER ID 7.9.1 Description With the USER ID function, you can lock the settings of individual (e.g. temperature) or all parameters, so that they cannot be changed at the appliance by accident or unau- thorised persons. You can also lock setting options in menu mode (e.g. adjustment or date and time settings) this way.

  • Page 59: Maintenance And Servicing

    Maintenance and Servicing Maintenance and Servicing WARNING Risk of electric shock. Disconnect the mains plug before any cleaning or maintenance work. WARNING With appliances above a specifi c size, you could become accidentally locked inside, which could put you at risk of death. Do not climb into the appliance! CAUTION Danger of cuts due to sharp edges.

  • Page 60: Regular Maintenance

    Maintenance and Servicing Regular maintenance Once a year, grease the moving parts of the doors (hinges and lock) with thin silicone grease and check that the hinge screws are not loose. To guarantee perfect control, we recommend calibrating (chapter 7.5) the appliance once a year.

  • Page 61: Storage And Disposal

    Storage and disposal Storage and disposal Storage The appliance may only be stored under the following conditions: in a dry and enclosed, dust-free room ■ frost-free ■ disconnected from the power supply ■ Before storage, remove water tube and empty the water tank (chapter 4.1.1). Disposal This product is subject to Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE) of the European Parliament and of the Council of Ministers.
  • Page 62 Storage and disposal Constant climate chamber HPPeco Operating manual Peltier cooled incubator IPPeco plus D49025 Last updated 03/2021 English Memmert GmbH + Co. KG Äußere Rittersbacher Straße 38 91126 Schwabach | E-Mail: sales@memmert.com | Tel. +49 9122 925-0 www.memmert.com facebook.com/memmert.family instagram.com/memmert.family...
