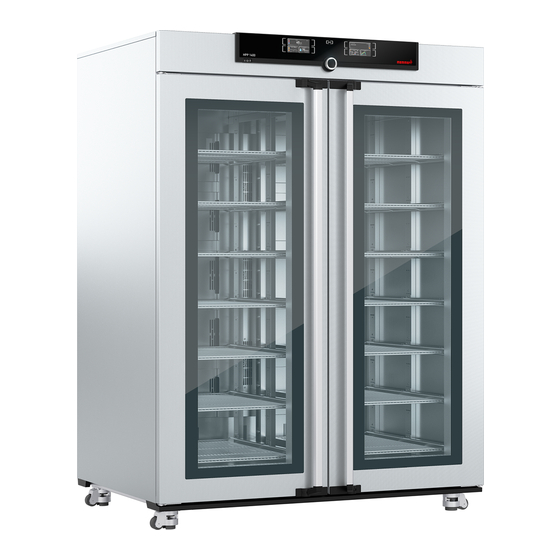

Purpose and target group This manual describes the assembly, function, transport and operation of constant climate chambers HPP 1400 and 2200. It is intended for use by trained personnel of the owner, who have the task of operating and/or maintaining the respective appliance.
Contents Contents For your Safety Terms and signs used......................6 Product safety and dangers ....................7 Requirements of the operating personnel ................7 Responsibility of the owner ....................7 Intended use ........................8 Changes and alterations ...................... 8 Behaviour in case of malfunctions and irregularities ............8 Switching off the appliance in an emergency ..............
Page 5
Contents Malfunctions, warning and error messages Warning messages of the monitoring function ..............37 Malfunctions, operating problems and appliance errors ..........38 Power failure ........................40 Menu mode Overview ..........................41 Basic operation in menu mode using the example of language selection ....... 42 Setup..........................
For your Safety For your Safety 1.1 Terms and signs used In this manual and on the appliance itself, certain common terms and signs are used to warn you of possible dangers or to give you hints that are important in avoiding injury or damage. Observe and follow these hints and regulations to avoid accidents and damage.
For your Safety 1.2 Product safety and dangers The appliances described in this manual are technically sophisticated, manufactured using high-quality materials and subject to many hours of testing in the factory. They contain the latest technology and comply with recognised technical safety regulations. However, there are still risks involved, even when the appliances are used as intended.
1.5 Intended use Constant climate chambers HPP 1400 and 2200 may be used exclusively for temperature and climate testing of materials and substances in the context of the procedures and specifications described in this manual.
Construction and description Construction and description 2.1 Construction Fig. 2 Construction 1 ControlCOCKPIT with capacitive function 6 Lockable castors with extendable feet keys and LCD displays (see page 25) (see page18) 2 On/Off switch (see page 22) 7 Nameplate (see page 12) 3 Door handle (see page 23) 8 Door handle (see page 23) 4 Slide-in units...
Peltier module. 2.3 Material For the outer housing, MEMMERT uses stainless steel (Mat.No. 1.4016 – ASTM 430) and for the interior, stainless steel (Mat.No. 1.4301 – ASTM 304) is used, which stands out through its high stability, optimal hygienic properties and corrosion resistance to many (but not all!) chemical compounds (caution for example with chlorine compounds).
Page 11
Construction and description 2.5.2 Communication interfaces The interfaces are intended for appliances which meet the requirements of IEC 60950-1. USB interface The appliance is fitted by default with a USB interface in accordance with the USB specifica- tion. This way, you can ►...
The nameplate (Fig. 5) provides information about the appliance model, manufacturer and technical data. It is attached to the front of the appliance on the right, behind the right door (see page 9). Typ: HPP 1400 F.-Nr.: 0109.0088 230 V ~ 13,5 A 50/60 Hz 3100 W DIN12880-Kl.3.1...
Construction and description 2.7 Technical data Appliance size 1400 2200 Appliance width D [mm] 1435 2157 Appliance height E (incl. castors) [mm] 1905 1905 Appliance depth F [mm] 1005 1005 Depth of door lock [mm] Chamber width A [mm] 1250 1972 Chamber height B [mm]...
DIN EN 61 010-1 (VDE 0411 part 1):2002-08 DIN EN 61 010-2-010 (VDE 0411 part 2-010):2004-06 EN 61 010-1:2001, EN 61 010-2-010:2003 2.9 Declaration of conformity You can download the EC declaration of conformity of the appliance online: English: http://www.memmert.com/en/service/downloads/ce-statement/ German: http://www.memmert.com/de/service/downloads/eg-konformitaetserklaerung/ D33464 | Date 09/2018...
Construction and description 2.10 Ambient conditions ► The appliance may only be used in enclosed areas and under the following ambient condi- tions: Ambient temperature 16 ºC to 40 ºC Humidity rh max. 70 % non-condensing Overvoltage category Pollution degree Altitude of installation max.
Delivery, transport and setting up Delivery, transport and setting up 3.1 Safety regulations Warning! Because of the heavy weight of the appliance, you could injure yourself if you try to lift it. The appliance may only be transported by a manual pallet jack or forklift truck. Warning! You may get your hands or feet squashed when transport- ing and installing the appliance.
(see page 19). If there is not enough space, do not begin operating the appliance and do not open the doors. Contact the Memmert service (see page 2). 3.6.1 Preconditions The appliance may only be installed on the bottom. The installation site must be flat and horizontal and must be able to reliably bear the weight of the appliance (see Technical data on page 13).
Page 18
Delivery, transport and setting up 3.6.2 Level and secure the device against rolling away The height of the appliance can be adjusted using the heavy-duty castors attached to the bot- tom of the appliance. It can also be secured against rolling away or being shifted. To do this, the feet must be extended.
Page 19
Delivery, transport and setting up 3.6.3 Tilt protection Attach the appliance to a wall with the tilt protection. The tilt protection is included in the delivery. 3. Screw the tilt protection onto the back of the ap- pliance as illustrated. 4.
Page 20
Delivery, transport and setting up 3.6.4 Adjusting the doors You can adjust the doors if necessary, for example if they are warped due to uneven flooring. There are two adjusting screws each at the top and the bottom of each door for this purpose (Fig.
Putting into operation Putting into operation Caution: The first time the appliance is operated, it must not be left unattended until it has reached the steady state. 4.1 Connecting the appliance Caution: Observe the country-specific regulations when making connections (e.g. in Germany DIN VDE 0100 with earth leakage circuit breaker).
Putting into operation 4.3 Switching on Switch on the appliance by pressing the main switch on the front of the appliance ( Fig. 16 ). The start-up process is shown by three animated white dots . If the dots have another colour, an error has occurred (see page 39).
Operation and control Operation and control 5.1 Operating personnel The appliance may only be operated by persons who are of legal age and have been instruct- ed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experi- enced person.
Operation and control 5.3 Loading the appliance Warning! When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and people could be severely injured or poi- soned.
13:30 23.11. Set 30 9 10 14 15 Fig. 20 ControlCOCKPIT of HPP 1400/2200 appliances in operating mode 1 Activation key for temperature setpoint 11 Display digital backwards counter with adjustment target time setting, adjustable 2 Setpoint and actual temperature display...
Page 26
Operation and control 5.4.2 Basic operation In general, all settings are made according to the following pattern: 1. Activate the desired parameter TEMP TEMP (e.g. temperature). To do so, press the .4 °C corresponding activation key on the left °C .5°C or right or the respective display.
Page 27
Operation and control The status display shows you which operating mode or operating state the appliance is currently in. The current operating state is highlighted in colour and indicated by the text display: Appliance is in programme mode 12.09.2012 13:44 ■...
Page 28
Operation and control A high level of air humidity in the interior can only be achieved without condensation if the interior is thoroughly heated. For this reason, how fast the humidity is dynamically adjusted to approach the setpoint depends on the interior temperature. 5.4.5 Operation with digital backwards counter with target time setting, adjustable from 1 minute to 99 days ( timer) In timer operation, you can adjust the time the appliance runs at the set values.
Page 29
Operation and control To deactivate the timer, open the timer display by pressing the TIMER activation key again and then turning the turn control to reduce the timer setting until --:-- is displayed. Confirm with the confirma- tion key. 9:00 23.11. 5.4.6 Programme mode In this operating mode, programmes saved in the appliance can be started with different combinations of individual parameters (temperature, fan speed, humidity) at staggered...
Page 30
Operation and control Cancel programme You can cancel an active LIGHT LIGHT Fr 20.10.2010 20:31 12.11.2012 13:44 programme at any time. Test 012 manueller Betrieb Ramp 1 1. Press the activation key to the right of the status display. The ALARM GRAPH GRAPH...
Operation and control 5.5 Monitoring function 5.5.1 Temperature monitoring The appliance is equipped with a multiple overtemperature protection in accordance with DIN 12 880. This serves to avoid damage to the chamber load and/or appliance in case of a malfunction: ►...
Page 32
Operation and control Emergency operation °C Setting MAX temperature Controller error Fig. 22 Schematic diagram of how TWW temperature monitoring works Automatic temperature monitor ( ASF) ASF is a monitoring device that automatically follows the set temperature setpoint within an adjustable tolerance band (Fig.
Page 33
Operation and control Adjusting temperature monitoring Press the activation key to the left of the ALARM display. The temperature monitoring ALARM ALARM setting is automatically activated ( ). 000°C .0 °C .0 °C auto 000°C auto off Save the selection by pressing the confirma- ALARM tion key.
Page 34
Operation and control 6. Press the confirmation key to confirm. ALARM The ASF tolerance band setting is acti- vated. °C .5 °C auto 7. With the turn control, adjust the desired ALARM tolerance band, e.g. 2.0 K. We recommend a tolerance band of 1 to °C .5 °C 3 K.
Operation and control 3. Accept the selection by pressing the con- ALARM firmation key. The lower humidity alarm limit is automatically highlighted. .0 %rh 4. By turning the turn control, adjust the ALARM desired lower alarm limit, in the example on the right 50 % rh.
Operation and control ► To change the time frame to °C 12.09.2012 Fr 20.10.2010 20: be displayed: Press the activa- tion key next to the ar- row symbols. The time frame to be displayed can now be 12 16 20 24 14.00 16.00 18.00...
Ob- serve the separate service manual for this. Do not try to rectify appliance errors yourself but contact the MEMMERT customer service department (see page 2) or an authorised service point.
Malfunctions, warning and error messages 6.1.2 Humidity monitoring Description Cause Action Water tank Fill the water tank with deminera- page Error symbol empty lised/distilled water and press the confirmation key HUMIDITY Set 55 .0 %rh MaxAl Upper humidity Open the door for 30 sec. and Alarm display ( limit exceeded wait to see if the appliance reliab-...
Page 39
Contact customer page 2 The system files could service white not be loaded Download the firmware ► Orange : The update at memmert. fonts and images could com and install it not be loaded D33464 | Date 09/2018...
Malfunctions, warning and error messages 6.3 Power failure In case of a power failure, the appliance operates as follows: In manual mode After power supply has been restored, operation is continued with the parameters set. The time and duration of the power failure are documented in the log memory. In timer or programme mode In case of an interruption of the power supply of less than 60 minutes, the current pro- gramme is continued from the point at which it was interrupted.
Menu mode Menu mode In menu mode, you can make basic settings, load programmes and export protocols, as well as adjust appliance parameters. Caution: Before changing menu settings, read the description of the respective functions on the fol- lowing pages to avoid possible damage to the appliance and/or chamber load. To enter menu mode, press the MENU key.
Menu mode 7.2 Basic operation in menu mode using the example of language selection In general, all settings in menu mode are done just like in manual mode: Activate the re- spective display, use the turn control for setting and press the confirmation key to accept the change.
Menu mode All other settings can be made accordingly. The settings possible are described in the follow- ing sections. If no new values are entered or confirmed for approx. 30 seconds, the appliance automati- cally returns to the main menu and restores the former values. 7.3 Setup 7.3.1 Overview SETUP...
Page 44
Menu mode SETUP 1. Activate the display. The entry SETUP SETUP address is automatically highlighted. IP address 192. 168. 1 0 0 . 100 Balance Subnet mask 255. 255. 0 . 0 IP Adresse 192. 168. 1 0 0 . 100 Unit Einheit °C...
Page 45
Menu mode 7.3.4 Timer mode Here, you can choose whether the digital backwards counter with target time setting (see page 28) should run setpoint-de- IP address 255. 145. 1 3 6 . 225 pendent or not. This determines whether the timer should not Subnet mask 255.
Page 46
Menu mode 7.3.6 Balance The distribution of the heating/cooling power (balance) between the upper and lower Peltier elements can be corrected depending on the specific application. The adjustment range is from -50 % to +50 %. upper heating/cooling power upper heating/cooling power lower heating/cooling power lower heating/cooling power +30%...
Menu mode 7.3.8 Gateway Gateway The setup entry is used to connect two networks Balance +30 % with different protocols. The gateway is set the same way as the IP address (see page 43). Remote Control Off Gateway 192.168.5 .1 7.4 Date and Time Time In the...
Menu mode 6. Accept the selection by pressing the confirmation key. The adjustment options Date 12 . 05 . 2012 are highlighted. Time 12 : 00 Time zone GMT 00:00 Daylight savings 7. Set daylight savings to off () or on ...
Page 49
Menu mode CAL 3 +1,6°C CAL 2 -0,4°C CAL 1 +0,5°C 10°C 20°C 30°C 40°C 0°C Fig. 30 Schematic example of temperature adjustment Example: Temperature deviation at 30 °C should be corrected. 1. Press the activation key to the right of the JUSTIEREN Calibration CALIB...
Page 50
Menu mode 5. Set the calibration value to 0.0 K and ac- cept the setting by pressing the confirma- Cal1 tion key. 30.0 Cal2 40.0 Cal3 6. Position the sensor of a calibrated refer- ence instrument centrally in the appli- TEMP ance's working chamber.
Page 51
Menu mode 7.5.2 Humidity adjustment Humidity control of the constant climate chamber HPP can be adjusted according to customer requirements by means of three freely selectable balance points. For each selected calibration point, a positive or negative compensation correction value between –10 % and +10 % can be set (Fig.
Page 52
Menu mode JUSTIEREN 5. Save the setting by pressing the confir- mation key. The corresponding calibra- Temperature 40.0 Cal1 tion value is automatically highlighted. Humidity 60.0 Cal2 80.0 Cal3 6. Set the calibration value to 0.0 K and ac- cept the setting by pressing the confirma- Temperature 40.0 Cal1...
Menu mode 7.6 Program PROG In the display, programmes created using the AtmoCONTROL software can be trans- ferred to the appliance and saved on a USB storage medium. Here, programme to be used in manual mode can also be selected (see page 29) and programmes can be deleted. To load a programme from a USB stor- age medium: Connect the USB storage medium with the saved programme(s)
Menu mode 7.7 Sound Sound In the display, it can be define whether or not the appliance should emit acoustic signals and, if yes, on which events: ► on the press of a key ► at the end of a programme ►...
Menu mode 7.8 Protocol The appliance continually logs all relevant measured values, settings and error messages at 1-minute intervals. The internal log memory is of the continuous memory type. The logging function cannot be switched off and is always active. The measured data are stored in the appliance, safe from manipulation.
Menu mode 7.9 User-ID 7.9.1 Description With the User-ID function, you can lock the settings of individual (e.g. temperature) or all parameters, so that they cannot be changed at the appliance by accident or unauthorised persons. You can also lock setting options in menu mode (e.g. adjustment or date and time settings) this way.
Maintenance and service Maintenance and service 8.1 Cleaning Warning! Danger due to electric shock. Before doing any maintenance work, pull out the mains plug. Warning! In case of appliances of a certain size, you can get accidentally locked in, which is life-threatening. Do not climb into the appliance! Caution! Danger of cuts due to sharp edges.
Maintenance and service 8.2 Regular maintenance Once a year, grease the moving parts of the doors (hinges and lock) with thin silicone grease and check that the hinge screws are not loose. To guarantee perfect control, we recommend to calibrate the appliance once a year (see page 48).
Storage and disposal Storage and disposal 9.1 Storage The appliance may only be stored under the following conditions: ► in a dry and enclosed, dust-free room ► frost-free ► disconnected from the power supply Before storage, remove water tube and empty the water tank (see page 21). 9.2 Disposal This product is subject to the Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) of the European Parliament...
Index Index Menu 41, 47 Minimum clearances 17 Accessories 15 Electrical connection 10 Monitoring function 31 Acoustic signals 48 Electrical equipment 10 Monitoring temperature 31 Activation button 26 Electronic temperature moni- Adjusting doors 20 toring 31 Adjustment , 18 Emergency 8 Nameplate 12 Alarm 31, 32, 34, 37 Ending operation 36...
Page 61
Index Switching off 36 Switching on 22 Unit 44 Unpacking 16 USB interface 11, 55 Technical data 13 User ID 56 Temperature 27 Temperature adjustment 48 Temperature comparison 48 Warning messages 11, 37 Temperature deviation 49 Water specifications 21 Temperature monitor 31, 32 Water tank 21 Temperature monitoring 30, Weight 13...
