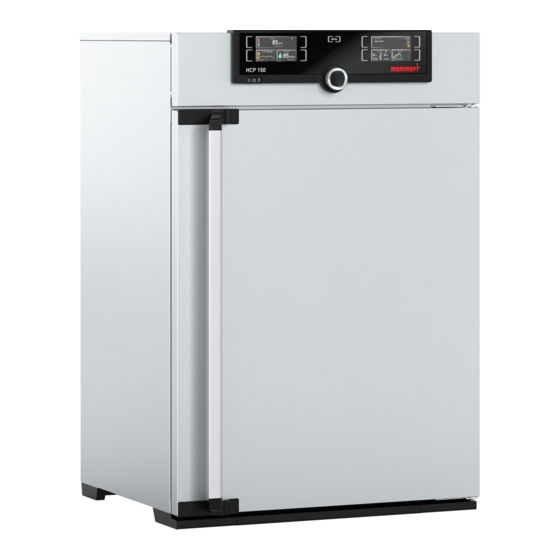

- Page 1 ASSEMBLY INSTRUCTIONS FOR STACKING ICO150 AND ICO240 HCP150 AND HCP240...
-
Page 2: Manufacturer And Customer Service
DE-91186 Büchenbach Germany Please contact our customer service department before sending appliances for repair or before returning equipment, or the shipment may be refused. © 2019 MEMMERT GmbH + Co. KG D39166 | Stand 09/2019 Subject to change without notice... -
Page 3: About This Manual
About this manual About this manual Purpose and target audience This manual provides instructions on stacking two identical ICO (ICOmed) CO incubators or two identical HCP humidity chambers. It is intended for use by trained personnel of the operating company. If you have been assigned with the installation of the appliance, you should read this manual carefully before starting work. -
Page 4: General Information
General information General information Two ICO (ICOmed) incubators or two HCP humidity chambers of the same size can be stacked on top of each other. For secure stacking, stacking corners must be inserted in all four corners on the under- side of the upper appliance. -
Page 5: Safety Regulations
Safety regulations Safety regulations WARNING Because of the heavy weight of the appliance, you could injure yourself if you try to lift it. At least two people are needed to carry size 50 appliances, and four people are required for size 105 and 150 appliances. - Page 6 ICO/ICOmed/HCP stacking ICO/ICOmed/HCP stacking 3.1 Preparations for mounting using a sub-frame 3.1.1 Remove the pre-assembled appliance feet. NOTICE ► If the lower appliance is mounted on a sub-frame, the pre-assembled adjustable feet must be removed. 1. Lift the lower appliance onto the electric manual pallet jack.
- Page 7 ICO/ICOmed/HCP stacking 3.2 Stacking process 3.2.1 Stacking process for size 150 appliances using a sub-frame 1. Lift the lower appliance onto the sub-frame. ► The appliance feet must engage with the plastic leg plugs on the sub-frame. 2. Lift the upper appliance. 3.
- Page 8 ICO/ICOmed/HCP stacking 3.2.2 Stacking process for size 240 appliances using a sub-frame 1. Lift the lower appliance onto the sub-frame. ► The appliance feet must engage with the plastic leg plugs on the sub-frame. 2. Lift the upper appliance using an electric manual pallet jack. 3.
- Page 9 ICO/ICOmed/HCP stacking 4. Slowly and carefully move it over the lower appliance ⒶⒷ. NOTICE ► The stacking corners must align with the top of the lower appliance. 5. Slowly release the appliance Ⓒ. 6. Check that the appliance is supported on all corners. 7.
- Page 10 ICO/ICOmed/HCP stacking 3.3 Fitting the connecting plate 1. Loosen the screwed-in M3x6 Torx screws on the appliance’s reverse panel. 2. Mount the connecting plate using M3x6 Torx screws (TX15). D39166 | date 09/2019...
- Page 11 ICO/ICOmed/HCP stacking 3.4 Fitting wall brackets NOTICE The adjustable wall brackets from the stacking set must be used for size 150 and 240 appliances. 1. Remove one M3x6 Torx screw from each of the appliances on the left or right side of the frame.
- Page 12 Moving stacked appliances Moving stacked appliances WARNING The stacked appliances could fall over and cause serious injury if they are moved. After being fi tted to the wall, appliances may only be moved slightly for servicing purposes. To do so, proceed as follows: 1.
- Page 16 ICO/ICOmed/HCP assembly instructions D39166 | Version 09/2019 English Memmert GmbH + Co. KG Postfach 1720 | D-91107 Schwabach 15/06/2012 Tel. +49 9122 925-0 | Fax +49 9122 14585 E-Mail: sales@memmert.com HPP/IPPplus English facebook.com/memmert.family D24029 Die Experten-Plattform: www.atmosafe.net...
