Summary of Contents for SGM LEKTRA RPL81

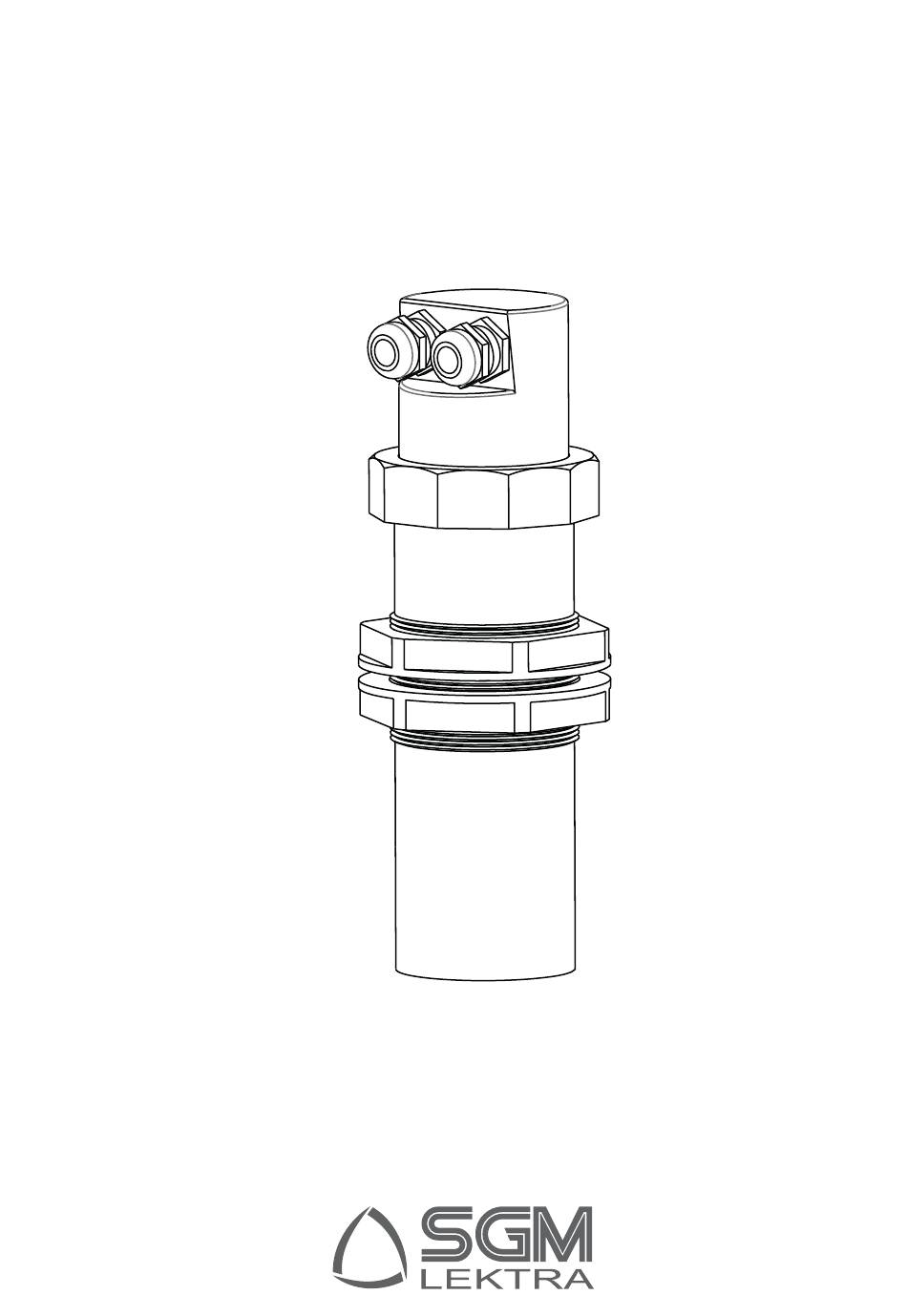

  • Page 1 RPL81 80GHz Radar level transmitter technical documentation EN Rev. of 11-01-2021...

  • Page 2: Table Of Contents

    RPL81 - contents CONTENTS 1-WARRANTY page 3 2-PRODUCT page 4 3-PERFORMANCE SPECIFICATIONS page 5 4-DIMENSIONS page 6 5-INSTALLATION page 7 6-ELECTRICAL CONNECTIONS page 10 7-CONFIGURATION MODES page 11 8-OPERATOR INTERFACE page 16 9-QUICK SETUP page 17 10-ADVANCED SETUP page 25...

  • Page 3: 1-Warranty

    Contract. In no circumstances shall SGM LEKTRA be liable for direct, indirect or consequential or other loss or damage whether caused by negligence on the part of the company or its employees or otherwise howsoever arising out...

  • Page 4: 2-Product

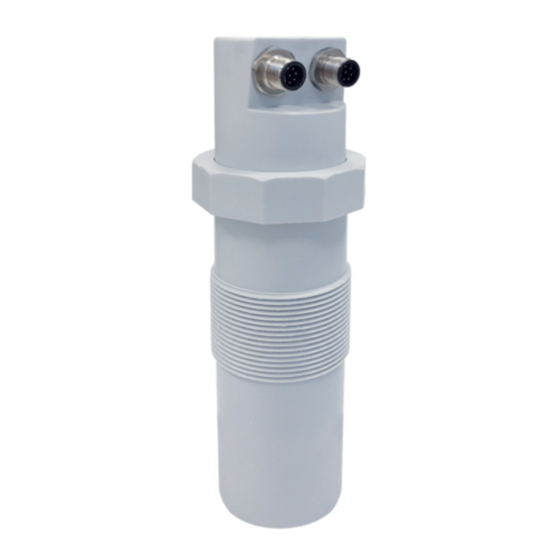

    RPL81 - product 2- PRODUCT IP66 Version IP68 Version 1. Skintop M16 (IP66 version) 2. Head fi xing bolt 3. Fixing bolt 4. Watertight connector M16 (IP68 version) 5. Sensor IDENTIFICATION Each meter has an adhesive identifi cation plate on which are indicated the meter main data.

  • Page 5: 3-Performance Specifications

    RPL81 - features 3-FEATURES Housing/sensor material Mechanical installation 2” GAS M (Flange in PP DN80 (opt.) Protection degree IP66/IP68 (Sensor) - IP68 (opt.) Electrical connection Terminals or watertight connector IP68 (opt.) Working temperature -20 ÷ +60°C Pressure from 0,5 to 1,5 bar (absolute)

  • Page 6: 4-Dimensions

    RPL81 - dimensions 4-DIMENSIONS 5.1 MECHANICAL DIMENSIONS N° 2 WATERTIGHT CONNECTOR M12x1,5 IP66 VERSION IP68 VERSION N° 2 SKINTOP M16x1,5 Ch.68 N° 2 FIXING BOLT 2" 2" G Ø55,5 DN80 PN6 UNI 1092-1 flange in PP (Opt.) 2" GAS Page 6 of 40...

  • Page 7: 5-Installation

    RPL81 - installation 5-INSTALLATION 5.1 MOUNTING PRECAUTIONS 5.1.1 Mounting position - Leave a 300mm (d) minimum distance between the sensor and the tank smooth wall. - Use a protective cover to protect the sensor from weather and direct sunlight (c).
  • Page 8 In case of nozzle installation, make sure the sensor bottom protrudes at least 10mm from the bottom of the nozzle. Max 90mm. ≥10mm. 5.1.4 Installation with bracket By installing the RPL81 with the bracket it is possible to orient the emission lobe perpendicular to inclined surfaces Page 8 of 40 www.sgm-lektra.com...
  • Page 9 The level measurement is possible thanks to the Auto-Tuned statistical fi lter. Should rarely need to adjust the fi lter setting by editing 2 RPL81 sensor programming parameters: - FILTER; this parameter is present in the Quick Setup menu and in the Advanced Confi guration “SETUP” menu;...

  • Page 10: 6-Electrical Connections

    RPL81 - electrical connections 6-ELECTRICAL CONNECTIONS 6.1 IP66 VERSION CONNECTIONS 1) Separate the engine control cables or power cables from the RPL81 connection cables 2) Open the cap by unscrewing. 3) Lead the cables into the transmitter through the glands 4) Close the cap and tighten the cable glands 4÷20mA...

  • Page 11: 7-Configuration Modes

    3) MODBUS RTU communication S/W, cod.010F105A, for RPL81 transmitter With this software is possible: - to connect the RPL81 transmitters in MODBUS RTU network by selecting the UID address - to read on your PC monitor all measures in reading and RPL81 operation data - to program all RPL81 confi...
  • Page 12 MODBUS REGISTERS FOR RPL81 Address Address (N°of Type Description (dec) (hex) registers) unsigned int Distance unsigned int Level fl oat Level % fl oat Analog output unsigned int Distance 4mA unsigned int Distance 20mA unsigned int DAC 4mA unsigned int...
  • Page 13 MODBUS REGISTERS FOR RPL81 Measure Note unit Baud rate 9600bps 8data bit 2stop bit no parity no HW fl owcontrol 0:MAX 1:MIN 0:Norm_disexcited 1:Norm_excited 0:disabled 1:enabled 0:MAX 1:MIN 0:Norm_disexcited 1:Norm_excited 0:disabled 1:enabled 0:EMPTYING 1:FILLING 0:disabled 1:enabled 0:disabled 1:enabled 0…32767 4:21.5mA 6:38.5mA 8:HoldLastValue 0: off...
  • Page 14 To set the 0% level measurement (4mA) it is necessary that the real level is the one corresponding to the “4mA Distance”; alternatively it is possible to place a target orthogonally to the RPL81 transmitter at a distance equivalent to the 0% level. Wait until the ECO LED fl ashes for at least 30s, press simultaneously P1 and P2, release them and verify that the ECO LED remains turned on.
  • Page 15 RPL81 - confi guration modes 7.3 CALIBRATION / CONFIGURATION VIA VL620/VL621 The VL620/VL621 programming module can be mounted and removed from the RPL81 without aff ecting the unit operation. Unscrewing the cap (IP66 vers.), the VL620 module can be connected or disconnected.

  • Page 16: 8-Operator Interface

    Displayed at the top alerts that there is a generic error; press SCROLL to show the message that indicates the present error type. The RPL81 returns automatically to RUN mode. QUICK SETUP - Menu with easy access for quick basic parameters confi guration.

  • Page 17: 9-Quick Setup

    RPL81 - quick setup 9-QUICK SETUP 9.1 - Quick Setup menu structure Parameter Default Values Set Distance 4mA 10000mm 0000 mm Set Distance 20mA 500mm 0000 mm Set Distance 4mA > Standard Fast Starndard Set Distance 20mA Slow Filter Type...
  • Page 18 RPL81 - quick setup 9.2.1 SET DISTANCE 4mA SET DISTANCE 4mA SET DISTANCE 20mA FILTER TYPE Press ENTER to display the distance value associated with 4mA output. FILTER COEFFICENT BLIND DISTANCE DISPLAY RL1 THRESHOLD RL2 THRESHOLD SET DISTANCE 4mA Use SCROLL and UP ARROW to modify that value; in the example the 3500 mm 4mA distance is 3500mm.
  • Page 19 RPL81 - quick setup 9.2.3 FILTER TYPE SET DISTANCE 4mA SET DISTANCE 20mA MEDIUM 3 confi gurations are available: FILTER COEFFICENT BLIND DISTANCE STANDARD: The update speed of the measurement variation is directly DISPLAY proportional to the value set in the FILTER parameter.
  • Page 20 RPL81 - quick setup 9.2.4 FILTER COEFFICIENT SET DISTANCE 4mA SET DISTANCE 20mA FILTER TYPE Press ENTER. FILTER COEFFICENT Use SCROLL and UP ARROW to modify the value. BLIND DISTANCE Input a value from 1 to 99. DISPLAY 1 maximum speed, 99 maximum slowness.
  • Page 21 RPL81 - quick setup 9.2.5 BLIND DISTANCE SET DISTANCE 4mA SET DISTANCE 20mA FILTER TYPE Press ENTER. FILTER COEFFICENT The BLIND ZONE is used to avoid undesired measures near the transmitter. BLIND DISTANCE DISPLAY RL1 THRESHOLD RL2 THRESHOLD Use SCROLL and UP ARROW to modify the value. Press ENTER to confi rm.
  • Page 22 RPL81 - quick setup 9.2.7 RL1 THRESHOLD SET DISTANCE 4mA SET DISTANCE 20mA FILTER TYPE Press ENTER to display the previous setting. Set the distance from the FILTER COEFFICENT sensor BLIND DISTANCE DISPLAY RL1 THRESHOLD RL2 THRESHOLD Use SCROLL and UP ARROW to modify the value; in the example the RL1 max.
  • Page 23 NB - RL2 inactive with 0000mm When confi rming with the ENTER button the maximum level threshold value storage, in the example 3000mm, the RPL81 activates RL2 with the following default settings for level alarm threshold: 1) MIN / MAX = MAX; maximum distance alarm 2) DELAY = 0 sec.;...
  • Page 24 RPL81 - advanced confi guration 10-ADVANCED CONFIGURATION 10.1 - “SETUP” MENU SET DISTANCE 4mA 0000mm SETUP SET DISTANCE 4mA SET DISTANCE 20mA 0000mm SET DISTANCE 20mA STANDARD FILTER TYPE FAST SLOW FILTER COEFFICIENT VALUE FILTER COEFFICENT 0000mm BLIND DISTANCE BLIND DISTANCE...

  • Page 25: 10-Advanced Setup

    RPL81 - advanced confi guration 10.2.1 - SET DISTANCE 4mA SET DISTANCE 4mA SET DISTANCE 20mA FILTER TYPE Position the cursor on DISTANCE 4mA, press ENTER to access. FILTER COEFFICIENT BLIND DISTANCE ACTUAL LEV. 4mA ACTUAL LEV. 20mA RELAYS Use UP ARROW and SCROLL to modify the value.
  • Page 26 RPL81 - advanced confi guration 10.2.5 - BLIND DISTANCE SET DISTANCE 4mA SET DISTANCE 20mA FILTER TYPE Position the cursor on DISTANCE 4mA, press ENTER to access. FILTER COEFFICIENT Represent the “BLIND ZONE” BLIND DISTANCE ACTUAL LEV. 4mA ACTUAL LEV. 20mA...
  • Page 27 RPL81 - advanced confi guration 10.2.8 - RELAYS SET DISTANCE 4mA SET DISTANCE 20mA FILTER TYPE Position the cursor on RELAYS, press ENTER to access. FILTER COEFFICIENT BLIND DISTANCE ACTUAL LEV. 4mA ACTUAL LEV. 20mA RELAYS In this sub-menù it’s possible to setup onboard relays RL1 can be set as threshold relay or pump-control relay;...
  • Page 28 RPL81 - advanced confi guration 10.2.8.1.3 - DELAY VALUE MIN/MAX Position the cursor on DELAY, press ENTER to access. DELAY SAFETY ANABLE/DISABLE MIN/MAX HYSTERESIS It’s possible to set the activation delay for the selected relay, from 0 to 99 sec.
  • Page 29 RPL81 - advanced confi guration 10.2.8.2 - RL1 PUMP (only for RL1) RL1 THRESHOLD Position the cursor on RL1 PUMP, press ENTER to access RL2 THRESHOLD RL1 PUMP A pump control functioning activation, with hysteresis, is possible two thresholds setting is required: UPPER upper and lower threshold.
  • Page 30 RPL81 - advanced confi guration 10.2.8.2.3 - DELAY Position the cursor on DELAY, press ENTER to access. UPPER LOWER DELAY FILL./EMPT. ENABLE/DISABLE Set the relay delay activation, from 0 to 99 sec. Use UP ARROW and SCROLL to modify the value.
  • Page 31 RPL81 - advanced confi guration 10.3 “DISPLAY” menu DISTANCE mm >1 VALUE DISPLAY DISPLAY VALUES LEVEL mm 2 VALUES LEVEL % OUTPUT mA 1 VALUE >2 VALUES >PRIMARY VALUE DISTANCE mm SECONDARY VALUE LCD CONTRAST LIVEL mm LCD CONTRAST LIVEL %...
  • Page 32 LCD CONTRAST Position the cursor on WELCOME TEXT, press ENTER to access. WELCOME TEXT It’s possible to edit or delete the message that is displayed by the RPL81 during the ignition phase. WELCOME TEXT Use UP ARROW (up scroll) and SCROLL (down scroll) to change the digit;...
  • Page 33 RPL81 - advanced confi guration 10.5 “DIAGNOSTIC” menu NO ECHO FOUND DISABLE ECHO IN BLIND DIAGNOSTIC ALARM CONFIGURATION >ENABLE DISTANCE >120% MEASURE STATUS PEAK VALUES >DISPLAY VALUES PEAK VALUES Max 0000mm RESET VALUES Min 0000mm OUTPUT SIMUL OUTPUT SIMUL 00.0mA 10.6 - DIAGNOSTIC...
  • Page 34 RESET VALUES Displays the max. and min. distance measured from power on. LEFT ARROW to exit. PEAK VALUES NB - The peak values stored are erased every time the RPL81 turns-off 0000mm 0000mm 10.6.3.2 - RESET VALUES Position the cursor on RESET VALUES, press ENTER to access.
  • Page 35 RPL81 - advanced confi guration 10.7 “SERVICE” menu 21.5 mA 3.85 mA SERVICE OUTPUT SAFE MODE >HOLD LAST VALUE SET UID SET UID ENGLISH >ITALIANO LANGUAGE FRANCAIS F_WINDOW F_WINDOW RESTORE SETTINGS OK TO CONFIRM BLUETOOTH CANGE DEVICE PIN RESET MODULE 10.8 - SERVICE...
  • Page 36 Example: F_WINDOW parameter set to 5. SET WIDTH - The RPL81 detects an echo signal which is 4 meters from the sensor. - Suddenly, the echo signal disappears and a new echo signal to 3.5 mt away from the sensor is detected.
  • Page 37 LANGUAGE F_WINDOW RESTORE SETTING BLUETOOTH Press ENTER to restore the RPL81 default settings LEFT ARROW to exit without restored the RPL81 default settings OK TO CONFIRM 10.8.6 - BLUETOOTH (OPTIONAL) OUTPUT SAFE MODE SET UID Position the cursor on BLUETHOOT, press ENTER to access...
  • Page 38 10.9 “INFO” menu SGM-LEKTRA RPL81 INFO FIRMWARE REV. 10.9.1 - INFO SETUP DISPLAY Position the cursor on INFO, press ENTER to access. DIAGNOSTIC SERVICE INFO SGM-LEKTRA In addition to information about the manufacturer, are displayed the RPL81 fi rmware revision and the confi guration index FIRMWARE REV.
  • Page 39 Page 39 of 40 www.sgm-lektra.eu...

  • Page 40: 11-Factory Test And Quality Certificate

    Documentation subject to technical change with no prior warning 11-FACTORY TEST AND QUALITY CERTIFICATE In conformity to the company and check procedures I certify that the equipment: (Radar level transmitter) is conform to the technical requirements on Technical Data and it is made in conformity to the procedure Quality Control Manager: ............
