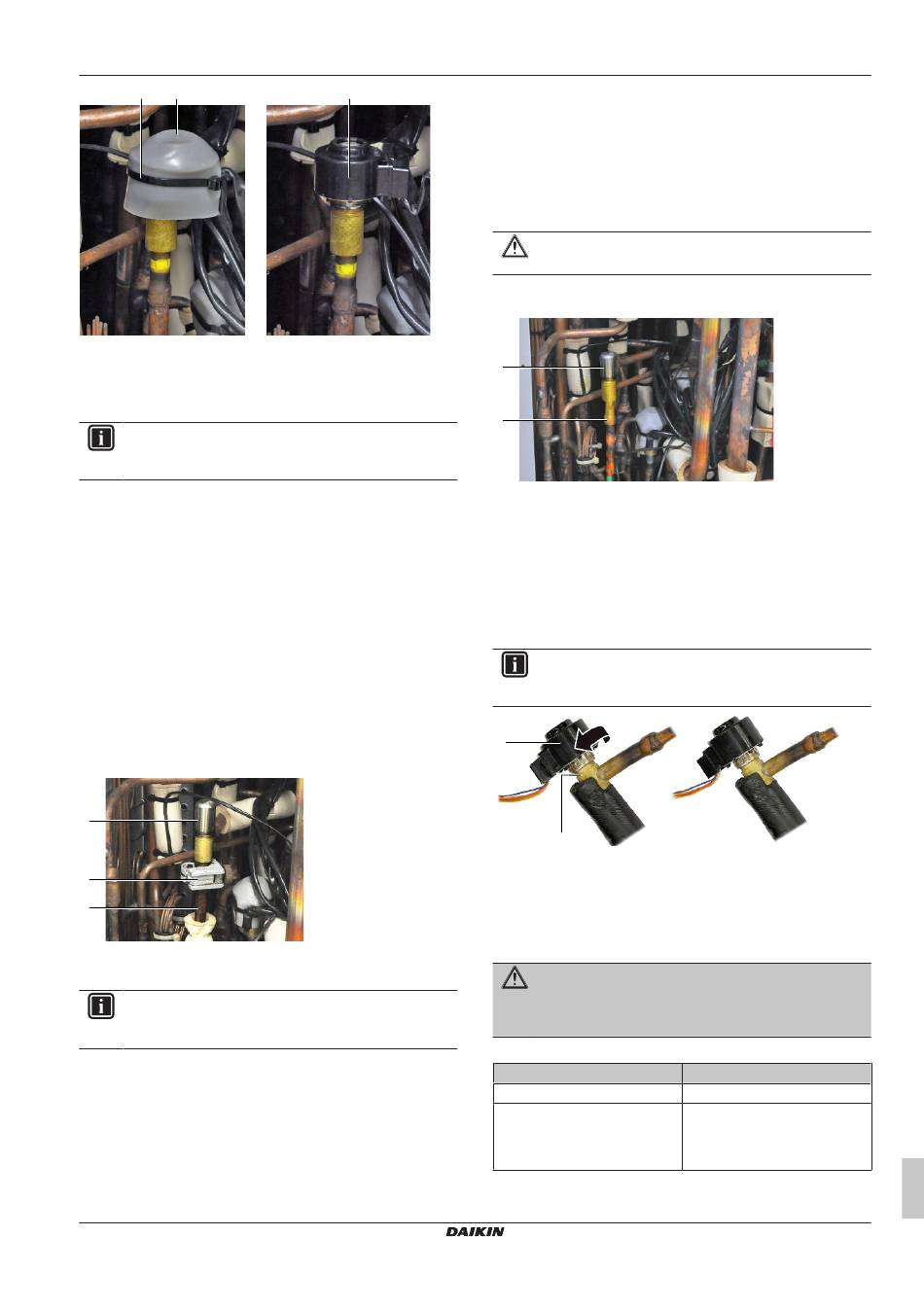

a b
a Tie strap
b Expansion valve cover
c Expansion valve motor
3 Pull the expansion valve motor to remove it from the expansion
valve body.
INFORMATION
It may be needed to turn the expansion valve motor 1/8
turn counter clockwise to unlock it.
4 Cut all tie straps that fix the expansion valve motor harness.
5 Disconnect the expansion valve motor connector from the
appropriate PCB. See "To perform an electrical check of the
expansion valve" on page 90
valve connectors and their locations.
6 To install the expansion valve motor, see
procedures" on page 90.
To remove the expansion valve body
Prerequisite: Recuperate the refrigerant from the refrigerant circuit,
see "4.2.2 Repair procedures" on
Prerequisite: If needed, remove any parts or insulation to create
more space for the removal.
1 Remove the expansion valve motor, see
procedures" on page 90.
2 Cut the expansion valve pipes using a pipe cutter.
a
c
b
a Expansion valve body
b Expansion valve pipe
c Pipe cutter
INFORMATION
The expansion valve and motor can have a different
configuration / layout.
3 Remove the expansion valve body.
4 Supply nitrogen to the refrigerant circuit. The nitrogen pressure
MUST NOT exceed 0.02 MPa.
5 Heat the ends of the expansion valve pipes using an oxygen
acetylene torch and remove the expansion valve pipe ends.
6 Stop the nitrogen supply when the piping has cooled down.
7 To install the expansion valve body, see
procedures" on page 90.
RYYQ+RYMQ+RXYQ8~20U7Y1B
VRV IV+ Heat Pump
ESIE18-14 – 2019.07
c
for an overview oft he expansion
"3.5.2 Repair
page 136.
"3.5.2 Repair
"3.5.2 Repair
To install the expansion valve body
1 Install the expansion valve body in the correct location and
correctly oriented.
2 Supply nitrogen to the refrigerant circuit. The nitrogen pressure
MUST NOT exceed 0.02 MPa.
3 Wrap a wet rag around the expansion valve body and solder
the refrigerant pipes to the expansion valve body.
CAUTION
Overheating the valve will damage or destroy it.
4 After soldering is done, stop the nitrogen supply after the
component has cooled‑down.
a
b
a Expansion valve body
b Expansion valve pipe
5 To install the expansion valve motor, see
procedures" on page 90.
6 Add refrigerant to the refrigerant circuit, see
procedures" on page 136.
To install the expansion valve motor
1 Install the expansion valve motor on the expansion valve body.
INFORMATION
Turn the expansion valve motor 1/8 turn clockwise to lock it
on the expansion valve body.
a
b
a Expansion valve motor
b Pipe
2 Route the expansion valve motor harness towards the
appropriate PCB.
3 Connect the expansion valve motor connector to the
appropriate PCB.
WARNING
When reconnecting a connector to the PCB, do NOT apply
force, as this may damage the connector or connector pins
of the PCB.
4 Fix the expansion valve motor harness using new tie straps.
Is the problem solved?
Yes
No
3 Components
"3.5.2 Repair
"4.2.2 Repair
Action
No further actions required.
Return to "3.5.1 Checking
procedures" on page 89 of the
expansion valve and continue
with the next procedure.
