Daikin VRV IV+ Service Manual page 122

3 Components

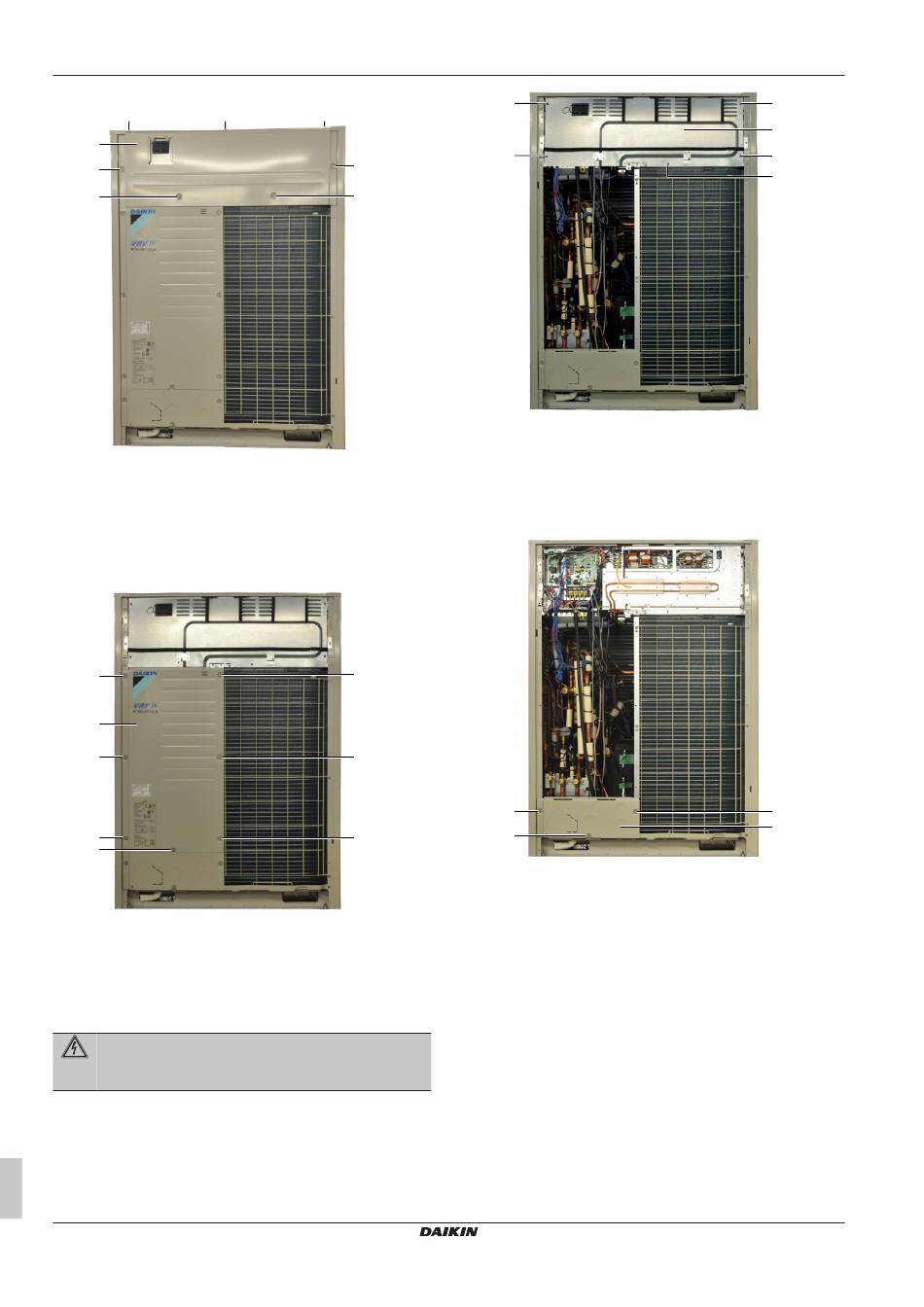

To remove the upper front plate
a a
b
a
a
a Screw
b Upper front plate
5 Loosen and remove the 7 screws (a) that fix the upper front
plate assembly.
6 Lift the upper front plate assembly (b) and remove it from the
unit.
To remove the front plate
a
b
a
a
a
a Screw
b Front plate
7 Loosen and remove the 7 screws (a) that fix the front plate
assembly.
8 Lift the front plate assembly (b) and remove it from the unit.
To remove the switch box cover
DANGER: RISK OF ELECTROCUTION
Confirm rectifier voltage is below 10 V DC before
proceeding.
Service manual
122
https://daikin-p.ru/catalog/vrv-daikn/naruzhnye-vrv-bloki-daikin
a
a
a
a
a
a
a
a
a Screw
b Switchbox cover
9 Loosen and remove the 5 screws (a) that fix the switchbox
cover.
10 Remove the switchbox cover (b) from the unit.
To remove the lower front plate
a
a
a Screw
b Lower front plate
11 Loosen and remove the 3 screws (a) that fix the lower front
plate assembly.
12 Lift the lower front plate assembly (b) and remove it from the
unit.
a
b
a
a
a
b
RYYQ+RYMQ+RXYQ8~20U7Y1B
VRV IV+ Heat Pump
ESIE18-14 – 2019.07
