Total Access 1100F
OSP GigE Aggregation Unit
Phone
1 to 48 Ports
DSL Modem
Product Specifications
Interfaces
Network
I
Two (2) modular optical GigE network feeds (SFP IEEE
802.3 compliant)
Subscriber
I
Four (4) SFP interfaces for electrical or optical exten-
sions
Mechanical
I
Dimensions: 8 in. H x 9 in. W x 3 in. D
I
Weight: 15 lbs
I
OSP mounting: Pole, pedestal, cross-box, remote
terminal
I
Indoor mounting: SMB and MDU applications
Management
I
Local: Local craft interface via VT100 terminal
I
Remote: TL1, Telnet, SNMP, Total Access EMS
Power
I
Span powered
I
Local 110 VAC powered
I
Local -48 VDC powered
Electrical
I
Line fusing: 1.5 amp
I
Line power: 1 to 4 line-powered pairs
Regulatory Standards
I
NRTL Safety Listed
I
GR-487-CORE, Issue 2
Environmental
I
Operating temperature: –40°C to +75°C
I
Storage temperature: –40°C to +85°C
I
Relative humidity: 95 percent, noncondensing
Specifications are subject to change without notice. ADTRAN and Total Access are
registered trademarks of ADTRAN, Inc. All other registered trademarks and trademarks
mentioned in this publication are the property of their respective owners.

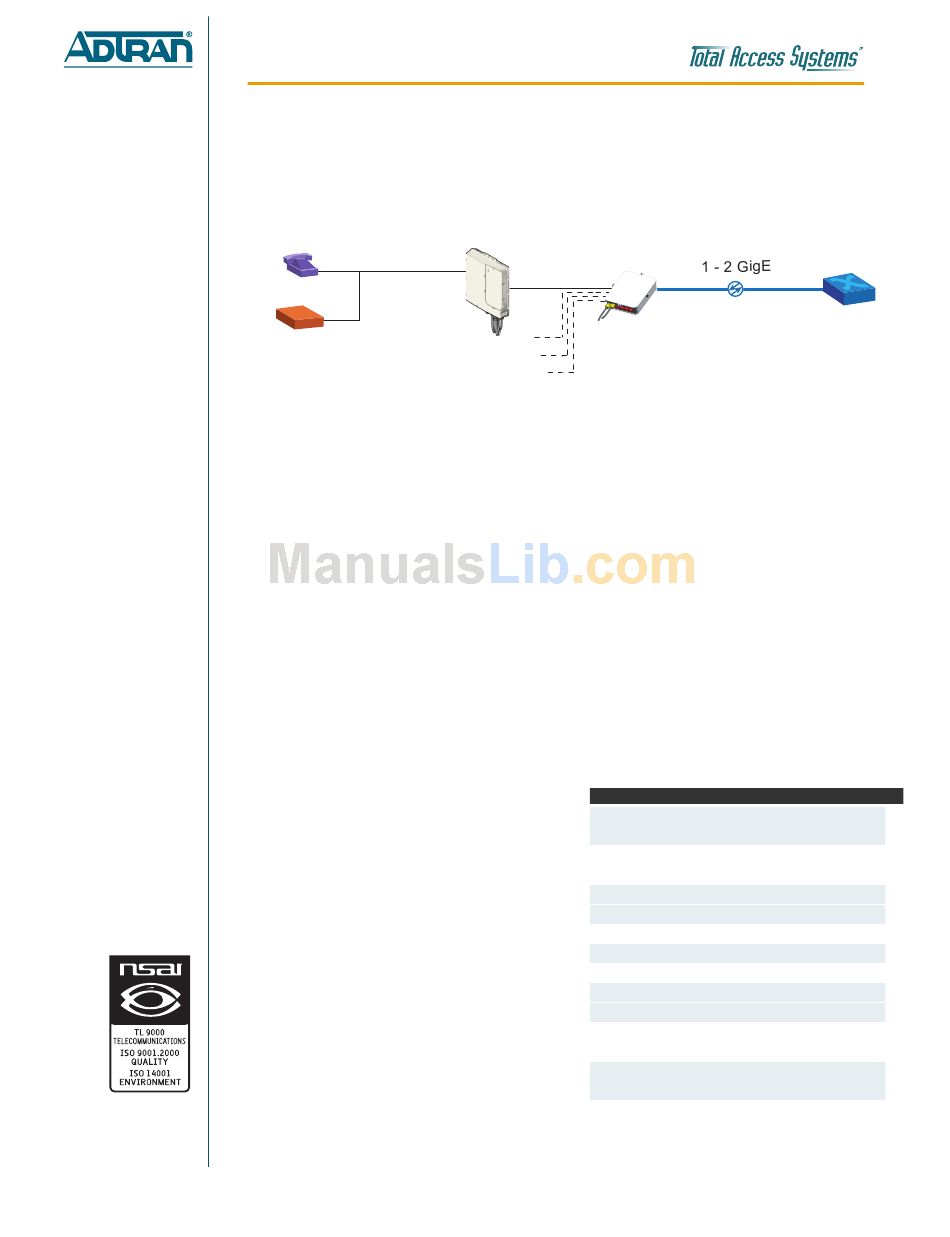

Total Access
1148 Total Access
1100F
Fiber or
Electrical Gigabit
Interface
*
1 to 4 DSLAMs
Delivering up
to 192 Ports
*
Optional
Media converter provides electrical
to optical conversion for fiber extension
from remote Total Access 1100F where
required
Protocol Specifications
I
I
I
I
I
I
I
I
I
I

Ordering Information

Equipment
Total Access 1100F, Local -48 VDC Powered,
with SFP Expansion Port
Total Access 1100F, Line Powered,
with SFP Expansion Port
Total Access 1100F, AC Powered,
with SFP Expansion Port
E/O Media Converter, Local -48 VDC Powered 1179761L1
E/O Media Converter, Line Powered
E/O Media Converter, AC Powered
Total Access 1100F, Local -48 VDC Powered,
with Electrical Expansion Port
Total Access 1100F, Line Powered,
with Electrical Expansion Port
Total Access 1100F, AC Powered, with
Electrical Expansion Port
IGMP Proxy v2 (RFC 3376) with throttling/filtering
IEEE 802.1Q VLANs
IEEE 802.1Q "p" bit priority queuing
RFC 2684 bridged encapsulation
Private VLAN support
MAC address filtering and limiting
PPPoE intermediate agent (WT-101)
Proxy ARP
VLAN ID remapping
DHCP proxy and option 82 (RFC 3046)
Core
Switch / Router
Part #
1179760L1
1179760L2
1179760L3
1179761L2
1179761L3
1179762L1
1179762L2
1179762L3
