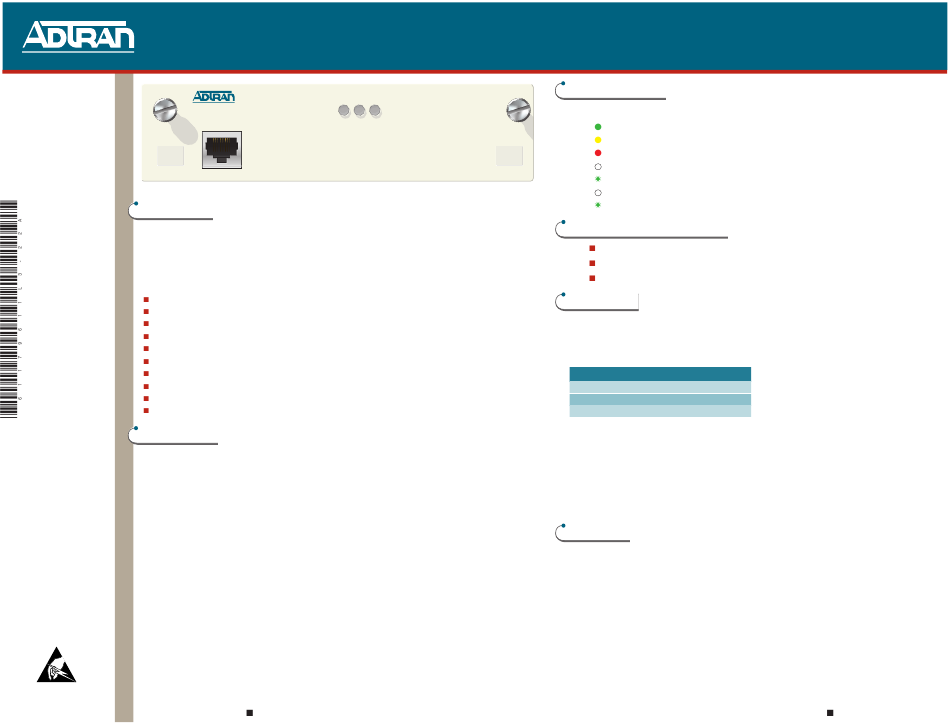

ADTRAN TOTAL ACCESS 1200 Quick Start Manual

TOTAL ACCESS 1200
IP NETWORK
MODULE
CLEI: VAA1GG0E_ _

DESCRIPTION

The IP Network Module provides an Ethernet uplink for the Total Access
can provide up to 24 ports of ADSL plus POTS toward customers. Its learning bridge
configuration can support up to 4096 bridge table entries. The IP Network Module acts
as a bridge and will "learn" the Ethernet MAC addresses connected to the user ports.
The following features are supported on the IP Network Module:
A single Ethernet 10/100 feed for both data and in-band management
One Virtual Circuit per port
Learning Bridge configuration
An alarm log of system level events
An RJ-45 type connector for the Ethernet connection
Operates over an extended temperature range –40°C to +70°C
Front Panel indication of Ethernet status
Front access to all connections
Provisioning and alarm monitoring via menus or remote access via Telnet
NEBS Level 3, GR-1089-CORE and UL 60950 compliant

CONNECTIONS

The IP Network Module plugs directly into the Total Access 1200 (19- or 23-inch) rack
mounted shelf. The Ethernet feed is connected to the front of the module through the
RJ-45 plug.

TURN-UP STEPS

To install the IP Network Module, perform the following steps:
1
After unpacking the IP Network Module, inspect it for damage. If damage is found, file a
claim with the carrier and then contact ADTRAN Customer Service.
2
ADTRAN recommends that all power be removed from the Total Access 1200 before
removing or replacing the IP Network Module.
3
Loosen screws on the previous module and remove it, if so equipped.
4
Insert new module in the slots on the left and right and slide it securely into place.
5
Tighten the two screws to secure the module in the chassis.
6
Insert the Ethernet cable with the RJ-45 plug in the jack on the front of the module.
7
Restore power to the Total Access 1200.
C A U T I O N C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
TOTAL ACCESS 1200 IP NETWORK MODULE
IP MODULE
1179611L3
ETH TD RD
ETHERNET
For a complete Installation and Maintenance Practice (P/N 61179611L3-6): 877-457-5007, Document 973. Please have your fax number ready.
FRONT PANEL LED
The front panel contains three LEDs that monitor status.
ETH Green
Yellow
Red
TD Off
Flashing Green
RD Off
Flashing Green

OPERATIONAL SPECIFICATIONS

1200 chassis. It
®
Operates from A or B –42 VDC to –56 VDC input voltage power feeds.
Operates over extended temperature range of (–40°C to +70°C)
Storage –40°C to +85°C. Relative humidity to 95 percent, noncondensing.

COMPLIANCE

This product is NRTL listed to the applicable UL standards. The IP Network
Module is intended for installation in a type "B" or "E" enclosure in a Restricted
Access Only area. The Total Access 1200 shelf Frame Ground terminal must be
connected to an earth ground.
Code
Power Code (PC)
Telecommunication Code (TC)
Installation Code (IC)
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by ADTRAN could void the user's
authority to operate this equipment.

WARRANTY

ADTRAN will replace or repair this product within the warranty period if it does not
meet its published specifications or fails while in service. Warranty information
can be found at www.adtran.com/warranty. U.S. and Canada customer Faxback:
877-457-5007, Document 414.
S
Connected 100BaseT
Connected, 10BaseT
Not connected
No Traffic
Transmit Traffic
No Traffic
Transmit Traffic
Input Output
C C
X –
A –
JOB
A
ID
61179611L3-22A
0307
