Product Specifications
DSX-1 INTERFACE
Interface Type: 4-wire (Tx pair and Rx pair)
Operating Mode: Full Duplex
Maximum Data Rate: 768 kbps (12 channels
x 64 kbps)
Line Equalization: 0-655 feet
Line Code: AMI, B8ZS
Framing: D4 ESF
Line Impedance: 100Ω
CHANNEL BANK FACILITY INTERFACE
Fully compatible with D4 channel bank
equipment
CLOCK SOURCES
Derived from channel bank
DIAGNOSTICS
Self Test
Near Loopback
Far Loopback
ENVIRONMENT
Operating (standard): –40° to +70°C
Storage: –40° to +85°C
Relative Humidity: Up to 95%
non-condensing
PHYSICAL CHARACTERISTICS
Dimensions: 4.4" H, 1.4" W, 10" D
Weight: 8 ounces, nominal
Plugs into AT&T D4, SLC-96, or ADTRAN
ACT 1241 customer premises bank
Power: 5 Volts: 100µ max
–48 Volts: 40 mA max
Total Power: 2.0 W max

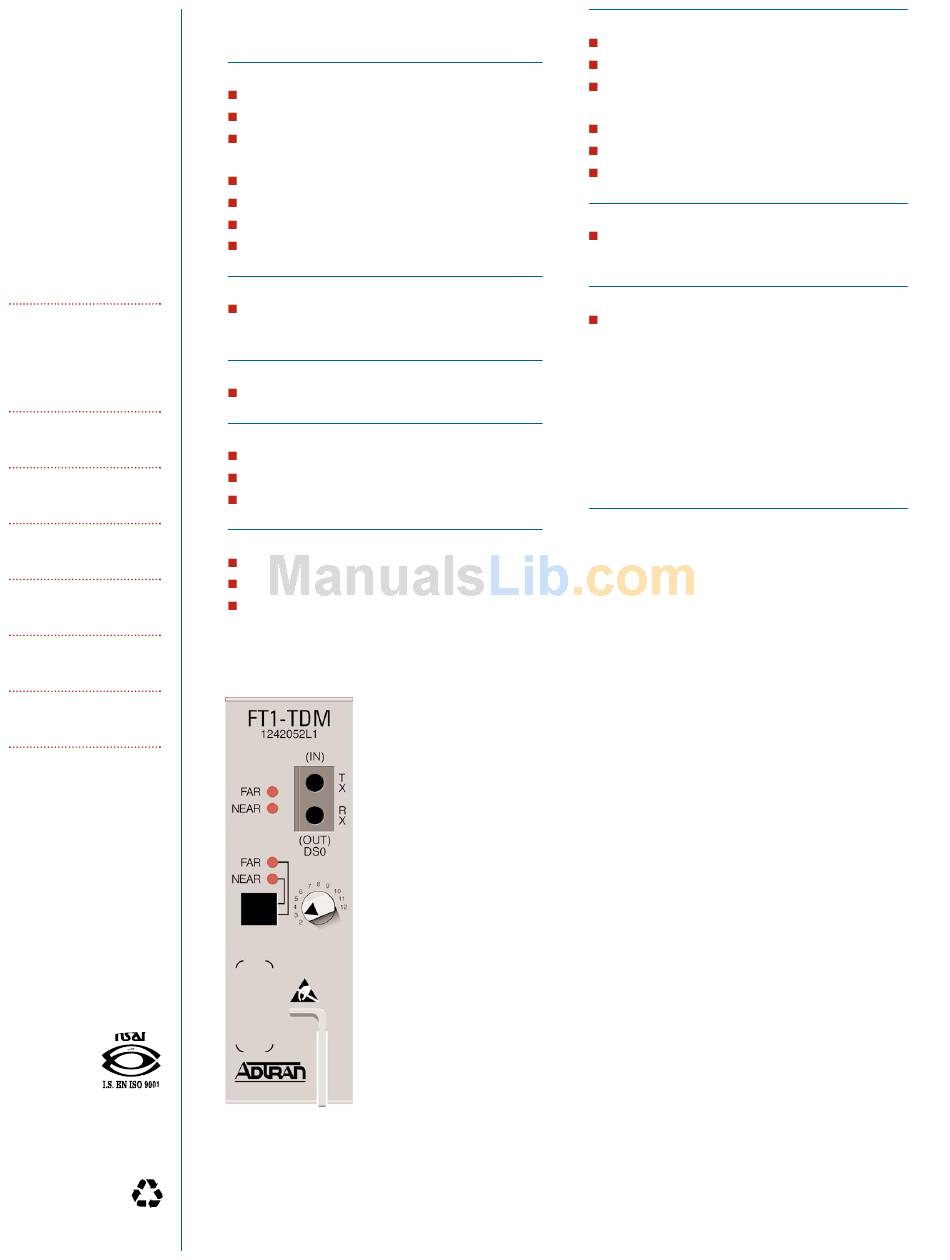

FACEPLATE INDICATORS
The FT1-TDM has four faceplate LEDs
which indicate operational status
FACEPLATE SWITCHES
Two DIP switches are located on the
FT1-TDM faceplate. Use these to activate
and deactivate far end loopback and near
end loopback. Use the twelve-position
rotary switch to select the number of
channels to be used.

Ordering Information

EQUIPMENT
FT1-TDM ...............................................1242052L1
Specifications subject to change without notice.
PART #
