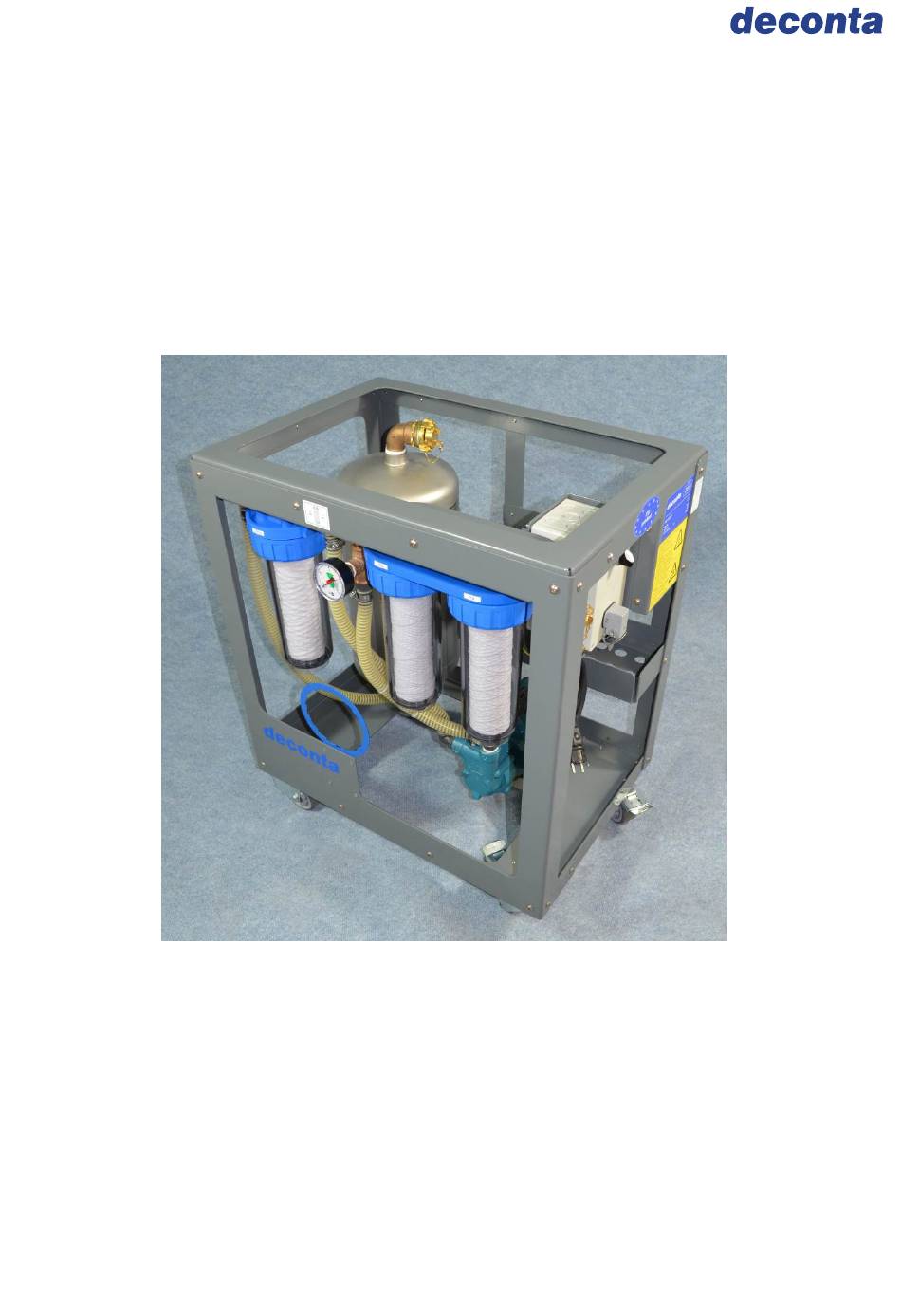

- Page 1 Instruction manual Waste water filtration unit AS 300 CG Manufacturer: deconta GmbH Im Geer 20, D - 46419 Isselburg Descriptioin / Type-No.: AS 300 CG Typ 539...
-
Page 2: Table Of Contents
Instruction manual AS 300 CG Table of contents on page Introduction Basic safety advice Intended use Operation Transport Delivery Transport Storage Scope of delivery Technical description Unit description Effectiveness of waste water filtration Technical data Connections, Dimensions, Weights Waste water pump... -
Page 3: Introduction
Mechanics with „kick“ Pleasing design The copyright of this instruction manual remains with deconta. This manual is intended for assembly, operation and maintenance personnel. It contains instructions and drafts of technical nature which may neither be distributed nor used in any unauthorised way for competitive purposes or passed on to others. -
Page 4: Basic Safety Advice
2.1 Intended use As an operator, you are obliged by deconta to follow the instruction manual and to use this engineered technology equipment only in accordance with the regulations and its suitability! In the event of non-observance, deconta assumes no liability. -
Page 5: Transport
Instruction manual AS 300 CG 3 Transport 3.1 Delivery If no other agreements have been made, the unit is packed safely and will be delivered ex work. Transport damages have to be documented immediately upon delivery by the carrier or another supplier. Please note the possible damages additionally on the way bill. -
Page 6: Scope Of Delivery
Instruction manual AS 300 CG 4 Scope of delivery If no other agreements have been made, the scope of delivery of the waste water filtration unit consists of: Waste water filtration unit 2x Geka-coupling leak proof 2x Hose clamp ... -
Page 7: Effectiveness Of Waste Water Filtration
Instruction manual AS 300 CG 5.2 Effectiveness of waste water filtration unit Test: Filter separation wound candle 1 Micrometer Diameter in Micrometer 10 11 12 13 14 15 16 17 Measuring Diameter point Effectiveness 0,77 84,3 0,97 90,4 1,22 93,5... -
Page 8: Technical Data
Instruction manual AS 300 CG 6 Technical data 6.1 Connections, Dimensions, Weights Power connection: 230V 50Hz Personal protection: FI-Switch 30mA Hose connections System Geka Dimensions (L x W x H): 655 x 462 x 775 mm Weight: ca.56 kg 6.2 Waste water pump... -
Page 9: Initial Operation
Instruction manual AS 300 CG 7 Initial operation Before the initial operation of the waste water pump or after a long period of stagnation, check that the shaft rotates freely when turned by hand. To this put a screwdriver in the notch of the shaft end on the fan side and move the shaft. -
Page 10: Initial Operation With Waste Water Hose And Proximity Switch
Instruction manual AS 300 CG Selector switch Switch on unit (Position „MAN“ at selector switch) and check, if filter housings are filling with water 7.1 Initial operation with waste water hose with proximity switch As an option, a waste water hose with proximity switch for electrical and automatic On/Off switch function is available. - Page 11 Instruction manual AS 300 CG Connection „IN“ Coarse pre filter Cap nut Connection „OUT“ Connect waste water hose with proximity switch at „IN“ of the coarse pre filter and then connect to place of use (only use spiral hose) ...
-
Page 12: Maintenance And Care
Instruction manual AS 300 CG 8 Maintenance and care 8.1 Daily care Check hoses for free flow Visual check of 220µ-Pre filter for dirt Control of fine filter via manometer 8.2 Filter change The Bag filter inserted in the coarse pre filter may be removed, cleaned and reused. - Page 13 Instruction manual AS 300 CG Filter change: Loosen cap nut with help of filter head screw Remove filter and dispose of it Insert new filter candles Pay attention to correct fit and cleanliness of the seal ring ...
-
Page 14: Circuit Diagram
Instruction manual AS 300 CG 9 Circuit diagram Seite 14... -
Page 15: Declaration Of Conformity
Instruction manual AS 300 CG 10 Declaration of conformity EU-Declaration of conformity deconta GmbH Im Geer 20 D-46419 Isselburg Product: Waste water filtration unit Typ: The design of the unit complies with EU- Machine directive 2006/42/EG the following directives: EU- Low voltage directive 2006/95/EG...
