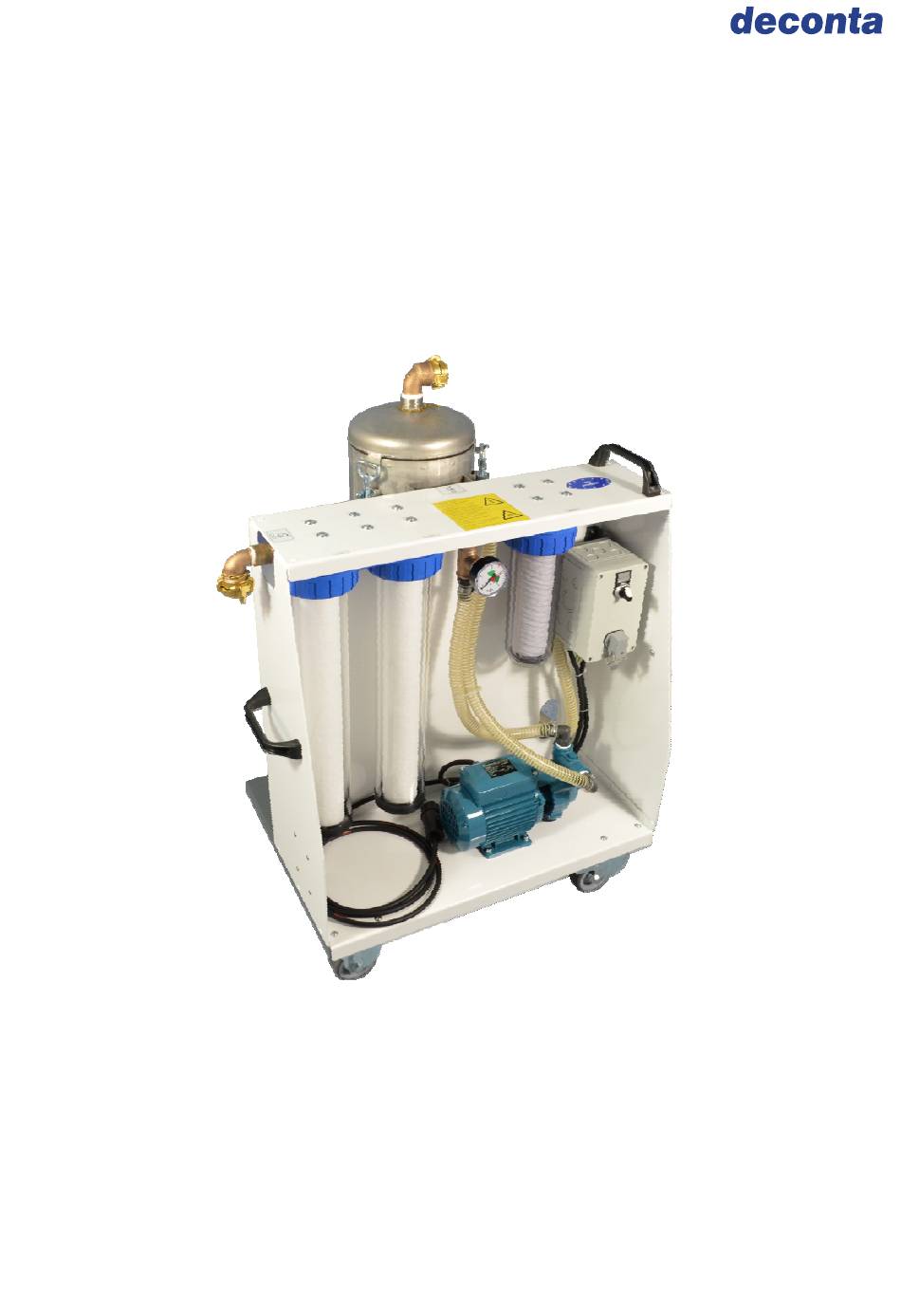

- Page 1 Guide book Waste water filtration unit AS 300 G Manufacturer: deconta GmbH Im Geer 20, D - 46419 Isselburg Description / Type-No.: AS 300 G Type 523...
-
Page 2: Table Of Contents
Guide book AS 300 G Table of contents on Page Introduction Basic safety advice Intended use Operation Transport Delivery Transport Storage Scope of delivery Technical description Unit description Effectiveness of waste water filtration Technical data Connections, Measurement, Weights Waste water pump... -
Page 3: Introduction
Technology with a difference Appealing design The copy right of this guide book remains the property of deconta. This guide book is destined for the field service and survey personnel. It contains instructions and drafts of technical nature which may not be used completely or in extracts for the purpose of competition and may not be distributed among others. -
Page 4: Basic Safety Advice
2.1 Intended use deconta has to engage you as the user to follow the guide book and to employ this engineered technology only in accordance with the regulations and not in a inappropriate way! In the event of non-observance, deconta assumes no liability. -
Page 5: Transport
Guide book AS 300 G 3 Transport 3.1 Delivery If no other agreements have been made, the unit is packed safely and will be delivere d ex work. Transport damages have to be documented immediately upon delivery by the carrier or another supplier. Please note the possible damages additionally on the way bill. -
Page 6: Scope Of Delivery
Guide book AS 300 G 4 Scope of delivery If no other agreements have been made, the scope of delivery of the waste water filtration unit contains the: Waste water filtration unit 2x Geka-coupling leak proof 2x Hose clamp ... -
Page 7: Effectiveness Of Waste Water Filtration
Guide book AS 300 G 5.2 Effectiveness of waste water filtration unit Test: Filter separation wound candle 1 Micrometer Diameter in Micrometer 10 11 12 13 14 15 16 17 Measuring Diameter point Effectiveness 0,77 84,3 0,97 90,4 1,22 93,5... -
Page 8: Technical Data
Guide book AS 300 G 6 Technische Daten 6.1 Connections, Measurements, Weights Power connection: 230V 50Hz Personal security: FI-Schalter 30mA Hose connection: System Geka Dimensions (L x W x H): 800 x 550 x 980 mm Weight: ca.43 kg 6.2 Waste water pump... -
Page 9: Initial Operation
Guide book AS 300 G 7 Initial operation Before the initial operation of the sewage pump or after a long standstill you have to control if you can turn the spindle by hand. For this purpose, insert a screw driver in the slot in the shaft end of the fan side and move the shaft. -
Page 10: Initial Operation With Waste Water Hose And Proximity Switch
Guide book AS 300 G Selector switch Switch on unit (Position „MAN“ at selector switch) and check, if filter housings are filling with water 7.1 Initial operation with waste water hose with proximity switch As an option, a waste water hose with proximity switch for electrical and automatic On/Off switch function is available. - Page 11 Guide book AS 300 G Connection „IN“ Coarse pre filter Connection „OUT“ Cap nut Connect waste water hose with proximity switch at „IN“ of the coarse pre filter and then connect to place of use (only use spiral hose) ...
-
Page 12: Maintenance And Care
Guide book AS 300 G 8 Wartung und Pflege 8.1 Daily maintenance Check hoses for free flow Visual check of 220µ-Pre filter for dirt Control of fine filter via manometer 8.2 Filter change The Bag filter inserted in the coarse pre filter may be removed, cleaned and reused. - Page 13 Guide book AS 300 G Filter change: Loosen cap nut with help of filter head wrench Remove filter and dispose off Insert new filter candles Pay attention to correct fit and cleanliness of the seal ring ...
-
Page 14: Circuit Diagram
Guide book AS 300 G 9 Circuit diagram Seite 14... -
Page 15: Declaration Of Conformity
Guide book AS 300 G 10 Declaration of conformity EU-Declaration of conformity deconta GmbH Im Geer 20 D-46419 Isselburg Produkt: Waste water filtration unit Type: 523 The design of the unit corresponds to the EU- Machine directive 2006/42/EG following regulations:...
