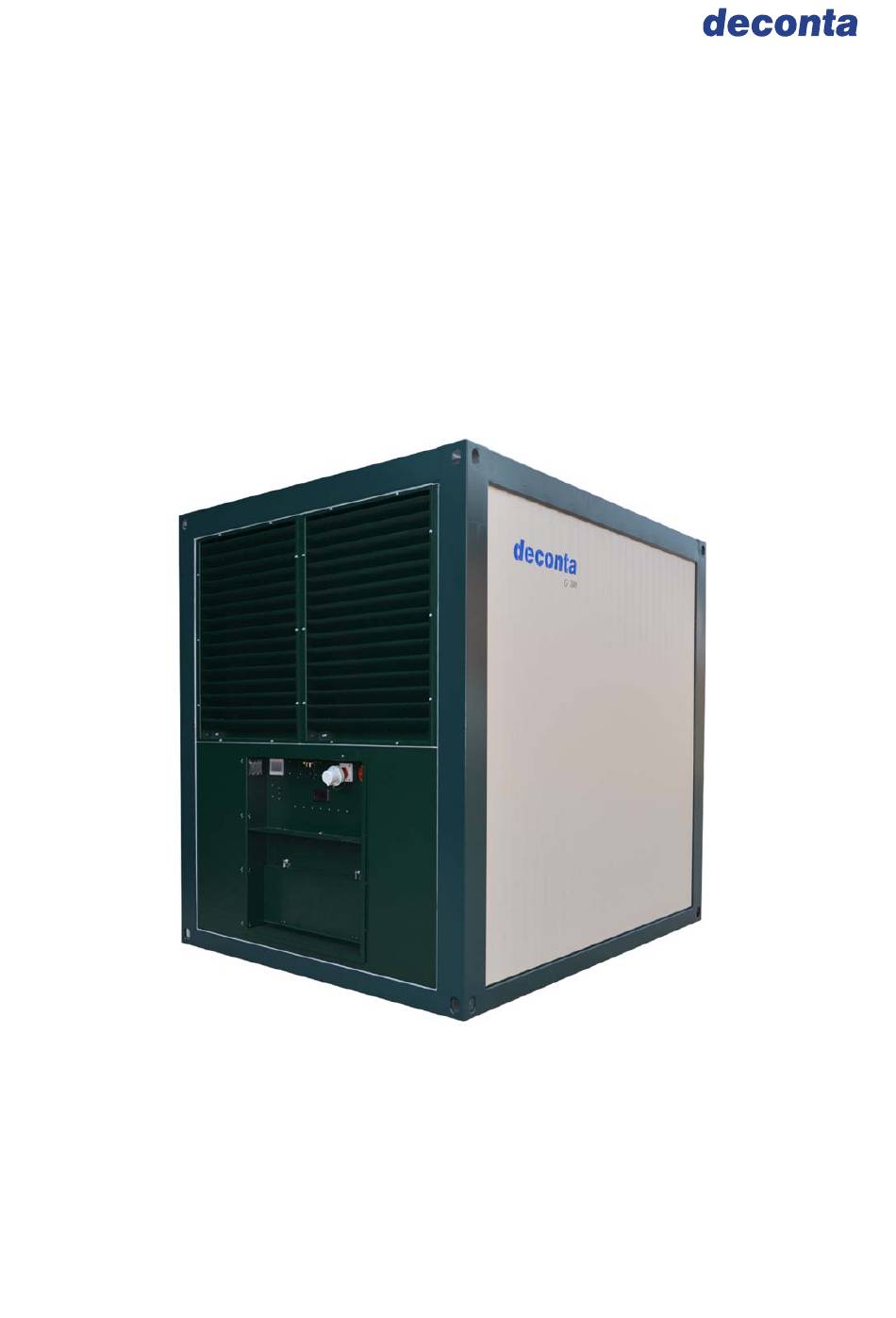

- Page 1 Original instruction manual Negative Pressure Units green dec G 700 Manufacturer: deconta GmbH Im Geer 20, 46419 Isselburg Designation / Type No.: Negative pressure unit green dec G 700 Typ 704 Serial No.: ....
-
Page 2: Table Of Contents
Instruction Manual Negative Pressure Unit green dec G 700 Table of contents 1. Basic safety advice ......................3 1.1. Intended use ............................ 4 1.2. Dangers ............................5 2. Transport and storage ....................... 6 2.1. -
Page 3: Basic Safety Advice
Instruction Manual Negative Pressure Unit green dec G 700 The copyright of this instruction manual remains with deconta. This manual is intended for assembly, operation and maintenance personnel. It contains instructions and drafts of technical nature which may neither be distributed nor used in any unauthorised way for competitive purposes or passed on to others. -
Page 4: Intended Use
Instruction Manual Negative Pressure Unit green dec G 700 1.1. Intended use The negative pressure unit is designed for filtering non-condensing, asbestos- contaminated room air, in the temperature range up to +45 ° C, with exhaust air discharged to atmosphere. -
Page 5: Dangers
Touching a defective mains cable may result in death or serious injury. Do not damage the mains cable (e.g. by vehicle overrun, tearing, squeezing). Regularly check the mains cable for damage. Have defective mains cable replaced before use by the deconta service or a qualified electrician CAUTION Damage due to unsuitable mains voltage. -
Page 6: Transport And Storage
Instruction Manual Negative Pressure Unit green dec G 700 2. Transport and storage 2.1. Transport A crane / forklift with a minimum lifting capacity of 2.2 tons is required for unloading. The unloading point should be firm and level. Transport damages must be documented immediately upon delivery by the supplier. -
Page 7: Technical Data
Instruction Manual Negative Pressure Unit green dec G 700 4. Technical data 4.1. Performance data Air performance incl. filters 70.000 m³/h Power connection 400 V, 50 Hz Power consumption 35 A Motor power 4 x 5,7 kW Filter system 3-stage... -
Page 8: Filter Description / Classification
Instruction Manual Negative Pressure Unit green dec G 700 4.3. Filter description / classification Integrated in the device is a 3-stage filter combination. 4.3.1. Pre-filter Quality class acc. to DIN 24185 / EN 779 G4 / EU4 Frame Cardboard frame, 47 mm wide... -
Page 9: Bag Filter
Instruction Manual Negative Pressure Unit green dec G 700 4.3.2. Bag filter Filter class acc. to DIN EN 779 Degree of separation (Am) 96 % Nominal volume flow 3400 m³/h Initial pressure drop 48 Pa Recommended final pressure drop 250 Pa 55 °C / 100 % RH (relative... -
Page 10: Technical Description
Instruction Manual Negative Pressure Unit green dec G 700 5. Technical description 5.1. Unit description Negative pressure unit as a container system for filtering asbestos-contaminated room air via a 3-stage filter unit. effective air output 70,000 m³ / h ... -
Page 11: Assembly Instruction
Instruction Manual Negative Pressure Unit green dec G 700 6. Assembly instruction The Negative Pressure Unit is shipped ready-to-use from the factory and is intended for immediate commissioning. In case of visible damage, do not operate the unit. Please contact deconta GmbH immediately. -
Page 12: Initial Operation
Instruction Manual Negative Pressure Unit green dec G 700 7. Initial operation 7.1. Preparations Set the measuring point in the contaminated area and connect it to the negative pressure connection with the PE hose 8 x 1 Determine the measuring point in the clean area (adjoining rooms) and connect to... -
Page 13: Control Sre Connect
Instruction Manual Negative Pressure Unit green dec G 700 7.2. Control SRE connect The connect functions are supported by default in the following countries: Albania, Algeria, Armenia, Aruba, Australia, Austria, Azerbaijan, Bangladesh, Belarus, Belgium, Bolivia, Bonaire, Bulgaria, Cambodia, China, Croatia, Curacao, Cyprus, Czech... -
Page 14: Create Your User Account
Instruction Manual Negative Pressure Unit green dec G 700 7.2.1. Create your user account Open the website www.deconta-connect.com in your internet browser. Press the tab „Sign Up“ and enter your e-mail address and desired password. The password must be at least 8 characters long and must meet 3 of the following 4 criteria: ... -
Page 15: Add The Device To Your User Account
Instruction Manual Negative Pressure Unit green dec G 700 7.2.2. Add the device to your user account Turn on your device. Press the button „Menu“. Press the button „Service“. Press the button „deconta connect“. The page with a QR code and below a key are displayed. - Page 16 Instruction Manual Negative Pressure Unit green dec G 700 Log in with your e-mail address and with your password on the connect page. Press the menu icon and then choose „Devices“. Press button „SCAN CODE (our recommendation) or alternatively press the button „SOFTWARE KEY“.
- Page 17 Instruction Manual Negative Pressure Unit green dec G 700 Scan the QR code, that appears on the device’s display. If the QR code is detected, the button „SUBMIT“ changes to green. In order to add the device, press this button.
-
Page 18: Manual Mode
Instruction Manual Negative Pressure Unit green dec G 700 The negative pressure unit can be operated via the touch display on the device or via the central control station (supplied by customer). The control can be used in 2 different operating modes. -
Page 19: Automatic Mode
Instruction Manual Negative Pressure Unit green dec G 700 7.2.4. Automatic mode To make the settings and turn on / off the automatic mode, press the "Menu" button. In the following menu press on the button "Automatic mode settings". The following parameters can be set: •... -
Page 20: Day / Night Setting
Instruction Manual Negative Pressure Unit green dec G 700 7.2.5. Day / Night setting By selecting time ranges, it is possible to set on which days and at what time the set value in automatic mode for the minimum negative pressure in night mode is activated. -
Page 21: Consumption
Instruction Manual Negative Pressure Unit green dec G 700 7.2.7. Consumption Left side: displays the actual performance of the device in % Middle top side: displays the actual consumption (actual current) in A Middle down side: displays the actual power in kW... -
Page 22: Service
Negative Pressure Unit green dec G 700 7.2.9. Service deconta connect Allocate the device to a connect account (see point 7.2.2.). Maintenance Settings in this menu can only be made by qualified deconta service partners. Software packages See point 7.2.10. Version 3 Page 22... - Page 23 Instruction Manual Negative Pressure Unit green dec G 700 System settings Setting the day of the week and time. These values are displayed on the device display and are required for day / night settings. Data sent to the connect user account are displayed there in the set time zone (default UTC ±...
-
Page 24: Software Packages
Instruction Manual Negative Pressure Unit green dec G 700 7.2.10. Software packages Display of the booked options and the expiration date of the licenses. Version 3 Page 24... -
Page 25: Device Information
Instruction Manual Negative Pressure Unit green dec G 700 7.2.11. Device information Display of device information. 7.2.12. Alarms Alarms are visually displayed via a flashing icon on the main screen. At the same time, an acoustic signal sounds. There are 3 different icons: green checkmark: there is no alarm message. - Page 26 Instruction Manual Negative Pressure Unit green dec G 700 A submenu with details about alarms can be accessed by pressing the button with the green checkmark, the yellow or red bell. Alarms are displayed with a red button. After the removal of the fault, the alarm must be acknowledged by pressing on the respective button.
-
Page 27: Turn Off The Device
Instruction Manual Negative Pressure Unit green dec G 700 Stop dust sensor / Start dust sensor: - Turn on / off the dust sensors. Please note: when the sensors are switched off, the particle concentration in the exhaust air is not monitored! 7.2.13. -
Page 28: Maintenance
Instruction Manual Negative Pressure Unit green dec G 700 8. Maintenance Maintenance work, including changing/removing filters, may only be carried out by authorised persons wearing suitable protective clothing. The appliance must be completely disconnected from the power supply during all repairs and maintenance work. -
Page 29: Filter Change
Instruction Manual Negative Pressure Unit green dec G 700 8.2. Filter change Attention: Contaminated filters must only be changed while observing all relevant safety precautions Filter change only when the unit is switched off Use only approved filters ... - Page 30 Instruction Manual Negative Pressure Unit green dec G 700 Change of bag filters: • Remove the pre-filters • Open the locks of the bag filters • Remove bag filters • Insert new bag filters, the bags should be vertical • Close the locks •...
- Page 31 Instruction Manual Negative Pressure Unit green dec G 700 Change of HEPA filter: • Dismantle the 3 filter cassettes for pre- and bag filters by loosening and removing the screws • Remove the clamping bars of HEPA filters • Remove and dispose HEPA filters •...
-
Page 32: Possible Disturbances And Their Elimination
Instruction Manual Negative Pressure Unit green dec G 700 9. Possible disturbances and their elimination Fault Possible cause Elimination Negative pressure Pre- / intermediate or Filter change as described in 8.2 too low HEPA filter contaminated Get the power source checked and... -
Page 33: Sound Level Measurements
Instruction Manual Negative Pressure Unit green dec G 700 10. Sound level measurements value in dB (A) Status: Outdoor area performance Version 3 Page 33... -
Page 34: Declaration Of Conformity
Instruction Manual Negative Pressure Unit green dec G 700 11. Declaration of Conformity EC Declaration of Conformity acc. to Machinery Directive 2006/42 / EC Annex II 1.A The manufacturer deconta GmbH Im Geer 20 46419 Isselburg hereby declares that the following product...
