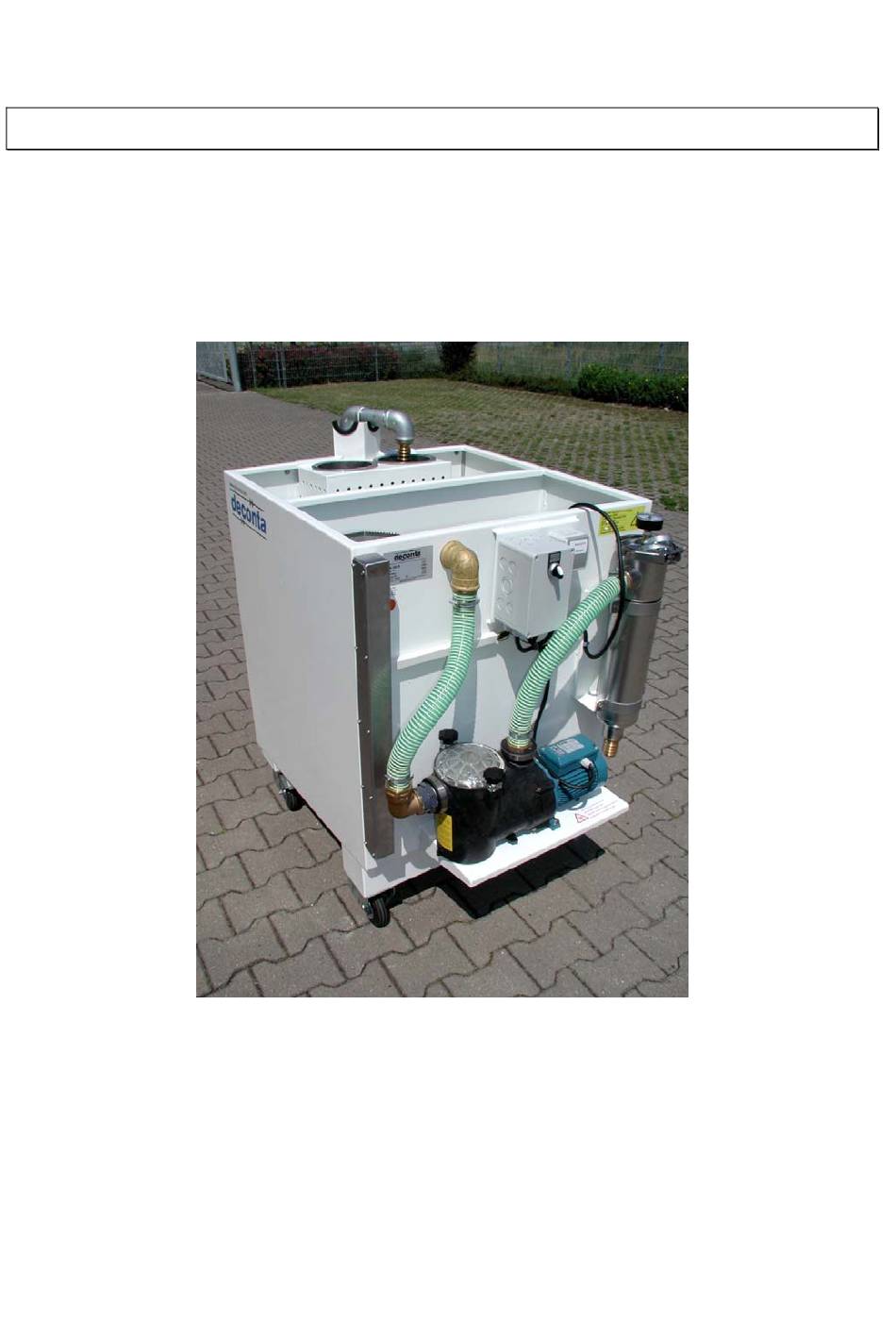

- Page 1 Instruction manual Waste water filtration unit AS 300 S Manufacturer: deconta GmbH Im Geer 20, D - 46419 Isselburg Description / Type-No.: Waste water filtration unit / AS 300 S / 328a Serial-No.: ..
-
Page 2: Table Of Contents
Instruction manual Waste water filtration unit AS 300 S Table of contents on page Introduction Basic safety advice Transport and storage Delivery Transport Storage Scope of delivery Technical description Technical data Initial operation Circuit diagram EU-Declaration of conformity Seite 2... -
Page 3: Introduction
We would like to point out that all warranty claims expire at non-compliance with this instruction manual. The copyright of this instruction manual remains with deconta. This manual is intended for assembly, operation and maintenance personnel. It contains instructions and drafts of technical nature which may neither be distributed nor used in any unauthorised way for competitive purposes or passed on to others. -
Page 4: Basic Safety Advice
Waste water filtration unit AS 300 S 2 Basic safety advice As an operator, you are obliged by deconta to follow the instruction manual and to use this engineered technology equipment only in accordance with the regulations and its suitability! In the event of non-observance, deconta assumes no liability. -
Page 5: Transport And Storage
3 Transport and storage 3.1 Delivery The Waste water filtration unit is delivered ex work deconta on a pallet wrapped in foil. Transport damages have to be documented immediately upon delivery by the carrier or another supplier. Please note the possible damages additionally on the way bill. -
Page 6: Scope Of Delivery
Without filter 5 Technical description The Waste water filtration unit AS 300 S is a 3-stage filtering unit, designed to clean heavily soiled and contaminated Waste water. The Waste water is lead via a bag filter 200µ in a settling tank (Volume approx. 400 Liter) and from there drained through a stainless steel housing with integrated 5µ... -
Page 7: Technical Data
Instruction manual Waste water filtration unit AS 300 S 6 Technical data 3-stage filtering unit with housing On 2 castor wheels and 2 fixed wheels Filter control Stainless steel bag filter housing, Connection 1 ½“ Sewage pump 100 l / min, self-priming, safe to run dry ... -
Page 8: Initial Operation
Instruction manual Waste water filtration unit AS 300 S 7 Initial operation Switch Manual/Auto Connection Dirty water Attention The pump may not be operated without water. Before the initial operation of the waste water pump or after a long period of stagnation, check that the shaft rotates freely when turned by hand. -
Page 9: Circuit Diagram
Instruction manual Waste water filtration unit AS 300 S 8 Circuit diagram Seite 9... -
Page 10: Eu-Declaration Of Conformity
Instruction manual Waste water filtration unit AS 300 S 9 EU-Declaration of conformity EU-Declaration of conformity deconta GmbH Im Geer 20 D-46419 Isselburg Product: Waste water filtration unit Type: 328a The design of the unit complies with EU- Machine directive 2006/42/EG...
