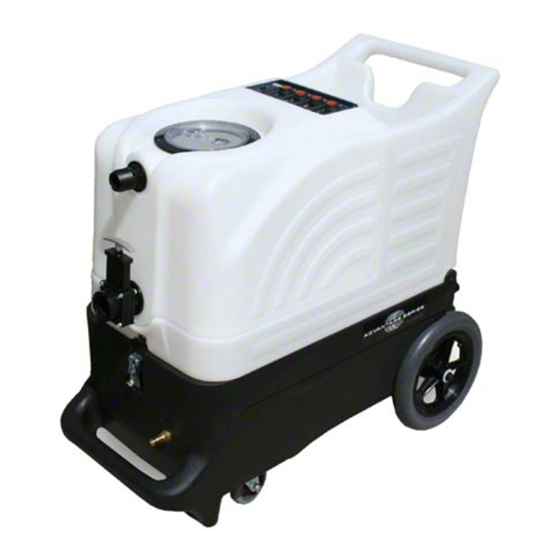

ADVANTAGE-100H
EXTRACTOR
240V
INFORMATION
&
OPERATING
INSTRUCTIONS
CAUTION: DO NOT OPERATE MACHINE UNTIL YOU HAVE READ
ALL SECTIONS OF THIS INSTRUCTION MANUAL
IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY
1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.
2. Connect the machine to a properly grounded outlet only.
3. Keep machine from rain and snow, extremes in temperatures, and store in a heated
location. Use the machine indoors. Do not use outdoors.
4. Use approved chemicals only. NO SOLVENTS.
5. Never use water above 54 °C/130 °F in the solution tank.
1
5/10 revised 11/11 Form No. 56041831

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADVANTAGE-100H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U.S. Products ADVANTAGE-100H

Summary of Contents for U.S. Products ADVANTAGE-100H

  • Page 1 ADVANTAGE-100H EXTRACTOR 240V INFORMATION & OPERATING INSTRUCTIONS CAUTION: DO NOT OPERATE MACHINE UNTIL YOU HAVE READ ALL SECTIONS OF THIS INSTRUCTION MANUAL IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY 1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.

  • Page 2: Important Safety Instructions

    • Use extra care when cleaning on stairs. • Connect to a properly grounded outlet only. • Liquid ejected at the spray nozzle could be dangerous as a result of its temperature, pressure, or chemical content. FORM NO. 56041831 - Advantage-100H...

  • Page 3: Cleaning Solutions

    Be sure to specify the machine model. Have your serial number handy. Serial Number: __________________ Model: MPE-100H-240 Purchase Date:_____________ Write the name and phone number of your distributor: _____________________________________ _____________________________________ (and be sure to register your warranty: go on-line to www.usproducts.com) FORM NO. 56041831 - Advantage-100H...

  • Page 4: Switch Plate

    The heat switch will turn the heater on and off, and it will illuminate when it is turned on. YOUR MACHINE Solution Tank Access Switches Recovery Tank Power Cords Vacuum Hose Connection Recovery Wheel Tank Drain Solution Output Castor FORM NO. 56041831 - Advantage-100H rrevised 11/11...

  • Page 5: Setup And Operation

    NOTE: The fl oat may not work if there is foam in the tank. Always use defoamer to prevent overfl ow. CAUTION: Always make sure the fl oat cage is clean and the ball can travel freely before turning on the machine. FORM NO. 56041831 - Advantage-100H...
  • Page 6 FORM NO. 56041831 - Advantage-100H revised 11/11...
  • Page 7 Hose barb/90° elbow Hose, 3/8” X 11-1/2” 919J Vac Hose, 1-1/2” X 15’ FP157 Pressure hose * = Optional, Not Included [ ] = Not Shown = Revised or new since last update revised 11/11 FORM NO. 56041831 - Advantage-100H...

  • Page 8: Troubleshooting

    Vacuum: One, 3-stage VAC Shutoff: Ball Float Pump: 7 bar/100 psi, demand diaphragm pump Water lift: 29.9 KPA Heat: 82º C, Maximum Heater: 2000 Watts Weight: 35.5 kg Dimensions: 45.7W x 96.5L x 87.6H (cm) FORM NO. 56041831 - Advantage-100H...
