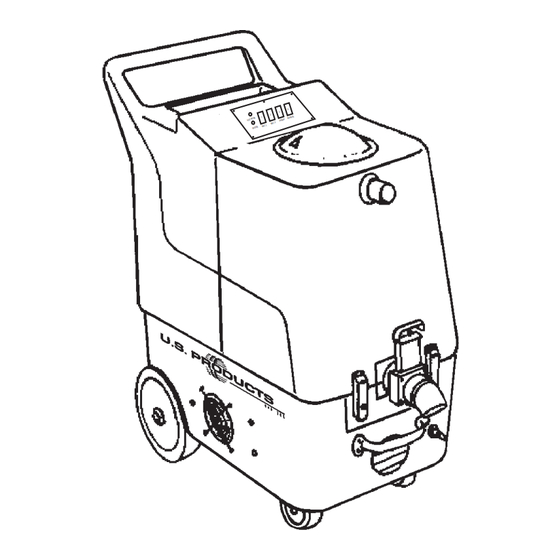

HHP-310
EXTRACTOR
120V
INFORMATION
&
OPERATING
INSTRUCTIONS
DO NOT OPERATE MACHINE UNTIL YOU HAVE READ
ALL SECTIONS OF THIS INSTRUCTIONS
IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY
1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.
2. Keep machine from rain and snow, extremes in temperatures, and store in a
heated location. Use the machine indoors. Do not use outdoors.
3. Do not let the pump run dry.
4. Use approved chemicals only. NO SOLVENTS.
5. Wear gloves or use rags when removing quick disconnects to prevent burns.
6. Never use water above 130º F/54º C in the solution tank.
6.4.2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HHP-310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U.S. Products HHP-310

Summary of Contents for U.S. Products HHP-310

  • Page 1 HHP-310 EXTRACTOR 120V INFORMATION & OPERATING INSTRUCTIONS DO NOT OPERATE MACHINE UNTIL YOU HAVE READ ALL SECTIONS OF THIS INSTRUCTIONS IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY 1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices other than normal residential housekeeping purposes. When using any electrical appliance, basic precautions should always be followed, including the following: NOTE: Read all instructions before using this machine.
  • Page 3 INSPECTION: Carefully unpack and inspect your HHP-310 for shipping damage. Each machine is tested and inspected before shipping. Any shipping damage incurred is the responsibility of the carrier. You should notify the carrier immediately if you notice damage to the box or to the machine or parts CLEANING SOLUTIONS: We recommend liquid cleaning chemicals, such as our Magic Fabric Cleaner.
  • Page 4 UPHOLSTERY LOCATOR PUMP VAC 1 BYPASS CARPET MODE VAC (1) & PUMP (2) SWITCHES: These switches are powered by cord #1. Switches are on when illuminated. CARPET/UPHOLSTERY SWITCH (3): This switch is also powered by cord #1. The carpet setting (down position) is high pressure (approximately 300 PSI).
  • Page 5 SET-UP: Fill the holding tank with clear water and the detergent of your choice. Mix well. Although this machine is designed to supply instant hot water, the addition of warm water (not above 130º F/54º C) to the holding tank would increase heater efficiency. Plug in cord #1 (vac and pump.) Attach the priming hose to the machine (see illustration).

  • Page 7: Parts List

    HHP-310 120V PARTS LIST ITEM # PART # DESCRIPTION ITEM #PART # DESCRIPTION Drain Gate (see Misc.)* Axle Bracket Screw, Button Head, 10-32 x 5/8” Bolt, 1/4” X 3/4” Latch Axle, 1/2 x 17-1/2” O-Ring, Small Louver, 3”, includes screws...

  • Page 8: Trouble Shooting

    TROUBLE SHOOTING: IF THIS OCCURS CHECK THIS NO SPRAY Solution tank is empty. Clogged spray tip. Pump not running or not primed. Valve on wand not operating. Check the brushes in the pump motor. Replace if necessary. No power to pump. PUMP DOSEN’T RUN Test the Motor Speed Control Circuit Board.
