4. Connect the Landscape Mode mount to the transducer according to your
Recommended or Optional configuration.
The ratchets are keyed to allow for Port or Starboard installation. The ribs on the
Landscape Mode mount ratchet should align with the marks on your transducer.

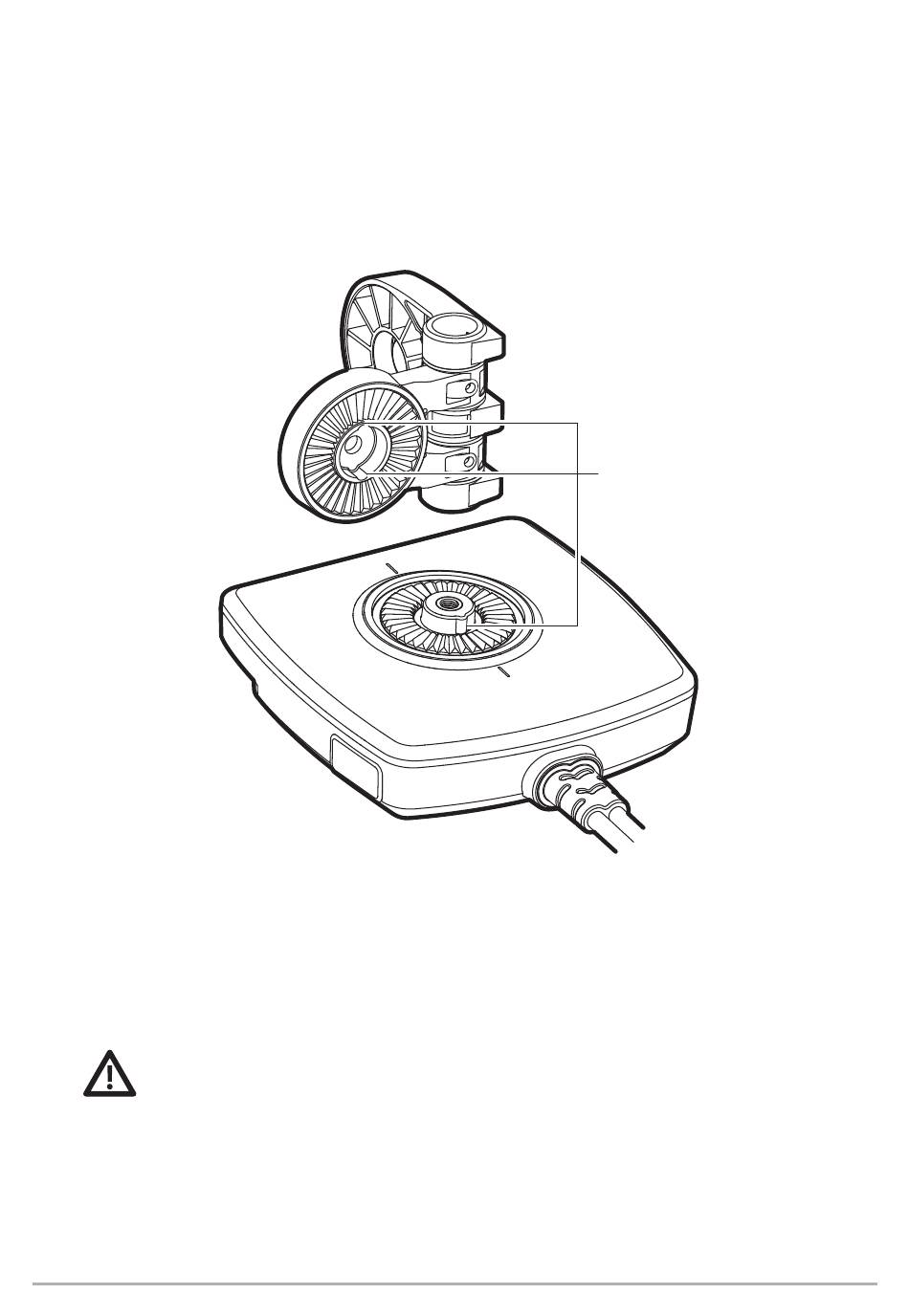

Connecting the Landscape Mode Mount to the Transducer
5. Secure the Landscape Mode mount to the transducer with one of the included
lock washers and 1/4-28 screws, using the provided hex bit. Hand tighten the
screw until the lock washer is fully compressed (see the illustration Compressing
the Lock Washer), and then tighten an additional 1/4 turn. Hand tighten only!
WARNING! The screw and lock washer MUST be fully tightened. Failure to
do so may result in the transducer detaching from the Landscape Mode mount
in the water.
Trolling Motor Mount
The ratchets
are keyed.
10
