ETHERNET SWITCH Installation Guide
Each Ethernet Switch allows you to share sonar and navigation data from up to five Ethernet items
(see Connecting the Ethernet Cables for limitations). Depending on the number of control heads
and accessories you are connecting, you may require multiple Ethernet Switches.
This accessory can only be used with Humminbird control heads that have Ethernet capability.
Contact Humminbird Technical Support through our Help Center at https://humminbird-help.
johnsonoutdoors.com/hc/en-us for more information.
Read the instructions in this guide completely to understand the installation guidelines before
starting the installation.
Supplies: In addition to the hardware supplied with your installation kit, you will need a powered
hand drill, a 9/64" drill bit, a Phillips screwdriver, a level, a pencil, and optional-purchase
Humminbird Ethernet cables.
Update your software: As you build your network, it is important to keep your control head and
accessory software up to date. Your Ethernet Switch is updated through your control head and
requires the following software versions:
APEX/XPLORE/SOLIX: 5.0 and newer
HELIX: 2.890 and newer
To download the latest software, go to our Web site at humminbird.johnsonoutdoors.com and
click Support > Software Updates. For more information about the software update process,
see your control head operations manual or your Ethernet Networking operations manual at
humminbird.johnsonoutdoors.com.
Technical Support: To purchase cables, or if you have any questions about the installation, visit
our Web site at humminbird.johnsonoutdoors.com or contact Humminbird Technical Support
through our Help Center at https://humminbird-help.johnsonoutdoors.com/hc/en-us.
Installation Overview
1
| Determine the Mounting Location
The Ethernet Switch is designed to mount on any flat, level surface of your boat. Prior to installation,
you must first determine where to mount the Ethernet Switch.

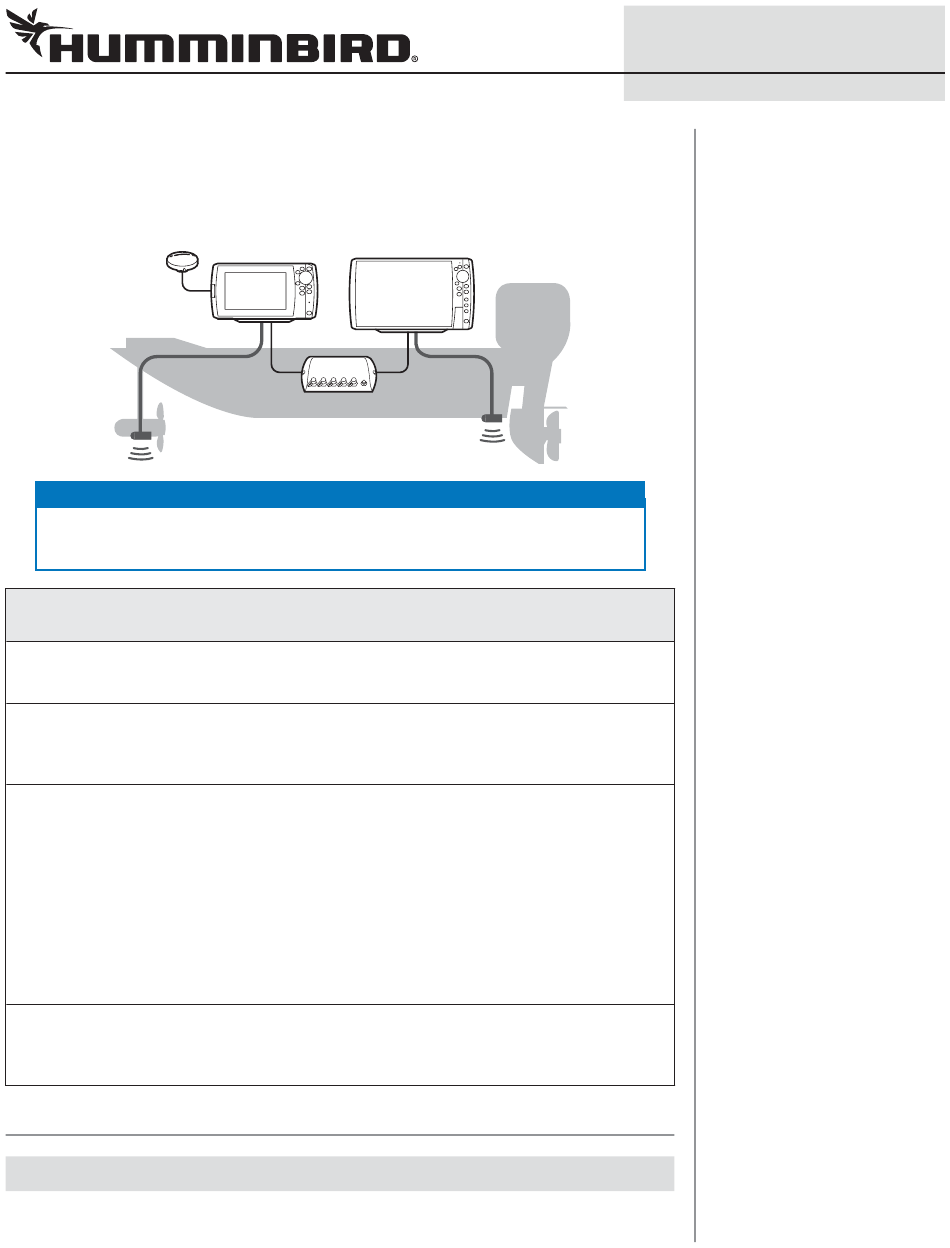

Example of an Ethernet Network Configuration
NOTE
INSTALLATION PREPARATION
1
531951-5_D
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Humminbird 5PGL
Summary of Contents for Humminbird 5PGL
- Page 1 Ethernet Switches. Example of an Ethernet Network Configuration NOTE This accessory can only be used with Humminbird control heads that have Ethernet capability. Contact Humminbird Technical Support through our Help Center at https://humminbird-help. johnsonoutdoors.com/hc/en-us for more information.
- Page 2 Networks that include at least one 5PXG switch can only support three Ethernet Switches and four Humminbird control heads. For a 5PGL switch and a 5PXG switch to be compatible on the same network, all control heads on the network must be compatible with the 5PGL.
- Page 3 Depending on your control head model, attach the black wire to ground (-) and the red wire to positive (+) 12 VDC power. Install a 1 amp fuse (not included) for the protection of the accessory. Humminbird is not responsible for over-voltage or over-current failures.
-
Page 4: Year Limited Warranty
This does not replaced free of charge at Humminbird’s option and returned to the include shipping time to and from our factory. Units received on customer freight prepaid. -
Page 5: Returning Your Unit For Service
Returning Your Unit for Service Contact Humminbird Contact Humminbird Technical Support through our Help Center at Before sending your unit in for repair, please contact Humminbird https://humminbird-help.johnsonoutdoors.com/hc/en-us or by Technical Support to obtain a Repair Authorization Number for your unit. - Page 6 Ethernet. Exemple de configuration d'un réseau Ethernet REMARQUE Cet accessoire peut seulement être utilisé avec les têtes de commande Humminbird dotées d’une fonctionnalité Ethernet. Contactez le support technique Humminbird via notre centre d’aide à l’adresse https://humminbird-help.johnsonoutdoors.com/hc/en-us pour plus d’informations.
-
Page 7: Présentation De L'installation
531951-5_D COMMUTATEUR ETHERNET Guide d'Installation Présentation de l'installation | Détermination de l’emplacement de montage Le commutateur Ethernet peut être installé sur n’importe quelle surface plane et horizontale de votre bateau. Avant de commencer l’installation, vous devez déterminer où vous installerez votre commutateur Ethernet. - Page 8 1 ampère (non inclus), et installez-le en série afin de protéger l’accessoire. Branchez le fil noir à la masse (-) et le fil rouge à l’alimentation (+). Humminbird ne garantit pas le produit contre les surtensions et les surintensités.
- Page 9 Cette garantie est en vigueur pour une durée d'un unités en production. an à partir de la date de l'achat initial. Les produits de Humminbird qui sont effectivement défectueux et couverts par cette garantie À la fin de la période de garantie initiale, une évaluation des frais seront réparés ou remplacés sans frais, à...
- Page 10 électriques et électroniques (DEEE) » concerne la plupart d'achat). des distributeurs, vendeurs et fabricants d’équipements électroniques ∆ Renvoyer le produit, fret payé à l'avance, à Humminbird. grand public dans l’Union européenne. La directive DEEE requiert que le Assurer l'expédition et demander une preuve de livraison.
