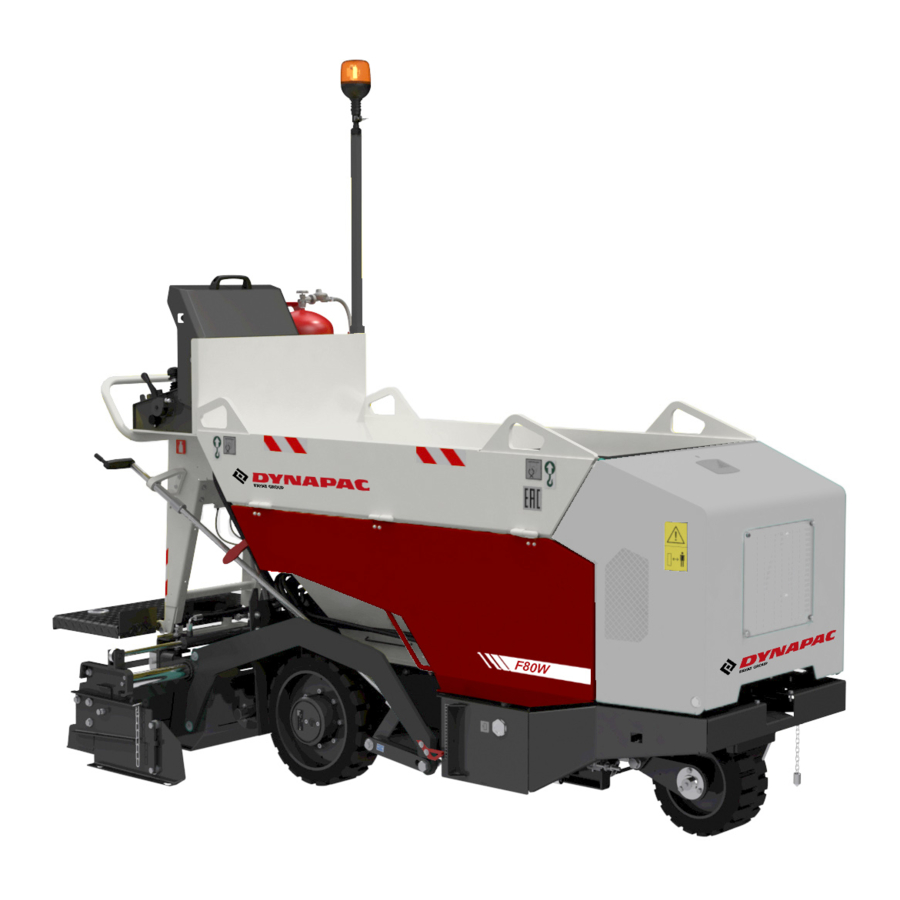

SERVICE BOOK Asphalt paver wheeled F80W Hatz 4812077888...
Page 3
F80W F80W Asphalt paver wheeled Asphalt paver wheeled Hatz Hatz Service book Service book Edition Edition 01/2020 10/2020 3000025 From Serial No. From Serial No. 4510232...
Introduction Service book Introduction Dear Client, Thank you for having selected the compaction technology from DYNAPAC Company. The same like any other construction machine also the compaction technology of DYNAPAC brand requires due maintenance. This Service book will provide you with basic information on execution of individual service operations the observance of which is the es- sential prerequisite to secure good condition and long life of your DYNAPAC compacting technology.
Foreword Foreword Information, specifications and recommended instructions for operation and maintenance included in this publication are basic and final information at the time of printing this publication. Printer’s errors, technical changes or changes of illustrations are reserved. All dimensions and weights are approximate and therefore non-binding. Dynapac reserves the right to make changes anytime and with no duty to notify machine user.
Contents Service book Introduction ..............................1 Foreword ................................. 2 Contents ................................3 Operator Training Form ..........................5 Registration Card ............................7 Service operations required ........................13 Tables of Rated Operations .......................... 21 Record of the service operations rated ....................... 24 Required operation after first 50 hours of Machine operation ..........................24 250 Mh ..............................................25 500 Mh ..............................................26...
Dynapac GmbH Operator Training Form Ammerlaender Str. 93 26203 Wardenburg – Germany Hereby I confirm, I was trained according to bellow showed contend on machine according to operating manual on: MACHINE TYPE CUSTOMER Company Name: _____________________________________________________ Address: MACHINE SERIAL NUMBER TRAINER NAME: Signature: TRAINING CONTENT:...
Dynapac GmbH Registration Card Registration Card Ammerlaender Str. 93 26203 Wardenburg – Germany CUSTOMER DATA Company Name _______________________________________________________________________Country _________________ Address ______________________________________________________________________________________________________ Postcode _______________________________ City ________________________________________________________________ Phone: _________________________________ E-mail: ______________________________________________________________ DEALER _____________________________________________________________________________ Country _________________ Address ________________________________ City _______________________________________ Postcode ________________ Date of Sale _____________________________ Machine Type _______________________________ PIN _____________________ Engine _________________________________ Model _____________________________________ Engine S/N ______________ Tachometer _____________________________ Accessories __________________________________________________________ ;...
Page 13
Dynapac GmbH Registration Card Ammerlaender Str. 93 26203 Wardenburg – Germany CUSTOMER DATA Company Name _______________________________________________________________________Country _________________ Address ______________________________________________________________________________________________________ Postcode _______________________________ City ________________________________________________________________ Phone: _________________________________ E-mail: ______________________________________________________________ DEALER _____________________________________________________________________________ Country _________________ Address ________________________________ City _______________________________________ Postcode ________________ Date of Sale _____________________________ Machine Type _______________________________ PIN _____________________ Engine _________________________________ Model _____________________________________ Engine S/N ______________ Tachometer _____________________________ Accessories __________________________________________________________ ;...
Page 15
Dynapac GmbH Ammann Czech Republic a.s. Registration Card Registration Card Ammerlaender Str. 93 Náchodská 145 26203 Wardenburg – Germany CZ-54901 Nové Město nad Metují CUSTOMER DATA Company Name _______________________________________________________________________Country _________________ Address ______________________________________________________________________________________________________ Postcode _______________________________ City ________________________________________________________________ Phone: _________________________________ E-mail: ______________________________________________________________ DEALER _____________________________________________________________________________ Country _________________ Address ________________________________ City _______________________________________ Postcode ________________ Date of Sale _____________________________ Machine Type _______________________________ PIN _____________________...
Service operations required Introduction This section of Service book does not include complete Machine maintenance manual. You will find detail information in the relevant sections of the Machine Operating manual, and this in the section called Maintenance Manual. Below are a few small advices for everyday maintenance of your Machine. The following advices will enable you to maintain your Machine in good condition and prolong its life cycle.
Page 18
Safety Standards at Lubrication and Maintenance 3.1.1 Safety precautions during machine Do not use petrol, diesel oil, thinners or other flammable liquids to clean parts of the machine. Use approved commercial sol- maintenance vents which are non-flammable and non-toxic. Lubrication, maintenance and adjustment process shall be per- formed: •...
Page 19
Service book 3.1.3 Ecological and hygienic principles Ecological principles When operating or maintaining the Machines the user shall be liable to follow the general principles of health and environ- ment protection according to the laws, ordinances and regula- tions in individual territories of the Machine use. The media of Machine’s individual systems, and some of its parts after having been discarded (dismantled, media Hygienic principles...
Page 20
Fills specification 3.2.1 Engine oil Viscosity diagram 2412 Engine oil has been specified as per its performance classifica- °F °C tion and viscosity classification. Performance classification according to API (AMERICAN PETROLEUM INSTITUTE) ACEA (ASSOTIATION DES CONSTRUCTEUERS EUROPPÉENS DE AUTOMOBILE) Viscosity classification To determine the SAE (Society of Automotive Engineers) viscos- ity class, the ambient temperature and type of operation where the machine is used are decisive.
Page 21
Service book 3.2.2 Fuel 3.2.4 Anti-adherent solution AMN411 Diesel oil is used as fuel for the engine: The anti-adhesive liquid is a non-adhesive additive. • EN 590 It serves for cleaning the hopper, conveyor, augers and parts of the machine which are in contact with the paved asphalt mate- •...
Page 22
Fills specification 3.2.5 Liquid gas 3.2.6 Lubricating grease 0787 The machine is equipped with a gas heating system that uses To lubricate the machine you must use a plastic grease contain- liquid gas as fuel. ing lithium according to: • Propane-butane (LPG) ISO 6743/9 CCEB 2 DIN 51 502 KP2K-30 Propane-butane (LPG) is an extremely flammable substance...
Page 23
Lubrication chart Service book Filling quantity Part Fluid type Brand l (gal US) Engine Engine oil according to Chapter 3.2.1. 1.8 l (0.48 gal US) 2412 Fuel tank Fuel according to Chapter 3.2.2. 5 l (1.3 gal US) Hydraulic system Hydraulic oil according to Chapter 3.2.3.
Page 24
Lubrication and service plan LUBRICATION AND SERVICE PLAN INSPECTION LUBRICATION REPLACEMENT 1000 SAE 15W-40 API CK-4 / CJ-4 Engine oil: ISO VG 46 ISO 6743/HV Hydraulic oil: Lubricating grease: ISO 6743/9 CCEB 2 Specification according to the country Anti-adherent solution: of machine operation D452054 F80W...
Tables of Rated Operations Service book The Maintenance Plan for DYNAPAC Compaction Technology is given in the following Tables and unwinds from the number of moto- hours driven. As soon as you reach the given number of moto-hours covered it will be necessary to carry out the required maintenance of your Machine.
Page 26
Tables of Rated Operations Every 10 hours at the beginning of work (daily) 3.6.1 Fuel level check 3.6.2 Engine oil level check 3.6.3 Hydraulic tank oil level check 3.6.4 Driver's stand cleaning 3.6.5 Cleaning the hopper, outlets and conveyor 3.6.6 Cleaning the augers 3.6.7 Test of burner ignition, flame position adjustment and spark plug maintenance 3.6.8...
Page 27
Service book Every 500 hours of operation (every 6 months) 3.6.23 Replacement of fuel filters 3.6.24 Air filter replacement 3.6.25 Front and rear wheel condition check After 500 hours of operation 3.6.27 Hydraulic oil and hydraulic oil filter replacement** Every 1000 hours (yearly) 3.6.26 Engine oil filter cleaning 3.6.27...
Record of the service operations rated Record of the service operations rated Required operation after first 50 hours of Machine operation Date: __________________________ Mh reading: ______________________ Indicates service operations made Engine oil replacement Note: __________________________________________________________________________________________________________ __________________________________________________________________________________________________________ __________________________________________________________________________________________________________ __________________________________________________________________________________________________________ __________________________________________________________________________________________________________ __________________________________________________________________________________________________________ __________________________________________________________________________________________________________ __________________________________________________________________________________________________________...
Record of the service operations rated 1000 Mh Date: __________________________ Mh reading: ______________________ Indicates service operations made Engine oil replacement Replacement of fuel filters Air filter replacement Engine air intake check Hydraulic oil cooler cleaning Front and rear wheel condition check ...
Record of the service operations rated 2000 Mh Date: __________________________ Mh reading: ______________________ Indicates service operations made Engine oil replacement Replacement of fuel filters Air filter replacement Engine air intake check Hydraulic oil cooler cleaning Front and rear wheel condition check ...
Record of the service operations rated 3000 Mh Date: __________________________ Mh reading: ______________________ Indicates service operations made Engine oil replacement Replacement of fuel filters Air filter replacement Engine air intake check Hydraulic oil cooler cleaning Front and rear wheel condition check ...
Record of the service operations rated 4000 Mh Date: __________________________ Mh reading: ______________________ Indicates service operations made Engine oil replacement Replacement of fuel filters Air filter replacement Engine air intake check Hydraulic oil cooler cleaning Front and rear wheel condition check ...
Record of the service operations rated 5000 Mh Date: __________________________ Mh reading: ______________________ Indicates service operations made Engine oil replacement Replacement of fuel filters Air filter replacement Engine air intake check Hydraulic oil cooler cleaning Front and rear wheel condition check ...
Dynapac GmbH Notice of Change of Owner Notice of Change of Owner Ammerlaender Str. 93 26203 Wardenburg – Germany Notice of Change of Owner In the event of the change of the owner of the machine, fill in this form and send it to the seller of the compaction equipment DYNAPAC to address mentioned in the bottom.
Page 71
Dynapac GmbH Notice of Change of Owner Ammerlaender Str. 93 26203 Wardenburg – Germany Notice of Change of Owner In the event of the change of the owner of the machine, fill in this form and send it to the seller of the compaction equipment DYNAPAC to address mentioned in the bottom.
Page 73
Dynapac GmbH Notice of Change of Owner Ammerlaender Str. 93 26203 Wardenburg – Germany Notice of Change of Owner In the event of the change of the owner of the machine, fill in this form and send it to the seller of the compaction equipment DYNAPAC to address mentioned in the bottom.
