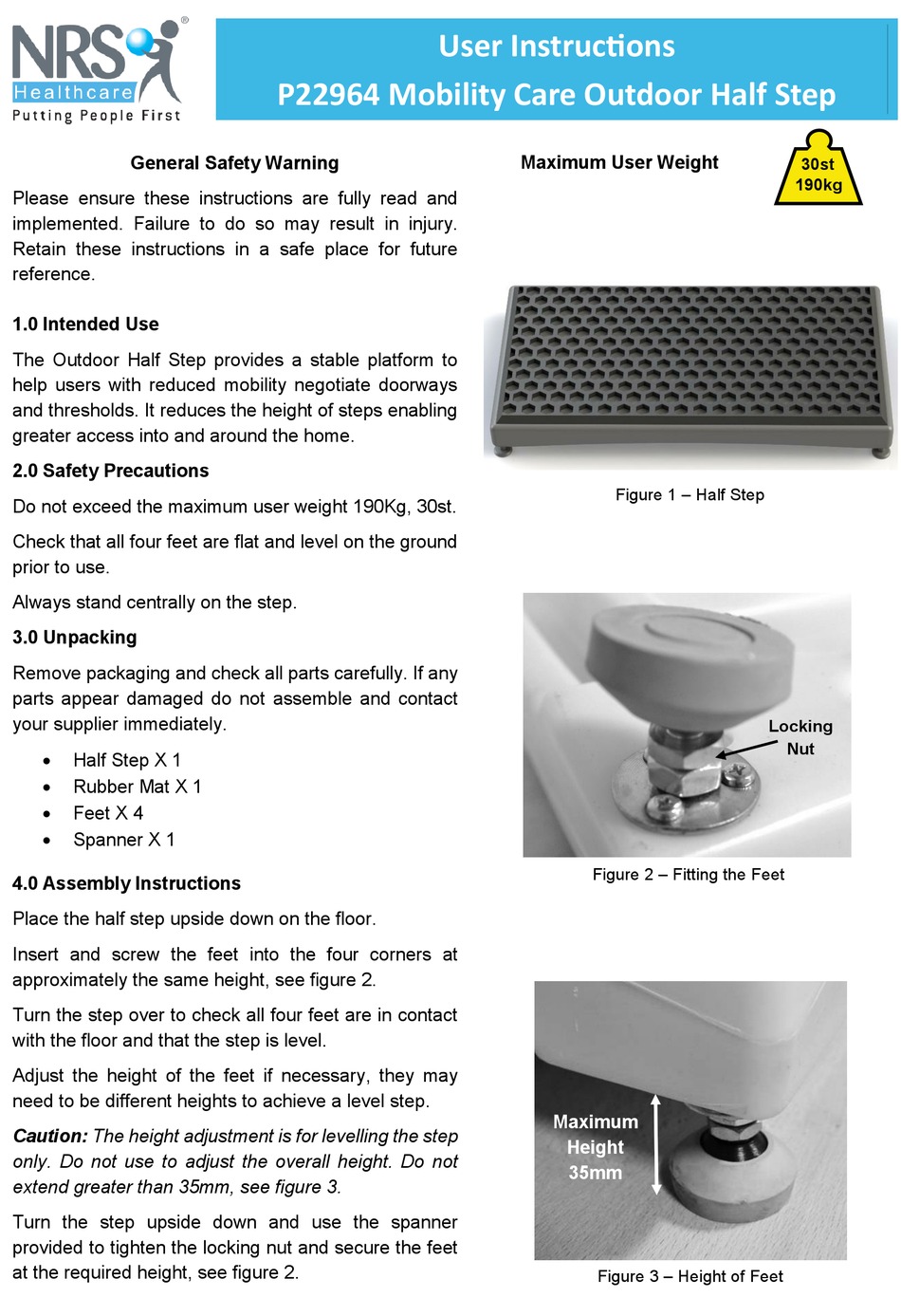

NRS Healthcare P22964 User Instructions

General Safety Warning
Please ensure these instructions are fully read and
implemented. Failure to do so may result in injury.
Retain these instructions in a safe place for future
reference.
1.0 Intended Use
The Outdoor Half Step provides a stable platform to
help users with reduced mobility negotiate doorways
and thresholds. It reduces the height of steps enabling
greater access into and around the home.
2.0 Safety Precautions
Do not exceed the maximum user weight 190Kg, 30st.
Check that all four feet are flat and level on the ground
prior to use.
Always stand centrally on the step.
3.0 Unpacking
Remove packaging and check all parts carefully. If any
parts appear damaged do not assemble and contact
your supplier immediately.

Half Step X 1

Rubber Mat X 1

Feet X 4

Spanner X 1
4.0 Assembly Instructions
Place the half step upside down on the floor.
Insert and screw the feet into the four corners at
approximately the same height, see figure 2.
Turn the step over to check all four feet are in contact
with the floor and that the step is level.
Adjust the height of the feet if necessary, they may
need to be different heights to achieve a level step.
Caution: The height adjustment is for levelling the step
only. Do not use to adjust the overall height. Do not
extend greater than 35mm, see figure 3.
Turn the step upside down and use the spanner
provided to tighten the locking nut and secure the feet
at the required height, see figure 2.
User Instructions
P22964 Mobility Care Outdoor Half Step
Maximum User Weight

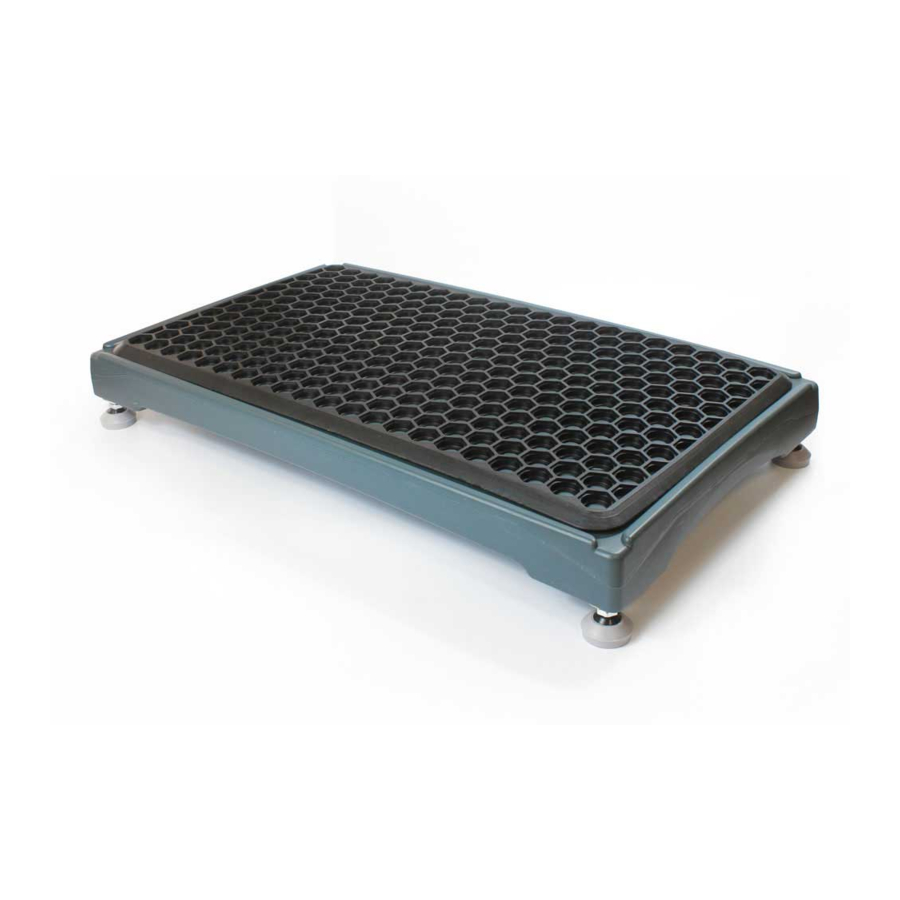

Figure 1 – Half Step
Figure 2 – Fitting the Feet
Maximum
Height
35mm
Figure 3 – Height of Feet
30st
190kg
Locking
Nut
