NRS Healthcare P23117 User Instructions

P23117
GENERAL SAFETY WARNING
Please make sure that you read and follow these
instructions carefully. Failure to do so can result
in injury. Keep these instructions in a safe place
for future reference.
1.0 INTENDED USE
The Duo Walking Trolley is intended to be used as a lightweight household trolley, for the transfer of items
around the home, for users with reduced mobility. The product is height adjustable and has been designed
to allow a natural walking gait. The upper and lower trays will each take a load of up to 5Kg (11lbs).

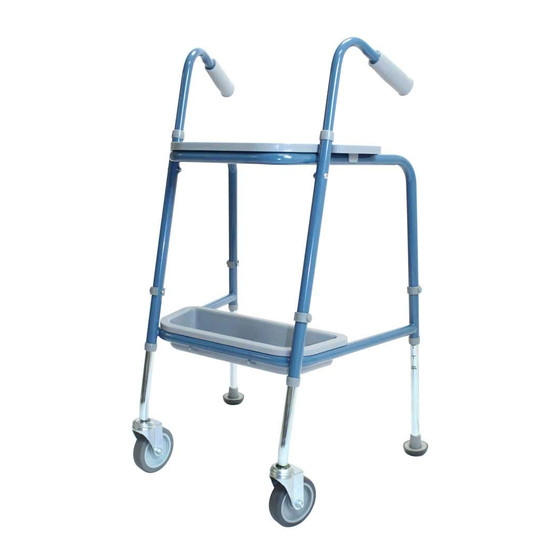

Figure 1: Duo Walking Trolley
2.0 SAFETY
1. Do not use the trolley to transfer to or from a
seated position.
2. The maximum load weight for the trolley trays
must not be greater than 5kg (11lbs).
3. We strongly recommend using a non-slip mat
and lidded drinks container for transporting food
and drink on the trolley. Refer to Section 11.0 for
recommended products.
4. Do not use the trolley if you see or suspect a
fault or if any part of the product is damaged.
5. Make sure that all of the trolley legs are at the
same height
USER INSTRUCTIONS
DUO WALKING TROLLEY
Turquoise Blue P23129
MAXIMUM USER WEIGHT
1
4
7
Figure 2: Contents/Parts
3.0 UNPACKING
Refer to Figure 2. Remove the packaging and check
all parts carefully. Contact your supplier immediately
if parts are missing or damaged and do not try and
assemble.
Contents:
1. Handles x 2
2. Top Tray x 1
3. Rear Legs (Slider Feet) x 2
4. Frame x 1
5. Bottom Tray x 1
6. Front Legs (Wheeled) x 2
7. Handle Screws x 2
8. E-Clip Fasteners x 4
9. Allen Key x 1
1
Pebble Grey
20st
127kg
2
5
8
9
3
6
