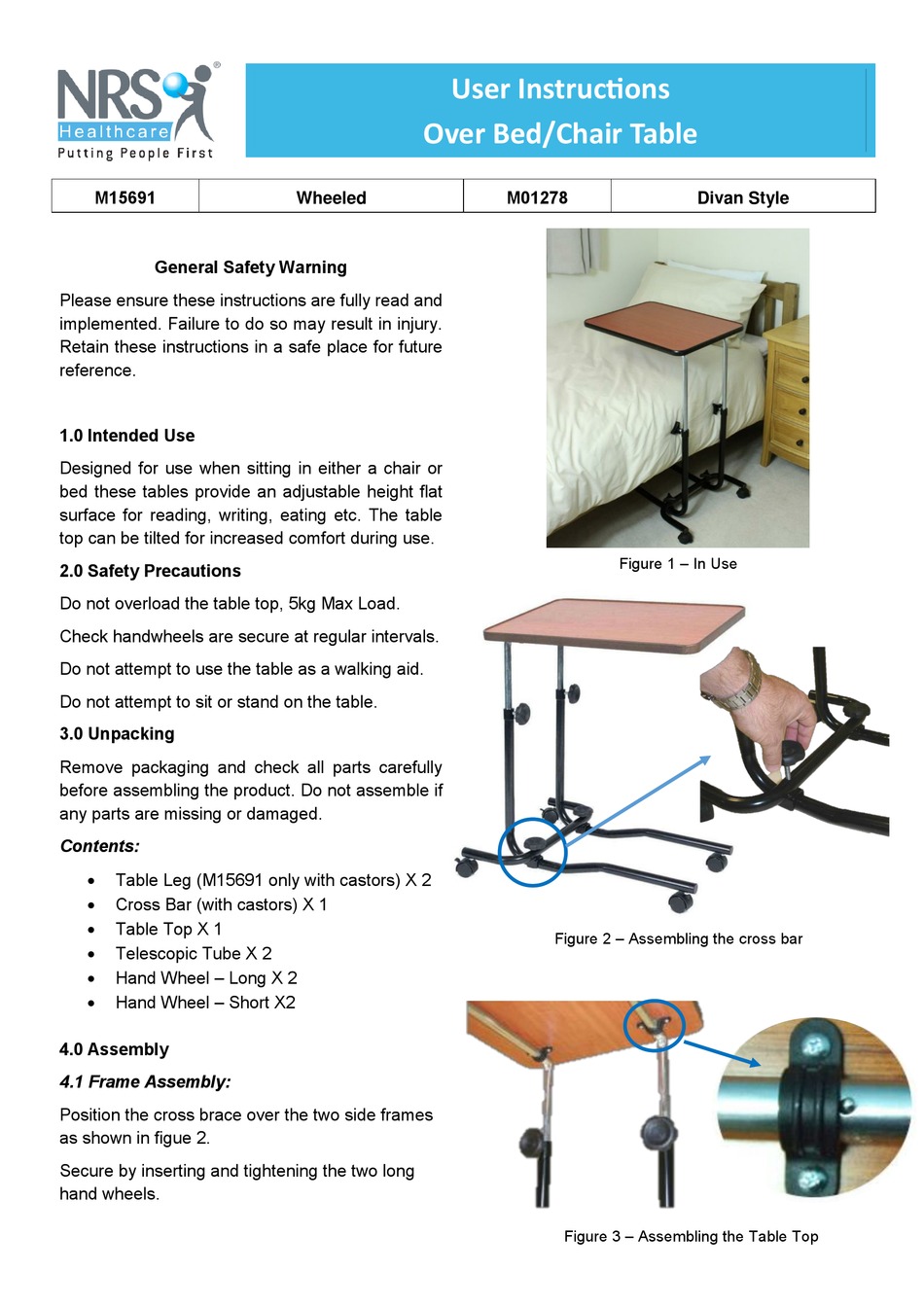

NRS Healthcare M15691 User Instructions

M15691
General Safety Warning
Please ensure these instructions are fully read and
implemented. Failure to do so may result in injury.
Retain these instructions in a safe place for future
reference.
1.0 Intended Use
Designed for use when sitting in either a chair or
bed these tables provide an adjustable height flat
surface for reading, writing, eating etc. The table
top can be tilted for increased comfort during use.
2.0 Safety Precautions
Do not overload the table top, 5kg Max Load.
Check handwheels are secure at regular intervals.
Do not attempt to use the table as a walking aid.
Do not attempt to sit or stand on the table.
3.0 Unpacking
Remove packaging and check all parts carefully
before assembling the product. Do not assemble if
any parts are missing or damaged.
Contents:

Table Leg (M15691 only with castors) X 2

Cross Bar (with castors) X 1

Table Top X 1

Telescopic Tube X 2

Hand Wheel – Long X 2

Hand Wheel – Short X2
4.0 Assembly
4.1 Frame Assembly:
Position the cross brace over the two side frames
as shown in figue 2.
Secure by inserting and tightening the two long
hand wheels.
User Instructions

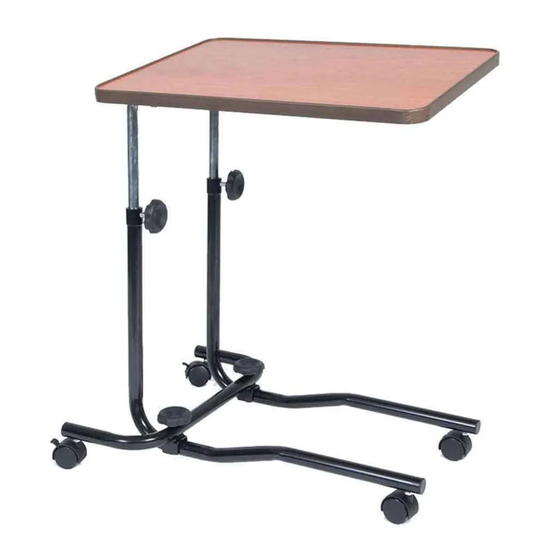

Over Bed/Chair Table
Wheeled
M01278
Figure 1 – In Use
Figure 2 – Assembling the cross bar
Figure 3 – Assembling the Table Top
Divan Style
