NRS Healthcare N85146 User Instructions

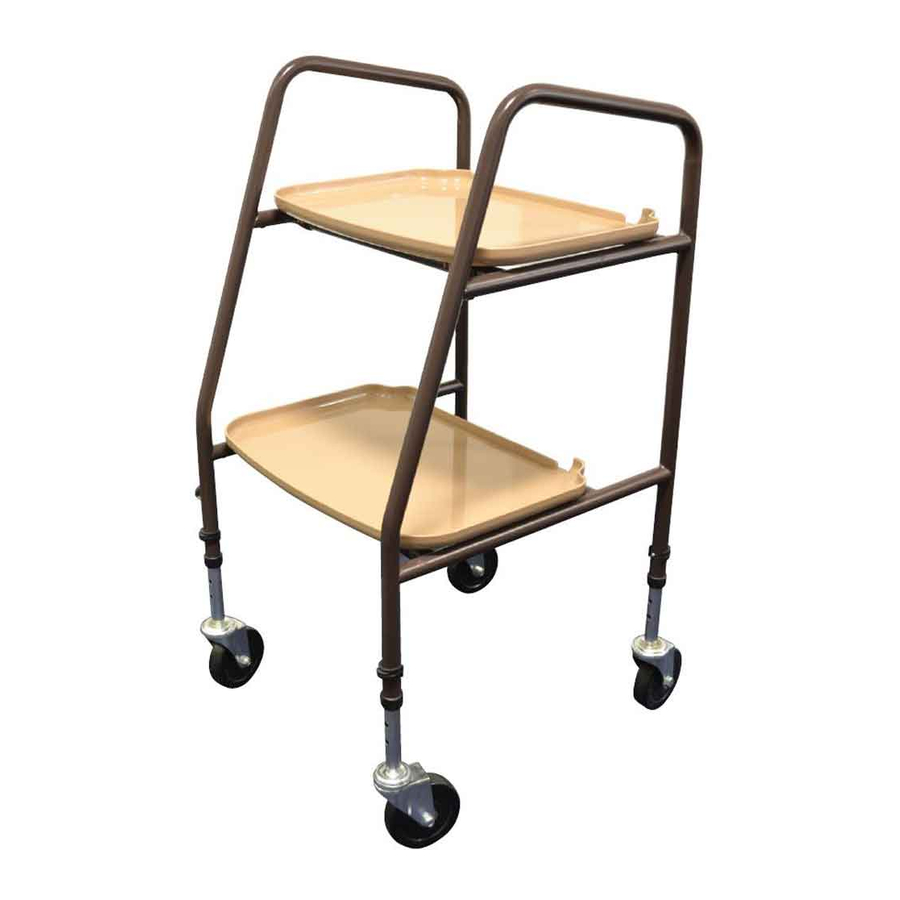

N85146 Home Helper Trolley - Flat Pack
General Safety Warning
Please make sure that you read and follow
these instructions carefully. Keep these
instructions in a safe place for future reference.
1.

INTENDED USE

The Home Helper Trolley is designed to enable users to safely transfer items and meals around the home;
the lower tray is set forward on the frame to allow users to walk naturally when pushing.
2.

SAFETY

WARNING this trolley is not designed to be sat upon.
WARNING although this item is used when walking,
IT SHOULD NOT BE USED AS A WALKING AID.
3.

UNPACKING

Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
USER INSTRUCTIONS
HOME HELPER TROLLEY - FLAT PACK
3.1 Contents:
1. Frame Side Right x 1
2. Frame Side Left x 1
3. Tray x 2
4. Cross Tube Rear x 2
5. Cross Tube Front x 2
6. E-Clip x 4
7. Castor Assembly x 4
4.

ASSEMBLY/INSTALLATION

Note this product does not require tools for assembly
4.1

Fitting Cross Tubes:

There are four tubes, two rear tubes (B) and two
front tubes (A). The front tubes (with welded tabs)
must be fitted in the correct orientation, with the tabs
facing forward and upwards
To engage in the frame, press in the spring button
and push in the tube until the spring button "clicks"
into position and the button is visible through the
hole in the frame.
1
