NRS Healthcare P64090 User Instructions

P64090
P64107

General Safety Warning

Please make sure that you read and follow these
instructions carefully. Failure to do so can result
in injury. Keep these instructions in a safe place
for future reference.

INTENDED USE

The Transfer Aid Safety Strap is designed to provide support to the user of the Atlas Advance Transfer Aid
over short distance transfers. It may also be used to assist the user rising from or lowering into a seated
position, provided a suitable risk assessment is completed. The Transfer Aid Safety Strap is also suitable
for transfers on and off the toilet.

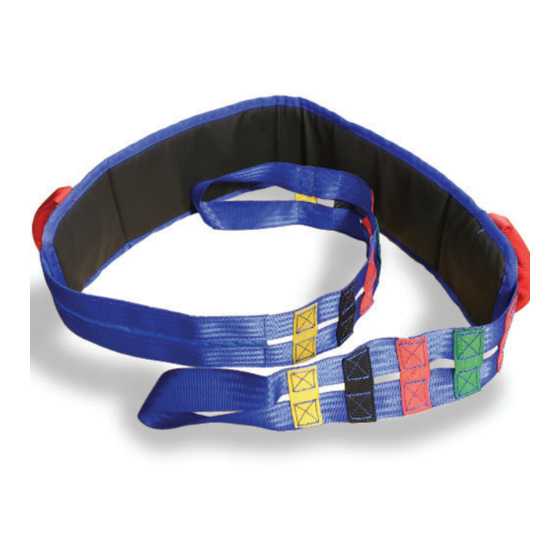

Figure 1: Transfer Aid Safety Strap

SAFETY

Warning: The maximum user weight must not be
more than 155Kg (24st).
NRS recommend the user wears the safety strap at
all times during transfers.
Always perform a risk assessment prior to use.
Particularly when using the safety strap to assist the
user when rising or lowering.
The user must be able to support their own weight
and maintain balance for prolonged periods of time.
Do not leave the user unattended when using the
product.
USER INSTRUCTIONS
ATLAS ADVANCE SAFETY STRAP
Transfer Aid Safety Strap - Small / Medium
Transfer Aid Safety Strap - Large / Extra Large
1
Maximum User Weight

USING THE SAFETY STRAP

1. Raising the user:
Position the transfer aid in front of the seated user
and apply the brakes.
Loop one side of the safety strap to the button
fastener on the handle frame.
Note: There are two button fastener heights. Choose
the height which gives the most comfortable strap
location for the user. The strap must be secured to
the button fasteners at the same height on each side.
24st
155kg
